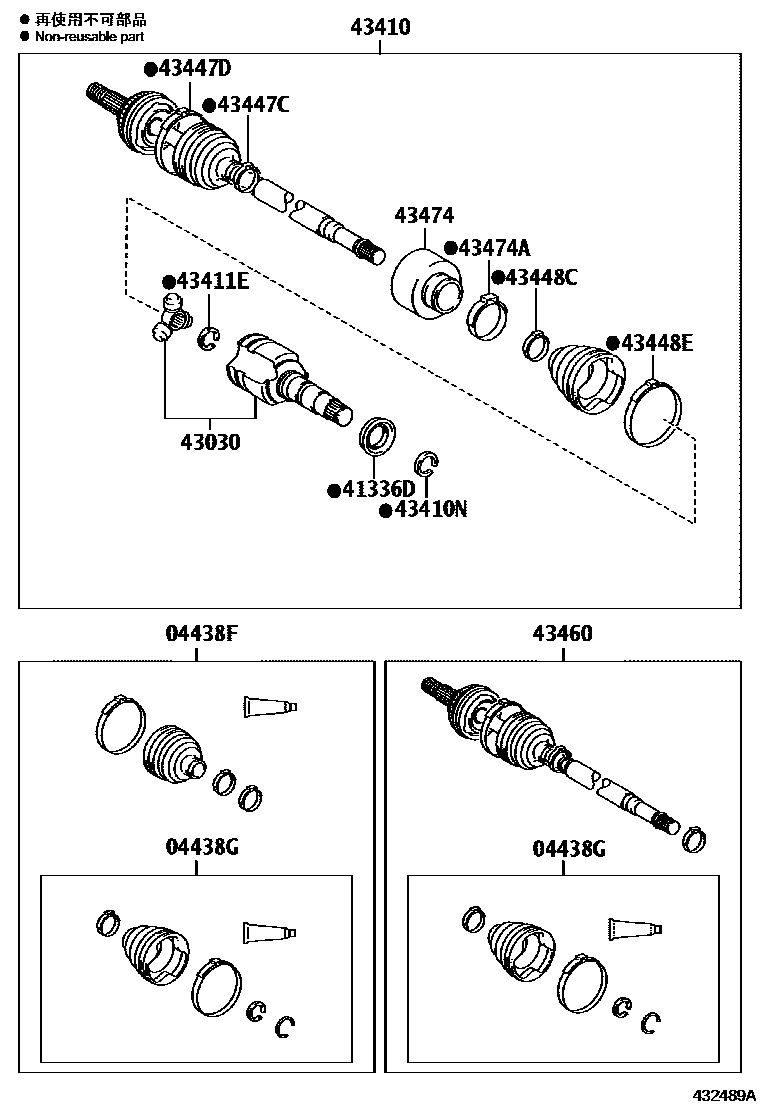

FRONT DRIVE SHAFT

0001 1RH 0002 1RH 0003 1LH 0004 1LH

04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

main04427-02520iZZE141..MTM200803

main04427-02530iZZE142..HTWC..VEN200803-201105

main04427-02550iZZE142..VEN200809-201101

main04427-02560iZRE143201003-201403

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04437-02360iZZE141..MTM200803

main04437-02370iZRE142;ZZE142..CNG200803-201105

main04437-02390iZZE142..VEN200809-201101

main04437-02400iZRE143201003-201403

41336DCOVER, FRONT DRIVE SHAFT DUST, RH

main41336-02080iZRE143201003-201403

main41336-12010iZZE141..MTM200803

main41336-12060iZRE142;ZZE142..CNG200803-201105

43030JOINT ASSY, FRONT DRIVE INBOARD, RH

main43030-02080iZRE143201003-201403

main43040-02170iZZE14#..ATM..(SEG,XLI)..HTWC;ZZE142..(CE,XEGLI,XEI)..(BZ,MXC)200803-201105

main43040-02180iZZE142..VEN200809-201101

main43040-02190iZZE141..MTM200803

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-02710iZZE142..CNG200803-201105

main43410-02710iZZE142..SEG..HTWC;ZZE142..(XEGLI,XEI)..BZ200803

UP GRADE PACKAGE

main43410-02720iZRE142..HTWCF200803-201403

LOW GRADE PACKAGE&ABS-WITHOUT

main43410-02730iZZE142..VEN200809-201101

main43410-02750iZZE141..MTM200803

main43410-02770iZRE143201003-201403

43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)

main43425-02300iZZE142..SEG..HTWCF200803-201105

main43425-02330iZZE142..VEN200809-201101

main43425-02350iZZE141..MTM200803

main43425-02390iZRE143201003-201403

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main43425-02290iZZE142..SEG..HTWC;ZZE14#..(CE,XEGLI,XEI,XLI)..(BZ,MXC)200803-201105

main43425-02320iZZE142..VEN200809-201101

main43425-02360iZRE143201003-201403

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-02560iZZE142..HTWC..VEN200803-201105

main42345-02620iZZE142..VEN200809-201101

main42345-02690iZRE143201003-201403

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-02570iZRE142;ZZE142..CNG200803-201105

main42345-02630iZZE142..VEN200809-201101

main42345-02700iZRE143201003-201403

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-02550iZRE142;ZZE142..CNG200803-201105

main42345-02610iZZE142..VEN200809-201101

main42345-02680iZRE143201003-201403

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-02350iZRE143201003-201403

main42345-02540iZZE142..CNG200803-201105

main42345-02600iZZE142..VEN200809-201101

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43460-09T40iZZE141..MTM200803

main43460-09T60iZZE142..XEGLI;ZZE142..MTM..HTWC..BZ200803-201403

LOW GRADE PACKAGE&ABS-WITHOUT

main43460-09T70iZZE142..CNG;ZRE142..GLI,SEG,XEI200803-201105

main43460-09T70iZZE142..SEG..HTWC;ZZE142..(XEGLI,XEI)..BZ200803

UP GRADE PACKAGE

main43460-09U20iZZE142..VEN200809-201101

main43470-8Z001iZRE143201003-201403

43474DAMPER, DRIVE SHAFT

main43474-02260iZRE142;ZZE142..CNG200803-201105

main43474-02270iZZE142..VEN200809-201101

main43474-02320iZRE143201003-201403

43474ACLAMP (FOR DRIVE SHAFT DAMPER SETTING)

main42345-02580iZZE142..SEG..HTWCF200803-201105

main42345-02640iZZE142..VEN200809-201101

14 parts on this diagram · 4 diagrams in section
