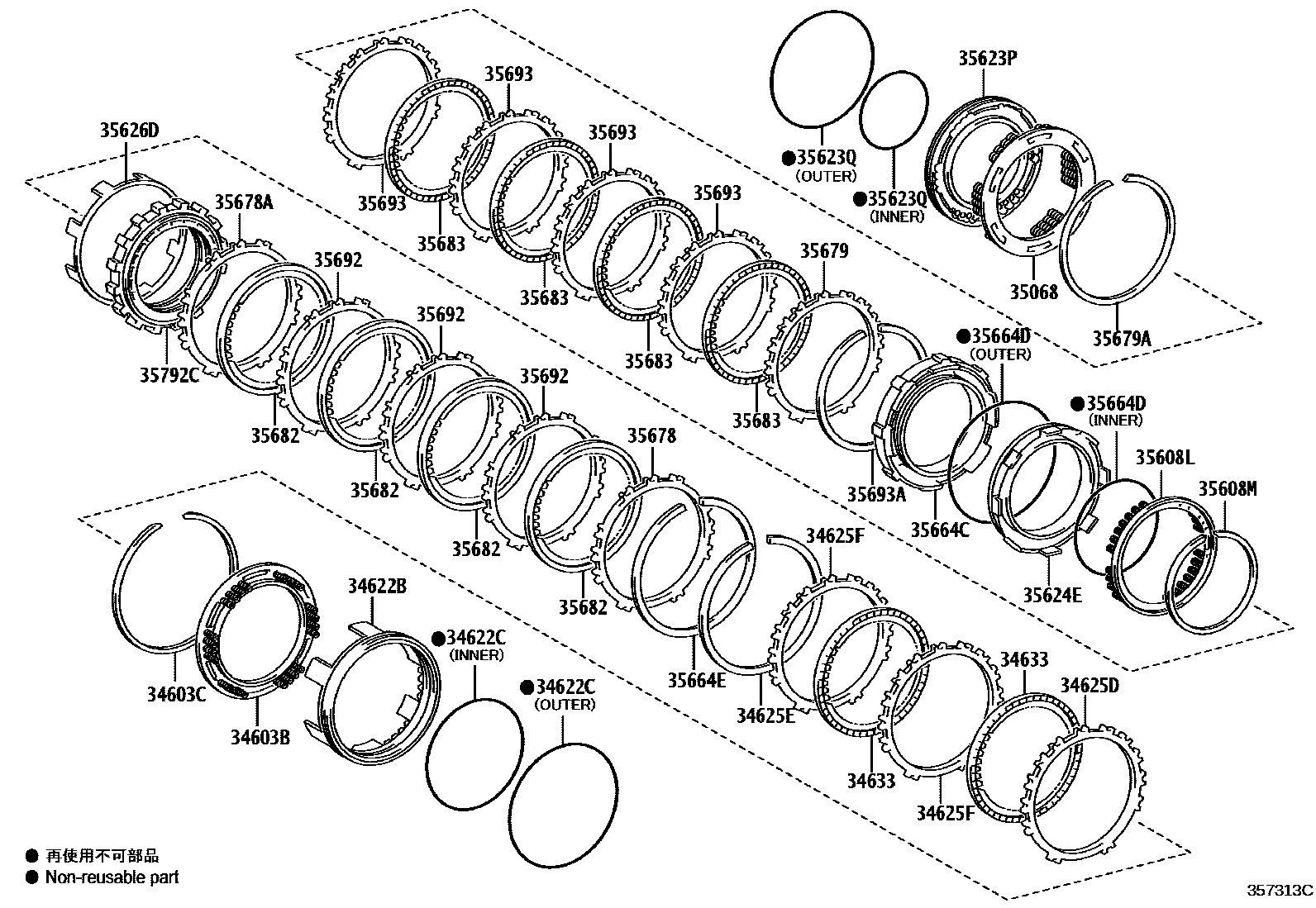

BRAKE NO.3, 1ST & REVERSE BRAKE (ATM)

0001 1U341E 0002 1U241E

34603BSPRING SUB-ASSY, OVERDRIVE BRAKE RETURN

main34603-52020iZZE142..SEG..HTWC;ZZE14#..ATM..(CE,GLI,XEGLI,XEI,XLI)..(HTWC,HTWCF)200803

34603CRING, HOLE SNAP(FOR OVERDRIVE BRAKE RETURN SPRING)

main90520-99055iZZE142..SEG..HTWCF200803-201003

34622BPISTON, 2ND COAST & OVERDRIVE BRAKE

main34622-52021iZZE142..SEG..HTWC;ZZE14#..ATM..(CE,GLI,XEGLI,XEI,XLI)..(HTWC,HTWCF)200803

34622CRING, O(FOR 2ND COAST & OVERDRIVE)

main90301-99121iZZE142..SEG..HTWCF200803-201003

INNER

main90301-99122iZRE142..ATM;ZZE142..ATM..CNG201103

OUTER

34625DFLANGE, 2ND COAST & OVERDRIVE BRAKE

main34625-52071iZRE142..ATM;ZZE142..ATM..CNG201103

T=4.2, MARK 5

main34625-52081iZZE142..SEG..HTWC;ZZE14#..ATM..(CE,GLI,XEGLI,XEI,XLI)..(HTWC,HTWCF)200803

T=4.4, MARK 6

main34625-52091iZZE142..SEG..HTWCF200803-201003

T=4.6, MARK 7

main34625-52110iZZE142..ATM..CNG200803-201105

T=4.0, MARK 4

34625ERING, HOLE SNAP(FOR 2ND COAST & OVERDRIVE BRAKE FLANGE)

main90520-99050iZZE142..SEG..HTWCF200803-201003

34625FFLANGE, 2ND COAST & OVERDRIVE BRAKE, NO.2

main34625-52060×2iZZE142..SEG..HTWCF200803-201003

34633DISC, 2ND COAST & OVERDRIVE BRAKE

main34633-52020×2iZZE142..SEG..HTWC;ZZE14#..ATM..(CE,GLI,XEGLI,XEI,XLI)..(HTWC,HTWCF)200803

35068SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN

main35068-21011iZRE143201003-201103

main35068-52030iZZE142..SEG..HTWC;ZZE14#..ATM..(CE,GLI,XEGLI,XEI,XLI)..(HTWC,HTWCF)200803

35608LSPRING SUB-ASSY, 2ND BRAKE PISTON RETURN

main35608-52020iZRE142..ATM;ZZE142..ATM..CNG201103

35608MRING, SNAP(FOR 2ND BRAKE PISTON RETURN SPRING)

main90520-99048iZZE142..ATM..CNG200803-201105

35623PPISTON, 1ST & REVERSE BRAKE, NO.2

main35623-52030iZRE142..ATM;ZZE142..ATM..CNG201103

35623QRING, O (FOR 1ST & REVERSE BRAKE PISTON NO.2)

main90301-98002iZZE142..SEG..HTWCF200803-201003

INNER

main90301-99117iZRE142..ATM;ZZE142..ATM..CNG201103

OUTER

35624EPISTON, 2ND BRAKE

main35624-52020iZZE142..SEG..HTWCF200803-201003

35626DSLEEVE, 2ND BRAKE PISTON

main35626-52010iZZE142..SEG..HTWCF200803-201003

35664CCYLINDER, 2ND BRAKE

main35664-52020iZZE142..SEG..HTWC;ZZE14#..ATM..(CE,GLI,XEGLI,XEI,XLI)..(HTWC,HTWCF)200803

35664DRING, O(FOR 2ND BRAKE CYLINDER)

main90301-99118iZZE142..SEG..HTWCF200803-201003

INNER

main90301-99119iZRE142..ATM;ZZE142..ATM..CNG201103

OUTER

35664ERING, HOLE SNAP(FOR 2ND BRAKE CYLINDER)

main90520-99050iZZE142..ATM..CNG200803-201105

35678FLANGE, BRAKE(FOR 2ND BRAKE)

main35678-52020iZRE142..ATM;ZZE142..ATM..CNG201103

T=3.0

main35678-52030iZRE142..ATM;ZZE142..ATM..CNG201103

T=3.2

main35678-52040iZZE142..ATM..CNG200803-201105

T=3.4

main35678-52050iZZE142..ATM..CNG200803-201105

T=3.6

35678AFLANGE, BRAKE, NO.1(FOR 2ND BRAKE)

main35678-52020iZZE142..ATM..CNG200803-201105

35679FLANGE, BRAKE(FOR 1ST & REVERSE)

main35679-52020iZRE142..ATM;ZZE142..ATM..CNG201103

T=3.4

main35679-52030iZZE142..ATM..CNG200803-201105

T=3.6

main35679-52040iZZE142..SEG..HTWC;ZZE14#..ATM..(CE,GLI,XEGLI,XEI,XLI)..(HTWC,HTWCF)200803

T=3.8

main35679-52050iZZE142..ATM..CNG200803-201105

T=4.0

35679ARING, HOLE SNAP(FOR BRAKE FLANGE)

main90520-99054iZZE142..SEG..HTWCF200803-201003

35682DISC, BRAKE(FOR 2ND BRAKE)

main35682-52020×4iZZE142..SEG..HTWC;ZZE14#..ATM..(CE,GLI,XEGLI,XEI,XLI)..(HTWC,HTWCF)200803

35683DISC, BRAKE(FOR 1ST & REVERSE)

main35683-52060×4iZZE142..SEG..HTWCF200803-201003

35692PLATE, BRAKE(FOR 2ND BRAKE)

main35692-52020×3iZZE142..SEG..HTWCF200803-201003

35693PLATE, BRAKE (FOR 1ST & REVERSE)

main35693-52030×4iZZE142..SEG..HTWCF200803-201003

35693ARING, SNAP(FOR 1ST & REVERSE PLATE)

main90520-99057iZZE142..SEG..HTWCF200803-201003

35792CCLUTCH, 1 WAY, NO.2

main35792-52021iZZE142..SEG..HTWCF200803-201003

28 parts on this diagram · 2 diagrams in section
