TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

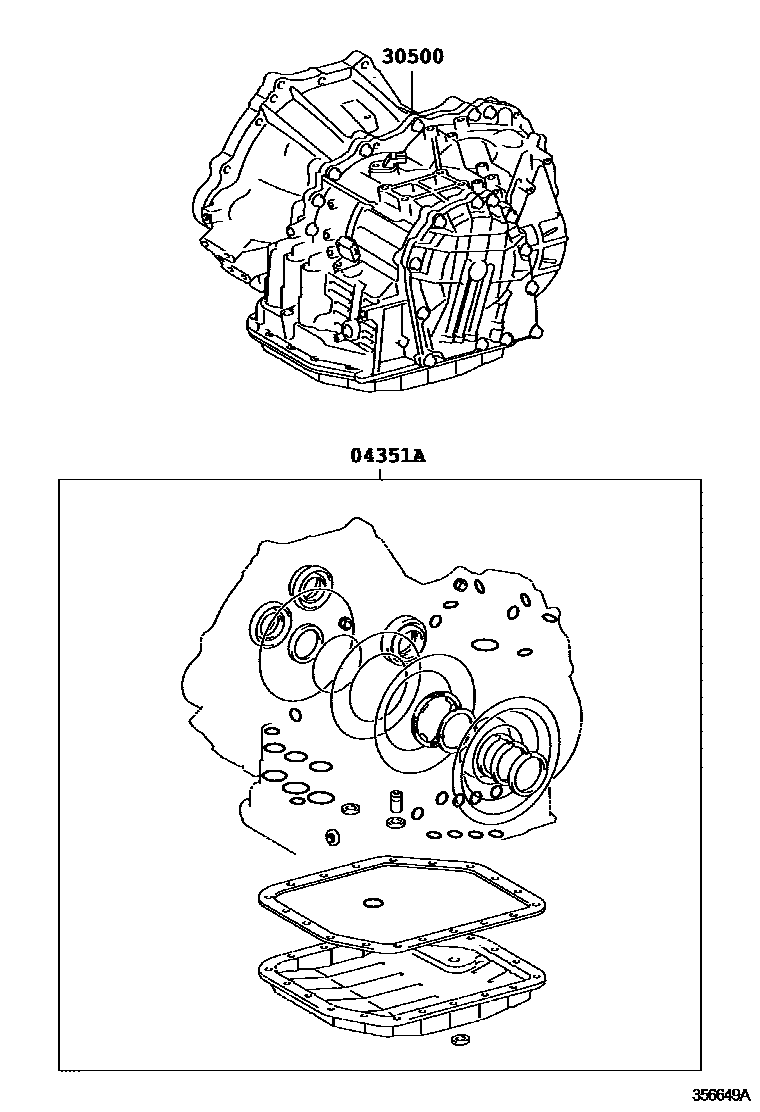

Parts diagram

04351AGASKET KIT, TRANSAXLE OVERHAUL(ATM)

main04351-12750i200803-200912

main04351-12751i201001

main04351-12821i201103-201201

main04351-12822i201201-201307

main04351-12823i201307

main04351-42051i201003-201103

main04351-48190i201103-201403

30500TRANSAXLE ASSY, AUTOMATIC

main30500-12B60i201003-201103

U241E

main30500-12C80i200803-200906

U341E

main30500-12D50i200906

U341E

main30500-12D60i201103-201403

U341E

main30500-12D70i201103-201403

U341E

2 parts on this diagram · 2 diagrams in section
