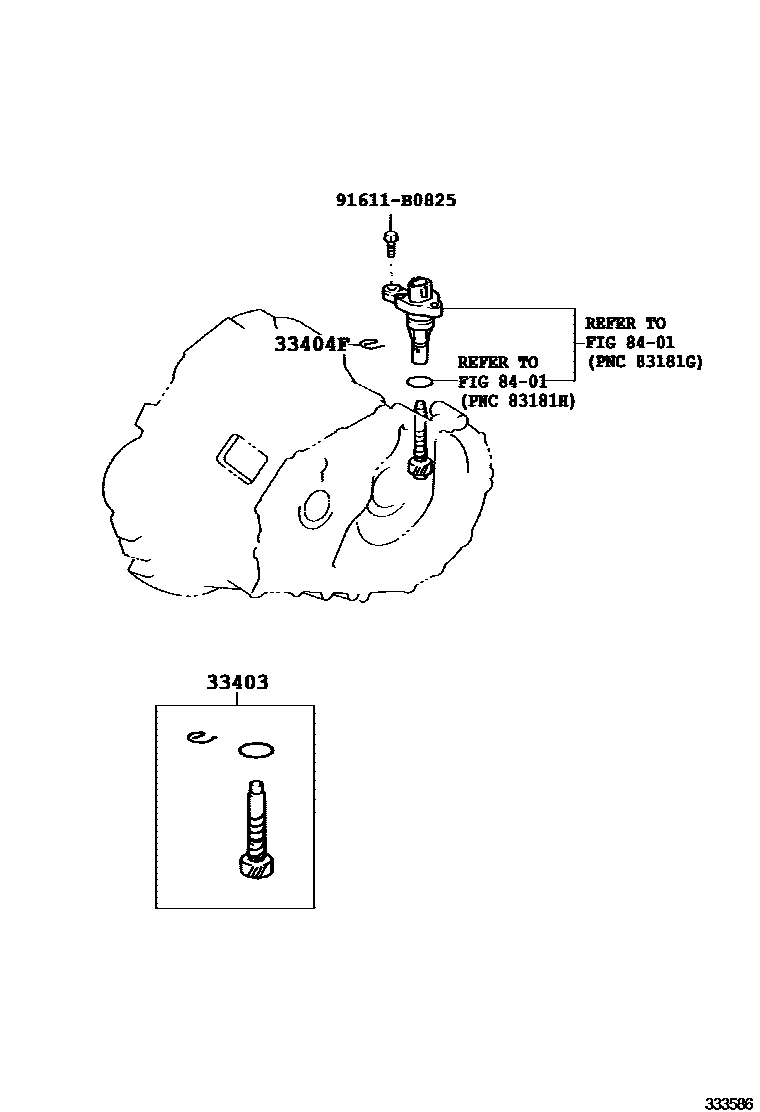

SPEEDOMETER DRIVEN GEAR (MTM)

33403GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)

main33403-29395iZZE14#..MTM..(CE,XLI); ZZE142..MTM..BZ200803

N=29,MARK 29:35; N=29,MARK 29:35,LOW GRADE PACKAGE&ABS-WITHOUT

33404FCLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90468-12005iZZE14#..MTM..(CE,XLI); ZZE142..MTM..BZ200803

LOW GRADE PACKAGE&ABS-WITHOUT

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

91611B0825

main91611-B0825

4 parts on this diagram · 1 diagram in section
