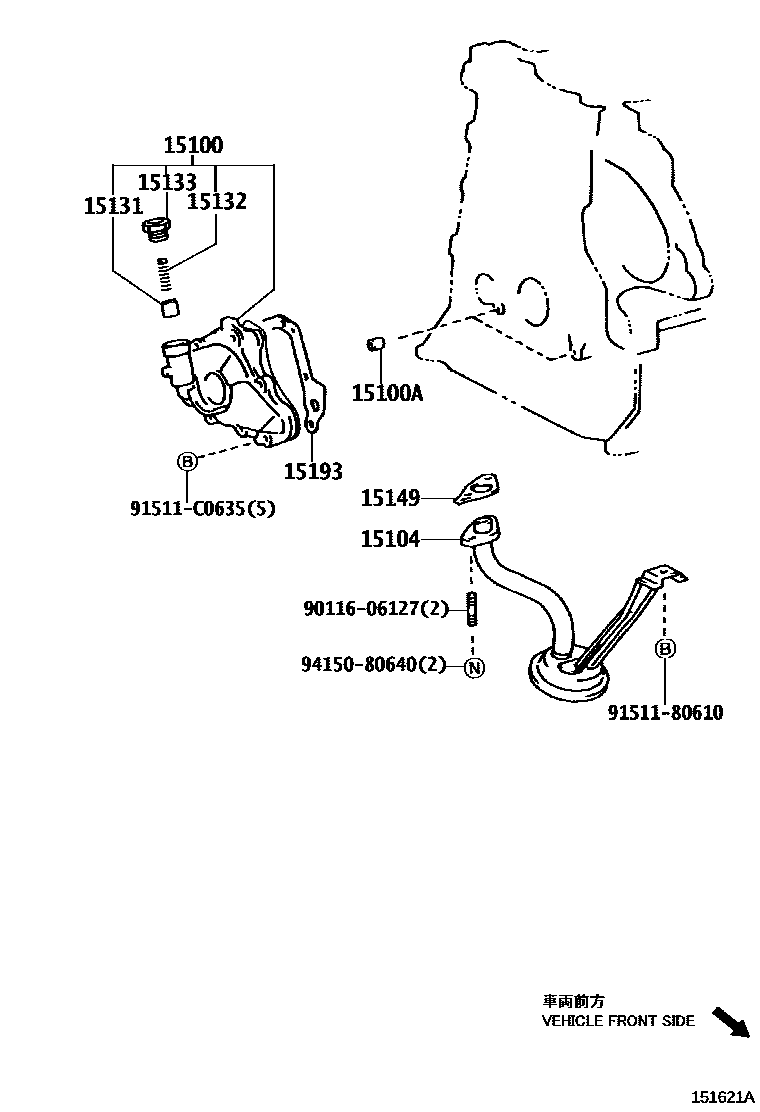

ENGINE OIL PUMP

0001 1 0002 1

15100PUMP ASSY, OIL

main15100-0D031i1ZZ#,3ZZFE..ZZE14#..BZ,MXC200803-200906

(L)

main15100-22041i1ZZFE..ZZE142..BZ,MXC;1ZZFBE,3ZZFE..ZZE14#..XEGLI,XLI200803

(J)

main15100-37030i2ZR#,3ZRFBE..ZRE14#201103-201403

15100APIN, RING(FOR OIL PUMP SET)

main90253-09003×2i1ZZFE..ZZE142..HTWC;1ZZFBE,3ZZFE..ZZE14#..XEGLI,XLI200803

15104STRAINER SUB-ASSY, OIL

main15104-0D030i1ZZFBE..ZZE142..SEG200803-201003

(L)

main15104-22023i1ZZFE..ZZE142..HTWC..VEN200809

15131VALVE, OIL PUMP RELIEF

main15131-03010i1ZZ#,3ZZFE..ZZE14#..BZ,MXC200803-200906

(L)

main15131-0A040i2ZR#,3ZRFBE..ZRE14#201103-201403

main15131-24010i1ZZFE..ZZE142..BZ,MXC;1ZZFBE,3ZZFE..ZZE14#..XEGLI,XLI200803

(J)

15132SPRING, OIL PUMP RELIEF VALVE

main15132-22040i1ZZFBE..ZZE142..SEG200803-201003

main15132-46060i3ZRFBE..ZRE143201003-201103

15133PLUG, OIL PUMP RELIEF VALVE

main15133-20010i1ZZFE..ZZE142201105

main15133-28020i2ZR#,3ZRFBE..ZRE14#201103-201403

15149GASKET, OIL STRAINER FLANGE

main15149-22010i1ZZFBE..ZZE142..SEG200803-201003

15193GASKET, OIL PUMP

main15197-22010i1ZZFBE..ZZE142..SEG200803-201003

9011606127

main90116-06127

9151180610

main91511-80610

91511C0635

main91511-C0635

9415080640

main94150-80640

12 parts on this diagram · 2 diagrams in section
