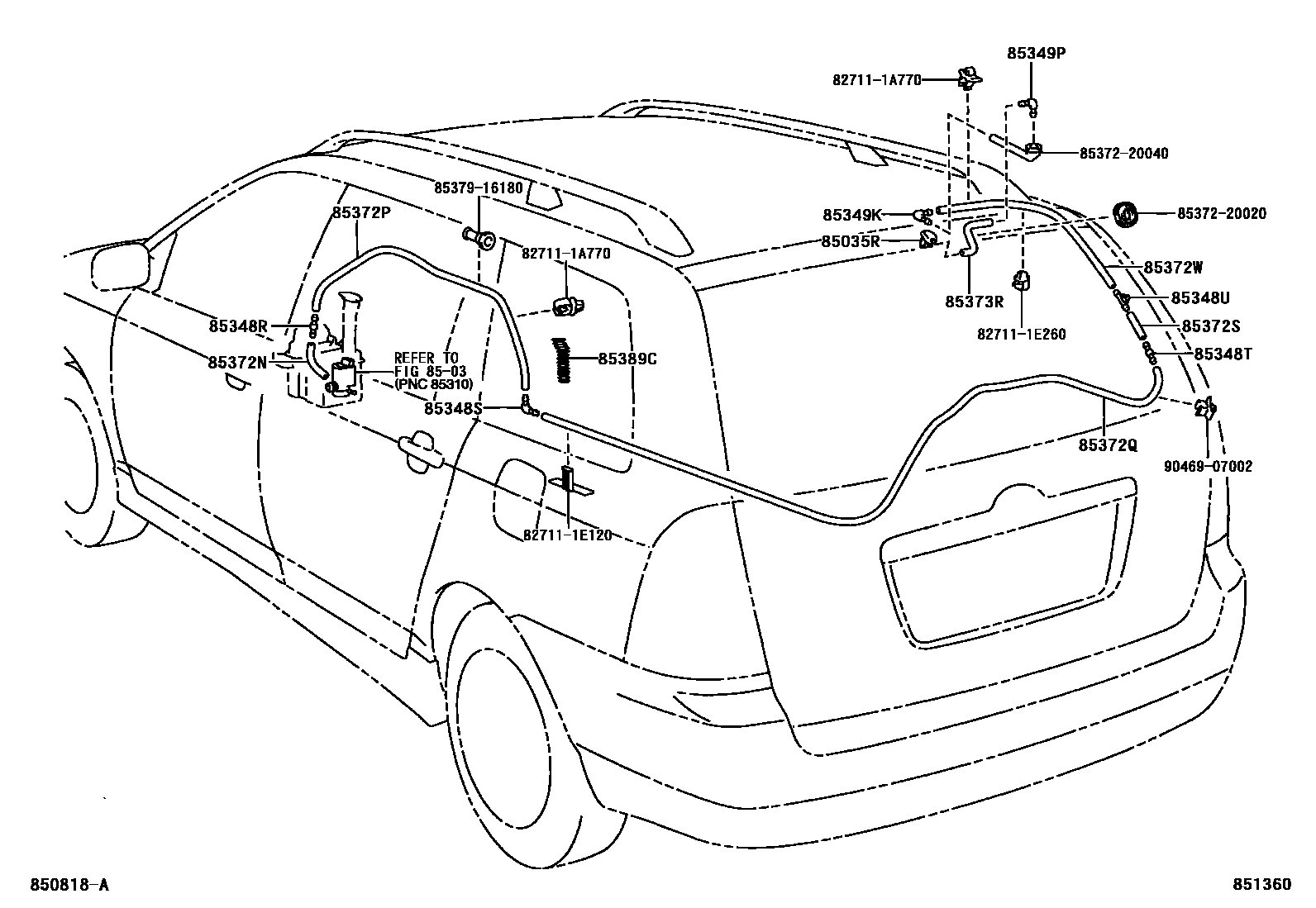

REAR WASHER

8503WINDSHIELD WASHER

→ Go to FIG 85-03

85035RNOZZLE SUB-ASSY, REAR WASHER

main85391-13010iZZE122..WGN200404-200705

85348RJOINT, REAR WASHER HOSE, NO.1

main85384-02040iZZE122..WGN200404-200705

85348SJOINT, REAR WASHER ELBOW, NO.1

main85355-20200iZZE122..WGN200404-200705

85348TJOINT, REAR WASHER HOSE, NO.2

main85384-02040iZZE122..WGN200404-200705

85348UJOINT, REAR WASHER HOSE, NO.3

main85375-20800iZZE122..WGN200404-200705

85349KJOINT, REAR WASHER ELBOW, NO.2

main85355-20200iZZE122..WGN200404-200705

85349PJOINT, REAR WASHER ELBOW, NO.3

main85355-20200iZZE122..WGN200404-200705

85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1

main85374-02210iZZE122..WGN200404-200705

L=70

85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2

main85374-02160iZZE122..WGN200404-200705

L=1470

85372QHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3

main85374-02190iZZE122..WGN200404-200705

L=3090

85372SHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4

main85374-02200iZZE122..WGN200404-200705

L=40

85372WHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.5

main90446-07001iZZE122..WGN200404-200705

L=1800(*H,L=640)

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

main90099-33299iZZE122..WGN200404-200705

L=1450(*H,L=230)

85389CPROTECTOR, WASHER

main85389-12010iZZE122..WGN200404-200705

827111A770WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1A770

827111E120WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E120

827111E260WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E260

8537220020HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main85372-20020

8537220040HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main85372-20040

8537916180JOINT

main85379-16180

9046907002

main90469-07002

22 parts on this diagram · 1 diagram in section
