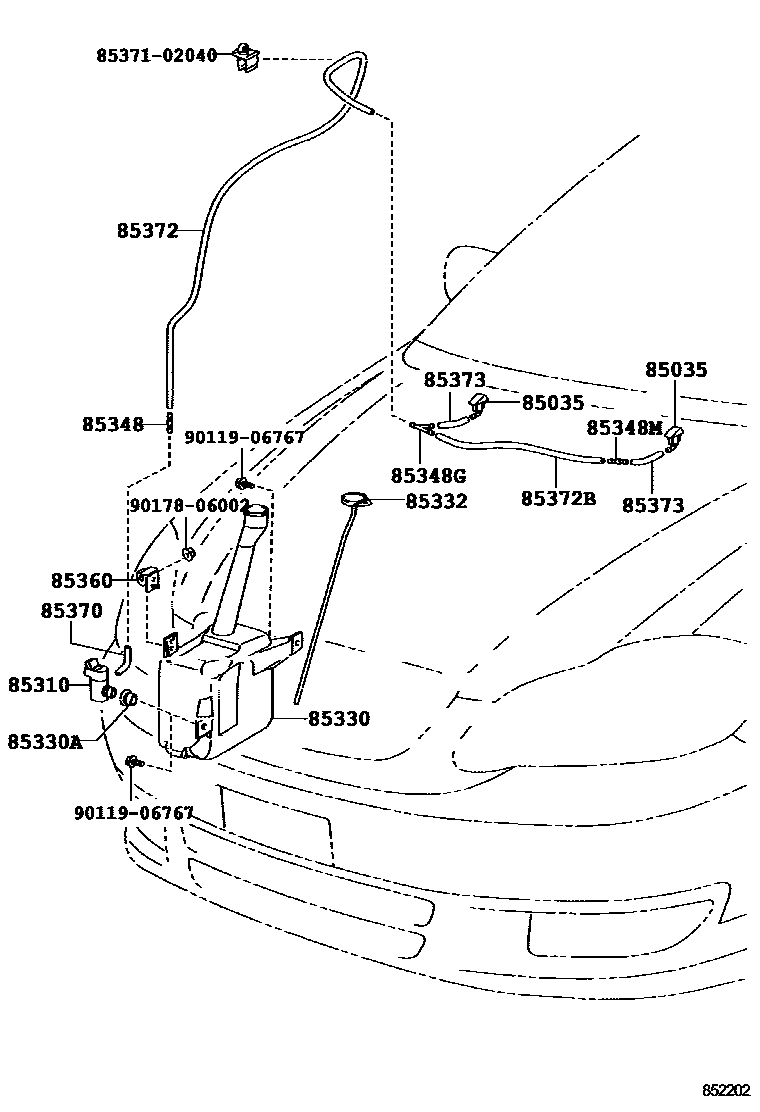

WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-44010×2iZZE122..WGN200404-200705

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-02010iCDE120,ZZE12#..BZ..SED..(DCR,HTWC)200205-200408

main85330-10290iZZE122..WGN200705

85330JAR ASSY, WINDSHIELD WASHER

main85315-02190iZZE122..HTWCF;ZZE122..WGN..HTWC;ZZE122..ATM..SEG..SED..HTWC;CDE120,ZZE12#..(GLI,XEI,XLI)..SED..(DCR,HTWC)200408

85330ABUSH, WINDSHIELD WASHER JAR

main85336-02130iCDE120,ZZE12#..BZ..SED..(DCR,HTWC)200205-200408

85332CAP, WINDSHIELD WASHER JAR

main85316-02130iCDE120,ZZE12#..BZ..SED..(DCR,HTWC)200205-200408

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85384-02020iCDE120,ZZE12#..BZ..SED..(DCR,HTWC)200205-200408

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85384-02030iZZE122..WGN200205-200705

85348MJOINT, WINDSHIELD WASHER HOSE, NO.3

main85384-02020iCDE120,ZZE12#..BZ..SED..(DCR,HTWC)200205-200408

85360BRACKET ASSY, WINDSHIELD WASHER

main85360-02010iCDE120,ZZE12#..BZ..SED..(DCR,HTWC)200205-200408

85370HOSE ASSY, WINDSHIELD WASHER

main85370-02150iCDE120,ZZE12#..BZ..SED..(DCR,HTWC)200205-200408

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main85374-02170iCDE120,ZZE12#..BZ..SED..(DCR,HTWC)200205-200408

L=1510

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main85374-02180iCDE120,ZZE12#..BZ..SED..(DCR,HTWC)200205-200408

L=480

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080×2iCDE120,ZZE12#..BZ..SED..(DCR,HTWC)200205-200408

L=1450(*H,L=90)

8537102040HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-02040

9011906767

main90119-06767

9017806002

main90178-06002

16 parts on this diagram · 1 diagram in section
