REAR WIPER

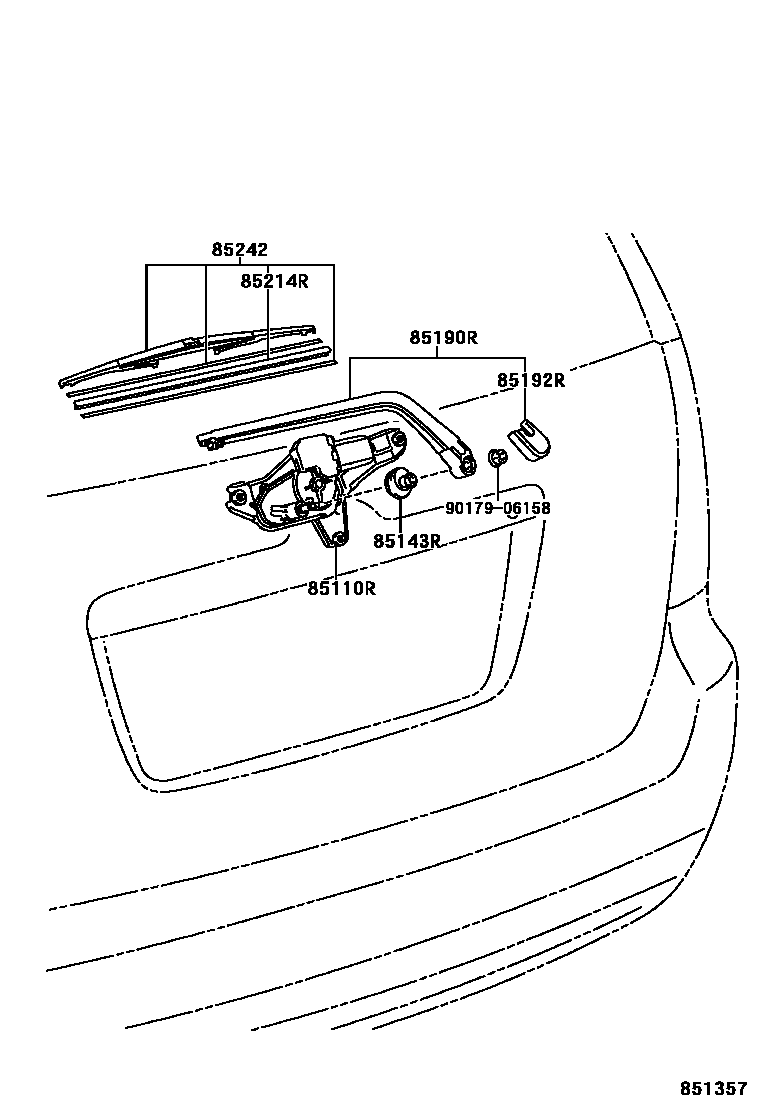

Parts diagram

85110RMOTOR ASSY, REAR WIPER

main85130-13150i200404-200705

85143RGROMMET, REAR WIPER MOTOR

main85143-52030i200404-200705

85190RARM ASSY, REAR WIPER

main85241-28070i200404-200705

85192RCOVER, REAR WIPER ARM

main85292-28030i200404-200705

85214RRUBBER, REAR WIPER

main85214-30280i200404-200705

85242BLADE, RR WIPER

main85242-63010i200404-200705

9017906158

main90179-06158

7 parts on this diagram · 1 diagram in section
