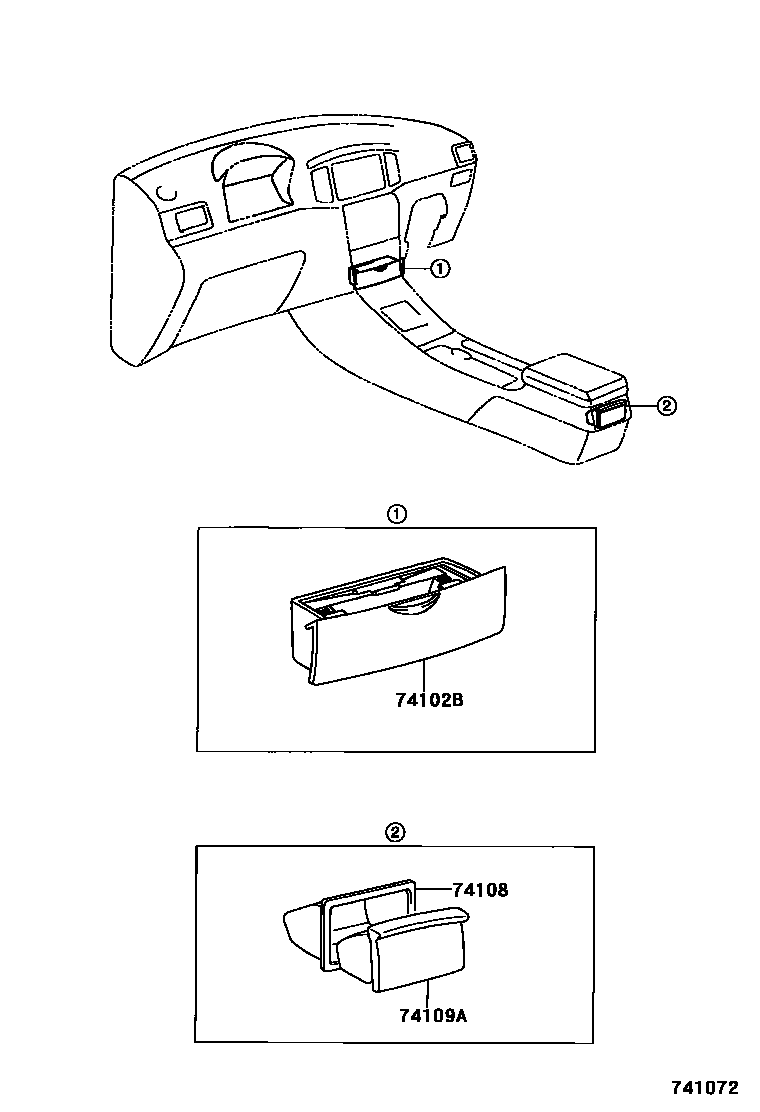

ASH RECEPTACLE

74102BBOX SUB-ASSY, FRONT ASH RECEPTACLE

main74102-02150-B0iCDE120,ZZE12#200205-200211

DARK GRAY,TRIM1#

main74102-02160-B0iCDE120,ZZE12#..BZ..SED..(DCR,HTWC)200212-200408

DARK GRAY,TRIM1#

main74102-02160-B1iCDE120;ZZE122..ATM..SEG200504-200508

W(LEATHER SEAT),SILVER ME.11SV09,TRIM17

main74102-02190-B0iCDE120;ZZE122..MTM..VEN;ZZE122..ATM..(GLI,SEG)..SED..HTWC200508

W(LEATHER SEAT),SILVER ME.11SV09,TRIM1#

74108RETAINER SUB-ASSY, REAR ASH RECEPTACLE

main74108-02030iCDE120,ZZE12#..BZ..SED..(DCR,HTWC)200205-200408

74109ABOX SUB-ASSY, ASH RECEPTACLE

main74109-02060-B0iCDE120,ZZE12#200205-200705

STONE,TRIM1#

3 parts on this diagram · 1 diagram in section
