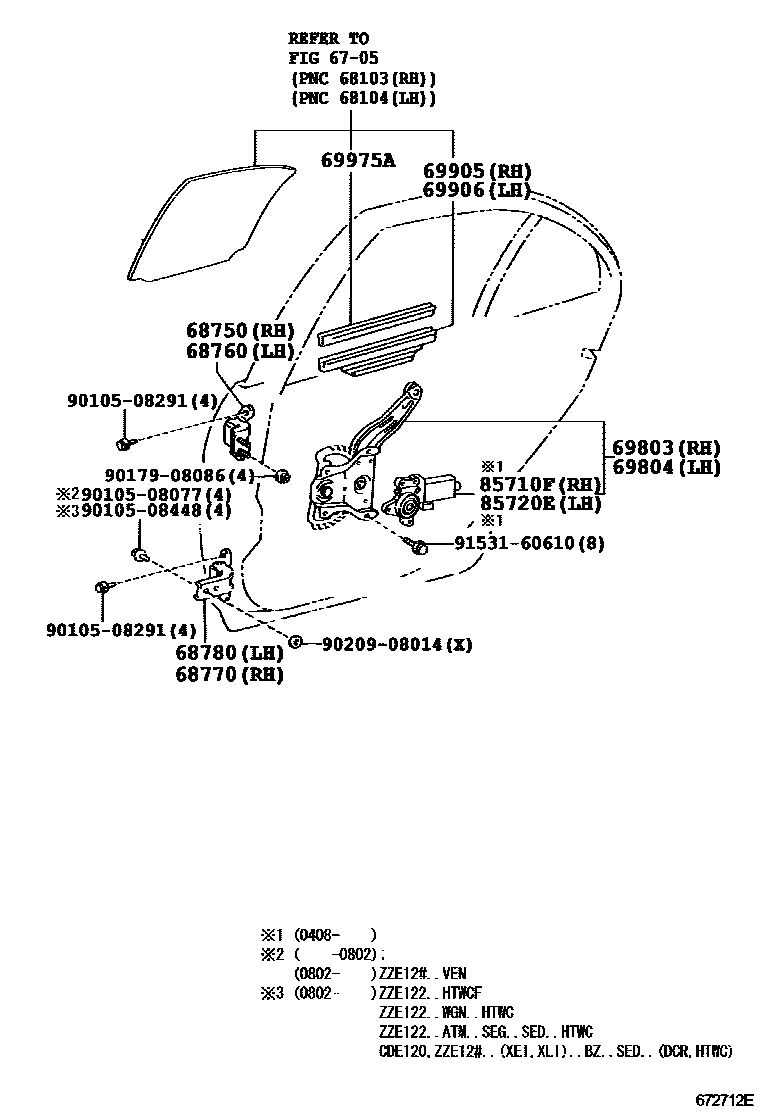

REAR DOOR WINDOW REGULATOR & HINGE

6705REAR DOOR PANEL & GLASS

→ Go to FIG 67-05

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-52011iCDE120,ZZE12#200408-200809

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-52011iCDE120,ZZE12#200205-200705

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-52030iCDE120,ZZE12#..SED200408-200610

main68770-52031iZZE122..WGN200610-200705

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-52030iCDE120,ZZE12#200205-200609

main68780-52031iZZE122..WGN200610-200705

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69830-02150iCDE120,ZZE12#..BZ..SED..(DCR,HTWC)200205-200408

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69840-02150iCDE120,ZZE12#..BZ..SED..(DCR,HTWC)200205-200408

69905BRACKET SUB-ASSY, REAR DOOR GLASS, RH

main69905-02030iZZE122..HTWCF;ZZE122..WGN..HTWC;ZZE122..ATM..SEG..SED..HTWC;CDE120,ZZE12#..(GLI,XEI,XLI)..SED..(DCR,HTWC)200408

69906BRACKET SUB-ASSY, REAR DOOR GLASS, LH

main69906-02030iZZE122..HTWCF;ZZE122..WGN..HTWC;ZZE122..ATM..SEG..SED..HTWC;CDE120,ZZE12#..(GLI,XEI,XLI)..SED..(DCR,HTWC)200408

69975AFILLER, REAR DOOR GLASS CHANNEL

main69975-02020×2iZZE122..HTWCF;ZZE122..WGN..HTWC;ZZE122..ATM..SEG..SED..HTWC;CDE120,ZZE12#..(GLI,XEI,XLI)..SED..(DCR,HTWC)200408

85710FMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-02100iZZE122..HTWCF;ZZE122..WGN..HTWC;ZZE122..ATM..SEG..SED..HTWC;CDE120,ZZE12#..(GLI,XEI,XLI)..SED..(DCR,HTWC)200408

85720EMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-02100iZZE122..HTWCF;ZZE122..WGN..HTWC;ZZE122..ATM..SEG..SED..HTWC;CDE120,ZZE12#..(GLI,XEI,XLI)..SED..(DCR,HTWC)200408

9010508077

main90105-08077

9010508291

main90105-08291

9010508448

main90105-08448

9017908086

main90179-08086

9020908014

main90209-08014

9153160610

main91531-60610

18 parts on this diagram · 1 diagram in section
