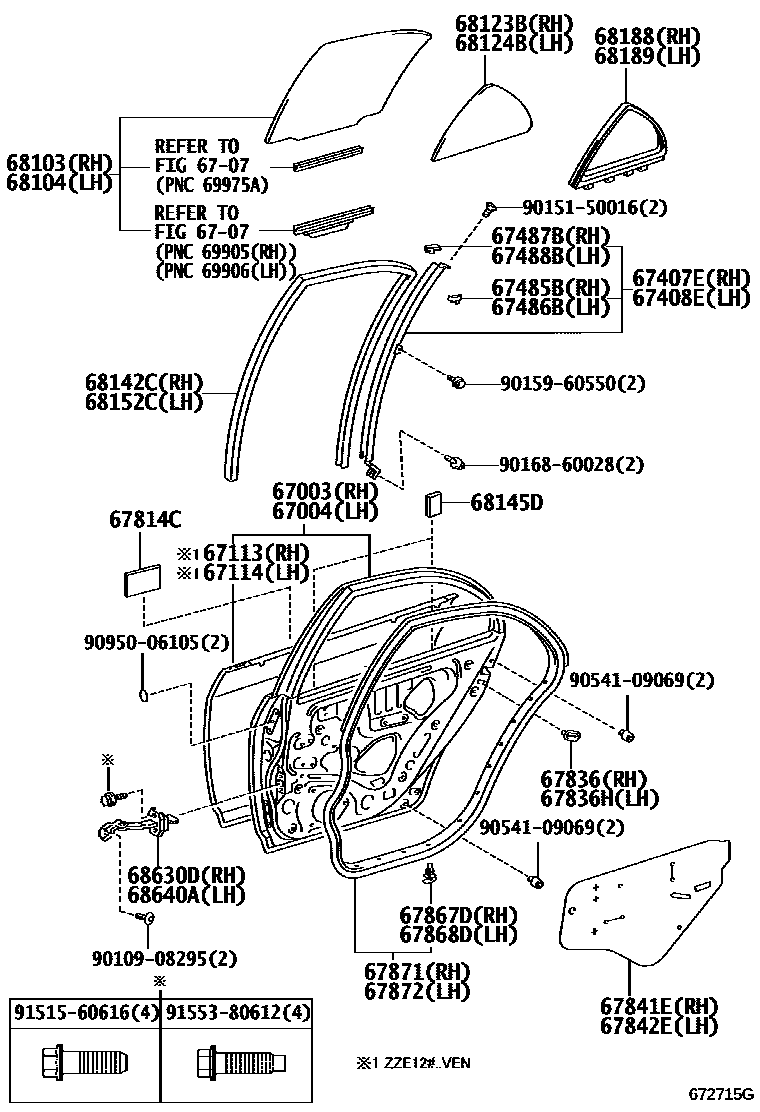

REAR DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR PANEL 0003 1DOOR TRIM

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-02230iZZE122..WGN200404-200705

main67003-1A060iCDE120,ZZE12#..SED200408-200809

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-02240iZZE122..WGN200705-200807

main67004-1A060iCDE120,ZZE12#..SED200408-200809

6707REAR DOOR WINDOW REGULATOR & HINGE

→ Go to FIG 67-07

67113PANEL, REAR DOOR, OUTER RH

main67113-12270iZZE12#..VEN200205-200508

67114PANEL, REAR DOOR, OUTER LH

main67114-12270iZZE12#..VEN200205-200508

67407EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH

main67407-12260iCDE120,ZZE12#..SED..(DCR,HTWC)200205-200508

main67407-13060iZZE122..WGN200404-200705

67408EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH

main67408-12260iCDE120,ZZE12#..SED..(DCR,HTWC)200205-200508

main67408-13060iZZE122..WGN200705

67485BSEAL, REAR DOOR DIVISION BAR, INSIDE, RH

main67485-53010iCDE120,ZZE12#..SED..(DCR,HTWC)200205-200508

67486BSEAL, REAR DOOR DIVISION BAR, INSIDE, LH

main67486-53010iCDE120,ZZE12#..SED..(DCR,HTWC)200205-200508

67487BSEAL, REAR DOOR DIVISION BAR, RH

main67487-53010iZZE122..SED..HTWCF;ZZE122..ATM..SEG..SED..HTWC;CDE120,ZZE12#..(GLI,XEI,XLI)..SED..(DCR,HTWC)200408

67488BSEAL, REAR DOOR DIVISION BAR, LH

main67488-53010iCDE120,ZZE12#..SED..(DCR,HTWC)200205-200508

67814CPACKING, DOOR PROTECTOR

main67817-47010×2iZZE122..HTWCF;ZZE122..WGN..HTWC;ZZE122..ATM..SEG..SED..HTWC;CDE120,ZZE12#..(GLI,XEI,XLI)..SED..(DCR,HTWC)200408

67836COVER, REAR DOOR LOCK CHILD PROTECTION, RH

main67836-12040iZZE122..HTWCF;ZZE122..WGN..HTWC;ZZE122..ATM..SEG..SED..HTWC;CDE120,ZZE12#..(GLI,XEI,XLI)..SED..(DCR,HTWC)200408

67836HCOVER, REAR DOOR LOCK CHILD PROTECTION, LH

main67836-12040iCDE120,ZZE12#200205-200705

67841ECOVER, REAR DOOR SERVICE HOLE, RH

main67841-02080iCDE120,ZZE12#..BZ..SED..(DCR,HTWC)200205-200408

67842ECOVER, REAR DOOR SERVICE HOLE, LH

main67842-02060iCDE120,ZZE12#..BZ..SED..(DCR,HTWC)200205-200408

67867DRETAINER, REAR DOOR WEATHERSTRIP, RH

main67867-12150×16iCDE120,ZZE12#..BZ..SED..(DCR,HTWC)200205-200408

67868DRETAINER, REAR DOOR WEATHERSTRIP, LH

main67867-12150×16iZZE12#..VEN200205-200508

67871WEATHERSTRIP, REAR DOOR, RH

main67871-12500iZZE122..SED..HTWCF;ZZE122..ATM..SEG..SED..HTWC;CDE120,ZZE12#..(GLI,XEI,XLI)..SED..(DCR,HTWC)200408

main67871-13140iZZE122..WGN200404-200705

67872WEATHERSTRIP, REAR DOOR, LH

main67872-12500iZZE122..SED..HTWCF;ZZE122..ATM..SEG..SED..HTWC;CDE120,ZZE12#..(GLI,XEI,XLI)..SED..(DCR,HTWC)200408

main67872-13130iZZE122..WGN200404-200705

68103GLASS SUB-ASSY, REAR DOOR, RH

main68103-02100iCDE120,ZZE12#..SED..(DCR,HTWC)200205-200508

*TT,T=3.1,GREEN

main68103-02170iZZE122..WGN200404-200705

*TEM,T=3.1,GREEN

68104GLASS SUB-ASSY, REAR DOOR, LH

main68104-02100iZZE122..SED..HTWCF;ZZE122..ATM..SEG..SED..HTWC;CDE120,ZZE12#..(GLI,XEI,XLI)..SED..(DCR,HTWC)200408

*TT,T=3.1,GREEN

main68104-02160iZZE122..WGN200705

*TEM,T=3.1,GREEN

68123BGLASS, REAR DOOR QUARTER WINDOW, RH

main68123-02090iZZE122..SED..HTWCF;ZZE122..ATM..SEG..SED..HTWC;CDE120,ZZE12#..(GLI,XEI,XLI)..SED..(DCR,HTWC)200408

*TT,T=3.1,GREEN

main68123-02140iZZE122..WGN200705

*TEM,T=3.1,GREEN

68124BGLASS, REAR DOOR QUARTER WINDOW, LH

main68124-02090iZZE122..SED..HTWCF;ZZE122..ATM..SEG..SED..HTWC;CDE120,ZZE12#..(GLI,XEI,XLI)..SED..(DCR,HTWC)200408

*TT,T=3.1,GREEN

main68124-02140iZZE122..WGN200404-200705

*TEM,T=3.1,GREEN

68142CRUN, REAR DOOR GLASS, RH

main68142-02050iCDE120,ZZE12#..SED..(DCR,HTWC)200205-200508

main68142-13110iZZE122..WGN200404-200705

68145DCUSHION, REAR DOOR WINDOW

main69759-12110×4iZZE122..HTWCF;ZZE122..WGN..HTWC;ZZE122..ATM..SEG..SED..HTWC;CDE120,ZZE12#..(GLI,XEI,XLI)..SED..(DCR,HTWC)200408

68152CRUN, REAR DOOR GLASS, LH

main68152-02050iZZE122..SED..HTWCF;ZZE122..ATM..SEG..SED..HTWC;CDE120,ZZE12#..(GLI,XEI,XLI)..SED..(DCR,HTWC)200408

main68152-13070iZZE122..WGN200404-200705

68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH

main68188-12280iZZE122..SED..HTWCF;ZZE122..ATM..SEG..SED..HTWC;CDE120,ZZE12#..(GLI,XEI,XLI)..SED..(DCR,HTWC)200408

main68188-13080iZZE122..WGN200705

68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH

main68189-12280iCDE120,ZZE12#..SED..(DCR,HTWC)200205-200508

main68189-13080iZZE122..WGN200404-200705

68630DCHECK ASSY, REAR DOOR, RH

main68630-02090iZZE122..HTWCF;ZZE122..WGN..HTWC;ZZE122..ATM..SEG..SED..HTWC;CDE120,ZZE12#..(XEI,XLI)..BZ..SED..(DCR,HTWC)200408

main68630-12070iZZE12#..VEN200205-200405

main68630-12071iZZE12#..VEN200405-200508

68640ACHECK ASSY, REAR DOOR, LH

main68640-02090iCDE120,ZZE12#..BZ..SED..(DCR,HTWC)200301-200408

main68640-12040iCDE120,ZZE12#..BZ200205-200301

main68640-12041iZZE12#..VEN200405-200508

9010908295

main90109-08295

9015150016

main90151-50016

9015960550

main90159-60550

9016860028

main90168-60028

9054109069

main90541-09069

9095006105

main90950-06105

9151560616

main91515-60616

9155380612

main91553-80612
