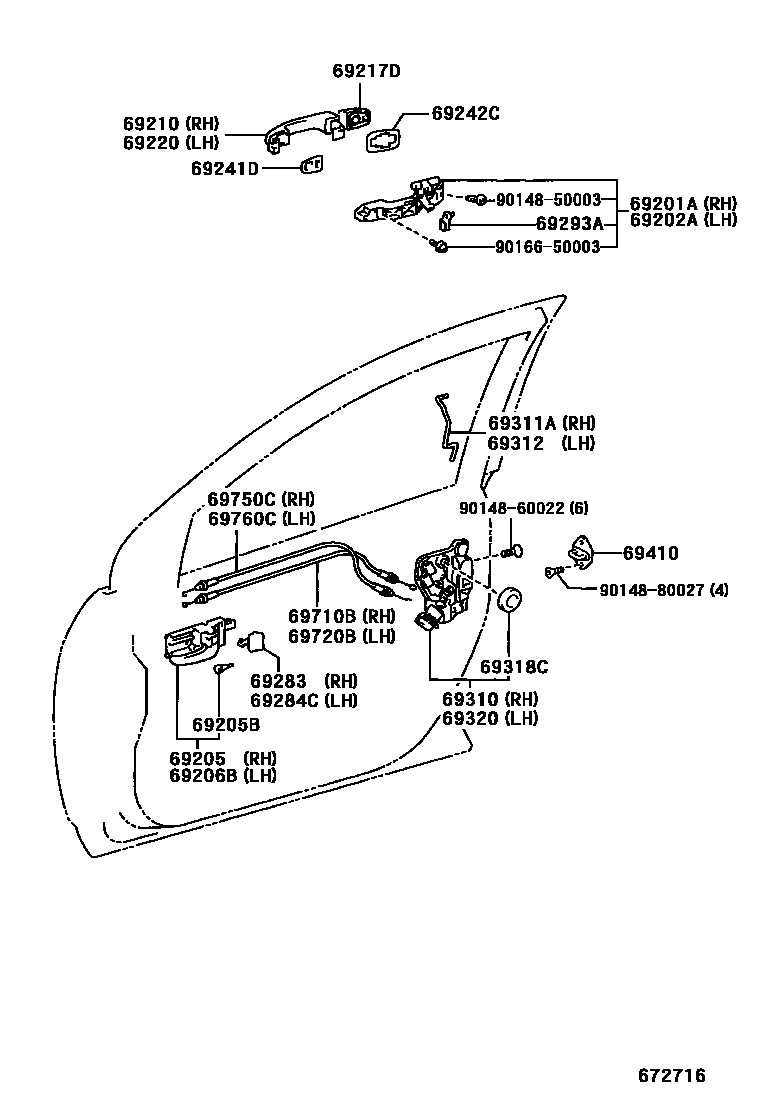

FRONT DOOR LOCK & HANDLE

69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH

main69201-02030iZZE12#..VEN200205-200705

69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH

main69202-02020iZZE122..WGN200205-200705

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-0D070-B1iCDE120,ZZE12#..XEI,XLI200303-200705

STONE,TRIM1#,(L)

sub69205-0D070

main69205-12190-B0iZZE122..SEG..HTWCF;ZZE122..SEG..WGN..HTWC200404-200807

STONE,TRIM1#

sub69205-12190

sub69205-0D080

main69205-12190-B0iCDE120;ZZE122..GLI,SEG200205-200809

CHROME PLATED,STONE,TRIM1#

sub69205-12190

sub69205-0D080

main69205-12200-B0iCDE120,ZZE12#..XEI,XLI200303-200705

STONE,TRIM1#,(J)

sub69205-12200

sub69205-0D070

main69205-12200-B0iCDE120,ZZE12#..XEI,XLI200205-200809

STONE,TRIM1#

sub69205-12200

sub69205-0D070

69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)

main90541-04027iZZE122..WGN200205-200705

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-0D070-B1iCDE120,ZZE12#..XEI,XLI200303-200705

STONE,TRIM1#,(L)

sub69206-0D070

main69206-12190-B0iCDE120;ZZE121..ATM..VEN;ZZE122..(GLI,SEG)..SED..HTWC200205-200809

CHROME PLATED,STONE,TRIM1#

sub69206-12190

sub69206-0D080

main69206-12190-B0iZZE122..SEG..HTWCF;ZZE122..SEG..WGN..HTWC200404-200807

STONE,TRIM1#

sub69206-12190

sub69206-0D080

main69206-12200-B0iCDE120,ZZE12#..XEI,XLI200205-200809

STONE,TRIM1#

sub69206-12200

sub69206-0D070

main69206-12200-B0iCDE120,ZZE12#..XEI,XLI200303-200705

STONE,TRIM1#,(J)

sub69206-12200

sub69206-0D070

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69211-02180iCDE120,ZZE12#200205-200809

PAINT REQ.

69217DCOVER, FRONT DOOR OUTSIDE HANDLE

main69217-02120iCDE120,ZZE12#200205-200809

LESS COLOR

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69211-02180iCDE120,ZZE12#200205-200809

PAINT REQ.

69241DPAD, FRONT DOOR OUTSIDE HANDLE, RH

main69241-02050iCDE120,ZZE12#..BZ..SED200205-200705

69242CPAD, FRONT DOOR OUTSIDE HANDLE, LH

main69242-02050iCDE120,ZZE12#..BZ..SED200205-200705

69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH

main69283-30040-B8iCDE120,ZZE12#200205-200809

STONE,TRIM1#

sub69283-30040

69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH

main69283-30040-B8iCDE120,ZZE12#200408-200809

STONE,TRIM1#

sub69283-30040

69293ASNAP, FRONT DOOR OUTSIDE HANDLE

main69293-12030iCDE120,ZZE12#..BZ..SED200205-200705

RH

main69293-12040iZZE122..HTWCF;ZZE122..WGN..HTWC;ZZE122..ATM..SEG..SED..HTWC;CDE120,ZZE12#..(GLI,XEI,XLI)..SED..(DCR,HTWC)200205-200705

LH

69310LOCK ASSY, FRONT DOOR, RH

main69030-02190iCDE120,ZZE12#..BZ200301-200705

main69030-13071iZZE12#..VEN200205-200508

69311AROD, FRONT DOOR LOCK OPEN, RH

main69311-02110iZZE122..WGN200301-200705

main69311-13020iZZE12#..VEN200205-200508

69312ROD, FRONT DOOR LOCK OPEN, LH

main69312-02110iZZE122..WGN200301-200705

main69312-13020iZZE12#..VEN200205-200508

69318CSEAL, DOOR LOCK WIRING HARNESS

main69318-51010iZZE122..WGN200205-200705

69320LOCK ASSY, FRONT DOOR, LH

main69040-02180iCDE120,ZZE12#..BZ200301-200705

main69040-33231iZZE12#..VEN200205-200610

sub69040-33232

main69040-33232iZZE12#..VEN200611

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-20110iCDE120,ZZE12#..BZ..SED..(DCR,HTWC)200205-200705

69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH

main69710-02090iCDE120,ZZE12#..BZ..SED..(DCR,HTWC)200301-200705

main69710-13020iCDE120,ZZE12#..BZ200205-200508

69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH

main69710-02090iCDE120,ZZE12#..BZ..SED..(DCR,HTWC)200301-200705

main69710-13020iZZE12#..VEN200205-200508

69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH

main69750-02090iCDE120,ZZE12#..BZ..SED..(DCR,HTWC)200301-200705

main69750-13030iCDE120,ZZE12#..BZ200205-200508

69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH

main69760-02090iCDE120,ZZE12#..BZ..SED..(DCR,HTWC)200301-200705

main69760-13010iCDE120,ZZE12#..BZ200205-200508

9014850003

main90148-50003

9014860022

main90148-60022

9014880027

main90148-80027

9016650003

main90166-50003

27 parts on this diagram · 1 diagram in section
