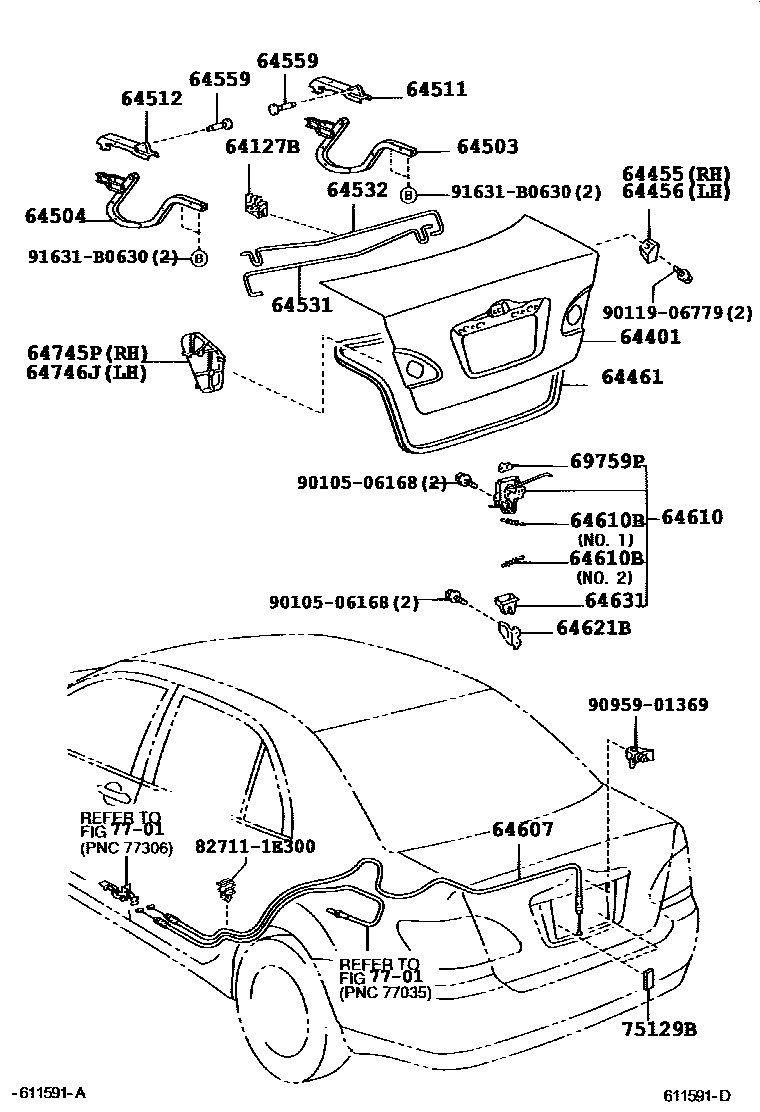

LUGGAGE COMPARTMENT DOOR & LOCK

64127BSUPPORT, LUGGAGE COMPARTMENT DOOR TORSION BAR

main64127-33041iCDE120,ZZE12#..SED200408-200809

64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR

main64401-02150iCDE120,ZZE12#..BZ..SED..(DCR,HTWC)200402-200408

main64401-02160iZZE12#..VEN200508-200809

main64401-1A860iZZE12#..BZ200205-200402

main64401-1A870iZZE12#..VEN200209-200402

64455CUSHION, LUGGAGE COMPARTMENT DOOR SIDE, RH

main64455-02010iCDE120,ZZE12#..SED200205-200508

64456CUSHION, LUGGAGE COMPARTMENT DOOR SIDE, LH

main64456-02010iCDE120,ZZE12#..SED200205-200508

64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR

main64461-02080iCDE120,ZZE12#..SED200205-200508

64503ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, RH

main64503-12150iCDE120,ZZE12#..SED200205-200508

64504ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, LH

main64503-12150iCDE120,ZZE12#..SED200205-200508

64511SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, RH

main64511-12270iCDE120,ZZE12#..SED200205-200508

64512SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, LH

main64511-12270iCDE120,ZZE12#..SED200205-200508

64531BAR, LUGGAGE DOOR HINGE TORSION, RH

main64531-02040iZZE122..SED..HTWCF;ZZE122..ATM..SEG..SED..HTWC;CDE120,ZZE12#..(GLI,XEI,XLI)..SED..(DCR,HTWC)200408

64532BAR, LUGGAGE DOOR HINGE TORSION, LH

main64532-02040iCDE120,ZZE12#..SED200205-200508

64559PIN, LUGGAGE DOOR HINGE

main64559-12040×2iCDE120,ZZE12#..SED200205-200508

64607CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL

main64607-02110iCDE120,ZZE12#..SED200205-200508

64610LOCK ASSY, LUGGAGE COMPARTMENT DOOR

main64610-02050iCDE120,ZZE12#..SED..(DCR,HTWC)200205-200508

64610BSPRING, TENSION(FOR LOCK)

main90506-05002iCDE120,ZZE12#..SED200205-200508

WD=0.55,CW=17.25,NO.1

main90506-06010iCDE120,ZZE12#..SED200205-200508

WD=0.55,CW=16.75,NO.2

64621BSTRIKER, LUGGAGE COMPARTMENT DOOR LOCK

main64621-12070iCDE120,ZZE12#..SED200205-200508

64631PROTECTOR, LUGGAGE DOOR LOCK

main64631-12050iCDE120,ZZE12#..SED200205-200508

64745PCOVER, REAR COMBINATION LAMP SERVICE, RH

main64745-02120iCDE120,ZZE12#..BZ..SED..(DCR,HTWC)200205-200408

64746JCOVER, REAR COMBINATION LAMP SERVICE, LH

main64746-02060iCDE120,ZZE12#..BZ..SED..(DCR,HTWC)200205-200408

69759PSNAP, DOOR LOCK CONTROL LINK

main69759-20040iCDE120,ZZE12#..SED200205-200508

75129BCUSHION, REAR LICENCE PLATE

main75129-13020×2iCDE120,ZZE12#..SED..(DCR,HTWC)200205-200408

7701FUEL TANK & TUBE

→ Go to FIG 77-01

827111E300WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E300

9010506168

main90105-06168

9011906779

main90119-06779

9095901369

main90959-01369

91631B0630

main91631-B0630

27 parts on this diagram · 1 diagram in section
