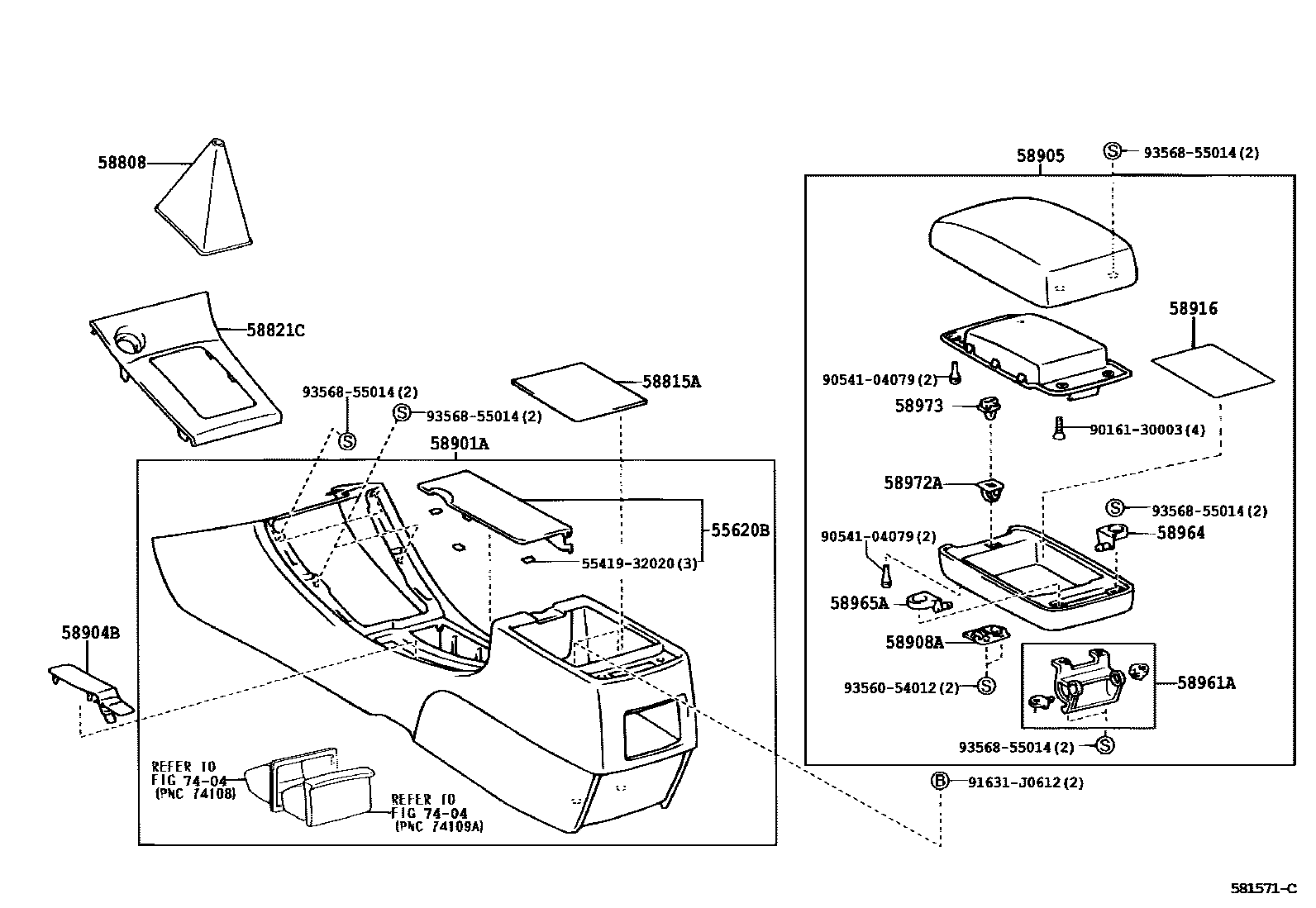

CONSOLE BOX & BRACKET

0001 1 0002 1

55620BHOLDER, INSTRUMENT PANEL CUP

main55620-02070-B0iZZE122..HTWCF;ZZE122..WGN..HTWC;ZZE122..ATM..SEG..SED..HTWC;CDE120,ZZE12#..(GLI,XEI,XLI)..SED..(DCR,HTWC)200205-200705

STONE,TRIM1#

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-02110-B0iCDE120,ZZE12#..MTM200205-200705

DK.GRAY,TRIM1#

sub58808-12180

58815ACARPET, CONSOLE BOX

main58815-02070iCDE120,ZZE12#..BZ..SED..(DCR,HTWC)200205-200705

58821CPANEL, CONSOLE, UPPER

main58821-02210-B0iZZE12#..XEI,XLI200205-200705

DARK GRAY,TRIM1#

main58821-02210-B0iCDE120;ZZE122..ATM..SEG200504-200508

DARK GRAY,TRIM17

main58821-02210-B1iCDE120;ZZE122..ATM..SEG200504-200508

SILVER ME.11SV09,TRIM17

main58821-02350-B0iCDE120;ZZE122..MTM..VEN;ZZE122..ATM..(GLI,SEG)200508

SILVER ME.11SV09,TRIM1#

58901ABOX SUB-ASSY, CONSOLE, REAR

main58901-02150-B0iCDE120,ZZE12#200205-200705

STONE,TRIM1#

58904BCOVER SUB-ASSY, PARKING BRAKE HOLE

main58904-02070-B0iCDE120,ZZE12#200205-200705

STONE,TRIM1#

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-02230-B1iCDE120,ZZE12#..(XEI,XLI)..BZ..SED200205-200408

STONE,TRIM1#

main58905-02230-B2iCDE120,ZZE12#..(XEI,XLI)..BZ200408

STONE,TRIM1#

main58905-02240-B0iCDE120;ZZE122..SEG200205-200803

LEATHER,STONE,TRIM1#

main58905-02240-B0iCDE120200408-200803

LEATHER PACKAGE,STONE,TRIM1#

main58905-02240-B0iZZE122..ATM..SEG200408

STONE,TRIM1#

main58905-02250-B0iZZE122..WGN200404-200705

STONE,TRIM1#

58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58908-33030iCDE120,ZZE12#..BZ..SED200205-200705

58916MAT, BOX BOTTOM

main58916-02080iZZE12#..VEN200205-200705

58961AHINGE, CONSOLE COMPARTMENT DOOR MALE

main58907-12050iCDE120,ZZE12#..BZ..SED200205-200705

58964STOPPER, CONSOLE COMPARTMENT DOOR, NO.1

main58964-20040iZZE12#..VEN200205-200705

58965ASTOPPER, CONSOLE COMPARTMENT DOOR, NO.2

main58965-20050iCDE120,ZZE12#..BZ..SED200205-200705

58972ABASE, CONSOLE COMPARTMENT DOOR LOCK

main58972-34010iCDE120,ZZE12#..BZ..SED200205-200705

58973PIN, CONSOLE COMPARTMENT DOOR LOCK

main58973-34010iCDE120,ZZE12#..BZ..SED200205-200705

7404

5541932020PLATE, SAFETY PAD

main55419-32020

9016130003

main90161-30003

9054104079

main90541-04079

91631J0612

main91631-J0612

9356054012

main93560-54012

9356855014

main93568-55014

21 parts on this diagram · 2 diagrams in section
