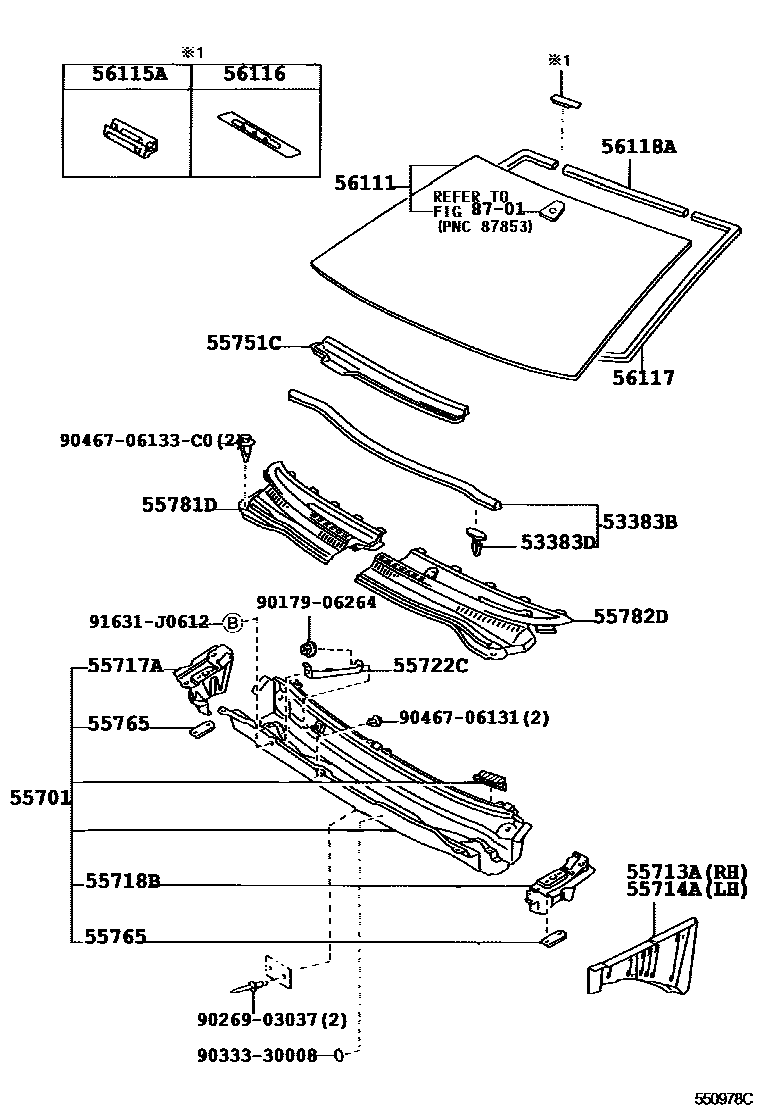

COWL PANEL & WINDSHIELD GLASS

53383BSEAL, HOOD TO COWL TOP

main53383-12140iZZE12#..VEN200205-200705

53383DCLIP(FOR HOOD TO COWL TOP SEAL)

main90467-08108iCDE120,ZZE12#..BZ..SED..(DCR,HTWC)200205-200705

55701PANEL SUB-ASSY, COWL

main55700-02390iCDE120,ZZE12#..BZ200705-200807

main55700-1A401iCDE120,ZZE12#200205-200809

55713APANEL, COWL TOP SIDE, RH

main55713-12110iCDE120,ZZE12#200205-200809

55714APANEL, COWL TOP SIDE, LH

main55714-12110iCDE120,ZZE12#200205-200809

55717APANEL, COWL TOP SIDE, INNER RH

main55717-12170iZZE12#..VEN200205-200705

55718BPANEL, COWL TOP SIDE, INNER LH

main55718-12120iCDE120,ZZE12#..BZ..SED..(DCR,HTWC)200205-200705

55722CBRACE, COWL TOP TO COWL, INNER

main55722-12040iCDE120,ZZE12#..BZ..SED..(DCR,HTWC)200205-200705

55751CSHIELD, COWL VENTILATOR SPLASH

main55751-02021iCDE120,ZZE12#..BZ..SED..(DCR,HTWC)200205-200705

55765BRACKET, HOOD DAMPER MOUNTING

main55765-44010iZZE12#..VEN200205-200705

55781DLOUVER, COWL TOP VENTILATOR, RH

main55708-02210iCDE120,ZZE12#..BZ..SED..(DCR,HTWC)200205-200705

55782DLOUVER, COWL TOP VENTILATOR, LH

main55709-02130iCDE120,ZZE12#..BZ..SED..(DCR,HTWC)200205-200705

56111GLASS, WINDSHIELD

main56101-02070iZZE12#..(XEI,XLI)..BZ..SED200205-200803

*LAM,T=4.96,GREEN

main56101-02080iZZE121..BZ200205-200705

*LAM,T=4.96,GREEN,W(TOP SHADE)

main56101-02160iZZE12#..VEN200209-200508

*LAM,T=4.96,GREEN

main56101-02240iZZE122..ATM..SEG200408

*LAM,T=4.96,GREEN

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30100iCDE120,ZZE12#..BZ..SED..(DCR,HTWC)200205-200705

56116SPACER, WINDSHIELD GLASS

main56116-22050iCDE120,ZZE12#..BZ..SED..(DCR,HTWC)200205-200705

56117DAM, FRONT PILLAR, OUTER

main56117-12240iCDE120,ZZE12#..SED200205-200508

main56117-47010iZZE122..WGN200404-200705

56118ADAM, WINDOW GLASS ADHESIVE, NO.2

main56117-12240iCDE120,ZZE12#..BZ..SED..(DCR,HTWC)200205-200705

*D,L=686

main56117-47010iZZE122..HTWCF;ZZE122..WGN..HTWC;ZZE122..ATM..SEG..SED..HTWC;CDE120,ZZE12#..(GLI,XEI,XLI)..SED..(DCR,HTWC)200408

*D,L=686

8701MIRROR

→ Go to FIG 87-01

9017906264

main90179-06264

9026903037

main90269-03037

9033330008

main90333-30008

9046706131

main90467-06131

9046706133C0

main90467-06133C0

91631J0612

main91631-J0612

24 parts on this diagram · 1 diagram in section
