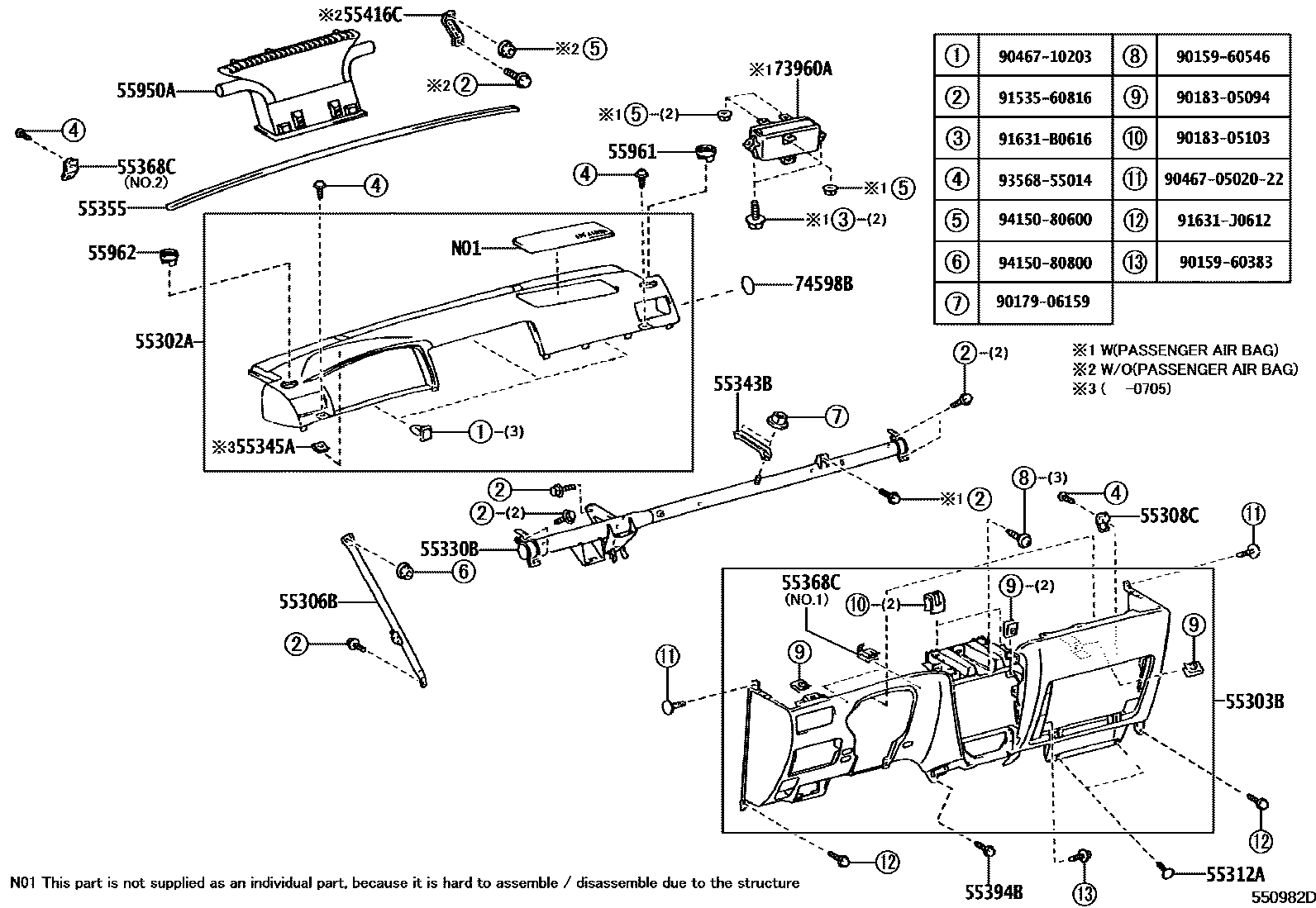

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1DRIVER SIDE 0003 1CENTER 0004 1PASSENGER SIDE

55302APANEL SUB-ASSY, INSTRUMENT, UPPER

main55302-02120-B0iZZE12#..(GLI,XEI,XLI)..SED200205-200508

DK.GRAY,TRIM1#

sub55302-12040

main55302-02130-B0iZZE122..WGN200404-200705

DK.GRAY,TRIM1#

sub55302-12030

55303BPANEL SUB-ASSY, INSTRUMENT, LOWER

main55303-02140-B0iCDE120,ZZE12#200205-200705

STONE,TRIM1#

sub55303-02080

sub55607-02030

55306BBRACE SUB-ASSY, INSTRUMENT PANEL TO COWL

main55306-12310iZZE12#..VEN200205-200508

55308CBRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER

main55308-12280iCDE120,ZZE12#..BZ..SED..(DCR,HTWC)200205-200408

55312ACLIP, INSTRUMENT PANEL

main90467-06089-C0×2iCDE120,ZZE12#200205-200705

BLACK,TRIM1#

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-02190iCDE120,ZZE12#..BZ..SED..(DCR,HTWC)200205-200408

55343BBRACE, INSTRUMENT PANEL TO COWL, CENTER

main55343-12060iCDE120,ZZE12#..BZ..SED..(DCR,HTWC)200205-200408

55345ACLIP, INSTRUMENT PANEL, NO.1

main55345-12060iZZE12#..VEN200205-200508

55355CUSHION, INSTRUMENT PANEL, NO.1

main55355-52012iZZE12#..VEN200205-200508

55368CBRACKET, METER MOUNTING

main55362-12050×2iZZE122..WGN200205-200705

NO.1

main55368-12090iCDE120,ZZE12#..BZ..SED200205-200408

NO.2

55394BBOLT, INSTRUMENT PANEL

main55394-12020iCDE120,ZZE12#..BZ..SED..(DCR,HTWC)200205-200408

55416CRETAINER, INSTRUMENT CLUSTER FINISH PANEL

main55416-12030iZZE12#..(XEI,XLI)..BZ..SED..HTWC200205-200408

55950ANOZZLE ASSY, DEFROSTER

main55950-12250iZZE12#..VEN200205-200508

55961NOZZLE, SIDE DEFROSTER, NO.1

main55961-02050iCDE120,ZZE12#..BZ..SED..(DCR,HTWC)200205-200408

55962NOZZLE, SIDE DEFROSTER, NO.2

main55961-02050iZZE122..WGN200205-200705

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-02060iZZE122..WGN200205-200705

sub73960-02061

main73960-12060iZZE12#..VEN200209-200508

sub73960-12500

74598BLABEL, PASSENGER AIRBAG CAUTION

main74598-02030iZZE122..WGN200205-200705

9015960383

main90159-60383

9015960546

main90159-60546

9017906159

main90179-06159

9018305094

main90183-05094

9018305103

main90183-05103

904670502022

main90467-0502022

9046710203

main90467-10203

9153560816

main91535-60816

91631B0616

main91631-B0616

91631J0612

main91631-J0612

9356855014

main93568-55014

9415080600

main94150-80600

9415080800

main94150-80800

30 parts on this diagram · 4 diagrams in section
