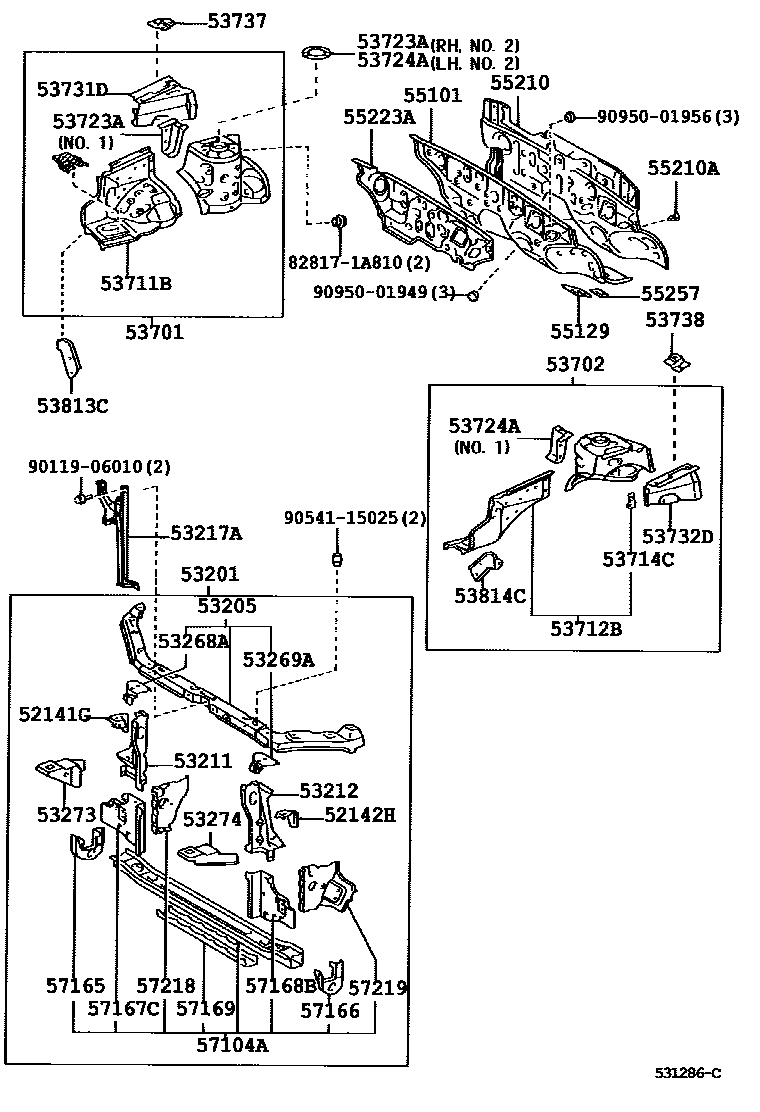

FRONT FENDER APRON & DASH PANEL

52141GSTAY, FRONT BUMPER, RH

main52141-12510iZZE122..HTWCF;ZZE122..WGN..HTWC;ZZE122..ATM..SEG..SED..HTWC;CDE120,ZZE12#..(GLI,XEI,XLI)..SED..(DCR,HTWC)200408

52142HSTAY, FRONT BUMPER, LH

main52142-12440iZZE122..WGN200205-200705

53201SUPPORT SUB-ASSY, RADIATOR

main53201-1A240iZZE12#..VEN200209-200508

main53201-1A250iZZE12#..BZ200408-200806

main53201-1A300iCDE120200205-200408

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53216-02904iZZE12#..VEN200209-200508

main53216-02905iCDE120,ZZE12#..BZ200205-200407

53211SUPPORT, RADIATOR, RH

main53211-12420iZZE122..HTWCF;ZZE122..WGN..HTWC;ZZE122..ATM..SEG..SED..HTWC;CDE120,ZZE12#..(GLI,XEI,XLI)..SED..(DCR,HTWC)200408

53212SUPPORT, RADIATOR, LH

main53212-12360iCDE120,ZZE12#..BZ..SED..(DCR,HTWC)200205-200408

53217ABRACE, HOOD LOCK SUPPORT

main53208-12500iCDE120,ZZE12#200205-200705

53268AREINFORCEMENT, RADIATOR MOUNTING, RH

main53268-12130iCDE120,ZZE12#..BZ..SED..(DCR,HTWC)200205-200408

53269AREINFORCEMENT, RADIATOR MOUNTING, LH

main53269-12110iCDE120,ZZE12#..BZ..SED..(DCR,HTWC)200205-200408

53273BRACKET, FRONT BUMPER ARM MOUNTING, RH

main53273-12060iCDE120,ZZE12#..BZ..SED..(DCR,HTWC)200205-200408

53274BRACKET, FRONT BUMPER ARM MOUNTING, LH

main53274-12060iZZE12#..VEN200205-200508

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-02901iZZE122..HTWCF;ZZE122..WGN..HTWC;ZZE122..ATM..SEG..SED..HTWC;CDE120,ZZE12#..(GLI,XEI,XLI)..SED..(DCR,HTWC)200408

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-02900iZZE122..HTWCF;ZZE122..WGN..HTWC;ZZE122..ATM..SEG..SED..HTWC;CDE120,ZZE12#..(GLI,XEI,XLI)..SED..(DCR,HTWC)200408

53711BAPRON, FRONT FENDER, FRONT RH

main53711-02904iCDE120,ZZE12#200205-200705

main53711-12230iCDE120,ZZE12#200205-200705

FOR SOUTH AFRICA

53712BAPRON, FRONT FENDER, FRONT LH

main53712-02904iCDE120,ZZE12#200205-200705

main53712-12190iCDE120,ZZE12#200205-200705

FOR SOUTH AFRICA

53714CEXTENSION, FRONT FENDER APRON, FRONT LH

main53714-12150iCDE120,ZZE12#..BZ..SED..(DCR,HTWC)200205-200408

53723AREINFORCEMENT, FRONT SPRING SUPPORT, RH

main53723-12080iZZE122..HTWCF;ZZE122..WGN..HTWC;ZZE122..ATM..SEG..SED..HTWC;CDE120,ZZE12#..(GLI,XEI,XLI)..SED..(DCR,HTWC)200408

NO.1

main53723-12090iCDE120,ZZE12#200205-200702

NO.2

main53723-12091iZZE122..HTWCF;ZZE122..WGN..HTWC;ZZE122..ATM..SEG..SED..HTWC;CDE120,ZZE12#..(GLI,XEI,XLI)..SED..(DCR,HTWC)200703

NO.2

53724AREINFORCEMENT, FRONT SPRING SUPPORT, LH

main53723-12090iZZE122..ATM..SEG;CDE120,ZZE12#..(GLI,XEI,XLI)..SED200408-200702

NO.2

main53723-12091iZZE122..WGN200703-200705

NO.2

main53724-12070iCDE120,ZZE12#200205-200705

NO.1

53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH

main53731-12160iZZE122..HTWCF;ZZE122..WGN..HTWC;ZZE122..ATM..SEG..SED..HTWC;CDE120,ZZE12#..(GLI,XEI,XLI)..SED..(DCR,HTWC)200408

53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH

main53732-12140iCDE120,ZZE12#..BZ..SED..(DCR,HTWC)200205-200408

53737PLATE, FRONT APRON TO COWL SIDE MEMBER, RH

main53737-12060iCDE120,ZZE12#..BZ..SED..(DCR,HTWC)200205-200408

53738PLATE, FRONT APRON TO COWL SIDE MEMBER, LH

main53738-12030iZZE122..HTWCF;ZZE122..WGN..HTWC;ZZE122..ATM..SEG..SED..HTWC;CDE120,ZZE12#..(GLI,XEI,XLI)..SED..(DCR,HTWC)200408

53813CEXTENSION, FRONT FENDER, RH

main53813-12090iZZE12#..VEN200205-200508

53814CEXTENSION, FRONT FENDER, LH

main53814-12040iCDE120,ZZE12#..BZ..SED..(DCR,HTWC)200205-200408

55101PANEL SUB-ASSY, DASH

main55101-02400iCDE120200205-200408

main55101-13111iZZE12#..MTM..SED200408-200809

main55101-19095iZZE12#..ATM200205-200705

main55101-19105iZZE122..MTM..WGN200705-200807

main55101-1E851iZZE12#..ATM..SED200408-200809

55129COVER, DASH PANEL HOLE

main55129-32030iZZE122..WGN200205-200705

RH

main55139-32010iCDE120,ZZE12#..BZ..SED..(DCR,HTWC)200205-200408

LH

55210INSULATOR ASSY, DASH PANEL

main55210-02120iZZE12#..VEN200205-200508

55210ACLIP

main90467-10005-C0×4iCDE120,ZZE12#200205-200705

BLACK,TRIM1#

55223AINSULATOR, DASH PANEL, OUTER

main55223-02150iZZE122..ATM..SEG;CDE120,ZZE12#..(GLI,XEI,XLI)..SED200408-200512

main55223-02151iZZE122..XEI..WGN..HTWC200601-200604

main55223-02152iZZE122..WGN200605-200705

55257COVER, DASH PANEL OPENING

main55257-32010×2iCDE120,ZZE12#..BZ..SED..(DCR,HTWC)200205-200408

57104AMEMBER SUB-ASSY, FRONT CROSS

main57104-12190iZZE12#..VEN200209-200508

main57104-12200iZZE12#..BZ..SED..HTWC200205-200408

main57104-12220iCDE120200408-200803

57165REINFORCEMENT, FRONT CROSSMEMBER, LOWER RH

main57165-12070iZZE122..SED..HTWCF;ZZE122..ATM..SEG..SED..HTWC;CDE120,ZZE12#..(GLI,XEI,XLI)..SED..(DCR,HTWC)200408

57166REINFORCEMENT, FRONT CROSSMEMBER, LOWER LH

main57166-12020iCDE120,ZZE12#..BZ..SED..(DCR,HTWC)200205-200408

57167CGUSSET, FRONT CROSSMEMBER SIDE, RH

main57167-12110iCDE120,ZZE12#..BZ..SED..(DCR,HTWC)200205-200408

57168BGUSSET, FRONT CROSSMEMBER SIDE, LH

main57168-12110iZZE12#..VEN200205-200508

57169MEMBER, FRONT FLOOR, FRONT RH

main57169-12020iZZE12#..VEN200209-200508

main57169-42030iCDE120,ZZE12#..BZ..SED..(DCR,HTWC)200205-200408

57218GUSSET, FRONT SIDE MEMBER, NO.1

main57218-12010iZZE122..WGN200205-200705

main57218-13010iCDE120200205-200408

57219GUSSET, FRONT SIDE MEMBER, NO.2

main57219-12010iCDE120,ZZE12#..BZ..SED..(DCR,HTWC)200205-200408

828171A810PROTECTOR, WIRING HARNESS, NO.1

main82817-1A810

9011906010

main90119-06010

9054115025

main90541-15025

9095001949

main90950-01949

9095001956

main90950-01956

43 parts on this diagram · 1 diagram in section
