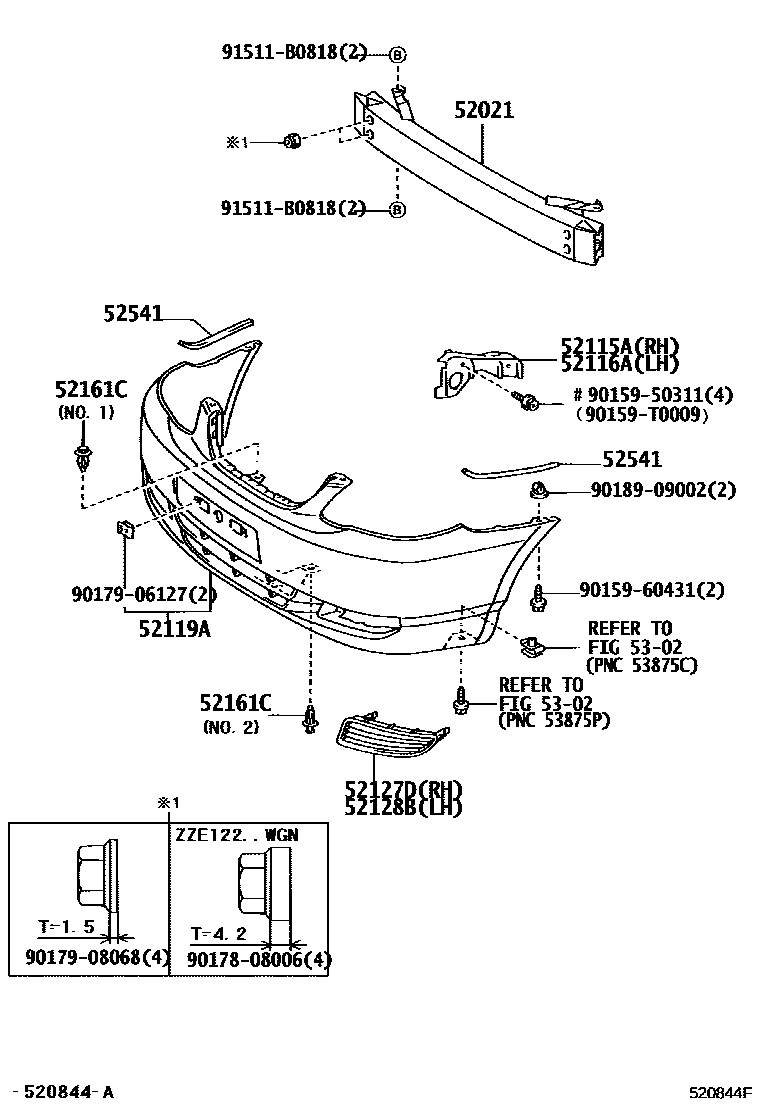

FRONT BUMPER & BUMPER STAY

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-02100iCDE120,ZZE12#..BZ..SED200408-200501

main52021-02101iZZE12#..SED200804-200809

main52021-02200iZZE122..WGN200804-200807

main52021-12200iCDE120,ZZE12#200205-200705

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-12400iCDE120,ZZE12#..BZ..SED200205-200408

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52116-12360iCDE120,ZZE12#..BZ..SED200205-200408

52119ACOVER, FRONT BUMPER

main52119-02290iCDE120,ZZE12#..BZ..SED200205-200408

PAINT REQ.

main52119-02951iZZE122..HTWCF;ZZE122..WGN..HTWC;ZZE122..ATM..SEG..SED..HTWC;CDE120,ZZE12#..(GLI,XEI,XLI)..SED..(DCR,HTWC)200408

PAINT REQ.

52127DCOVER, FRONT BUMPER HOLE, RH

main52127-02110iZZE12#..(GLI,XEI,XLI)..SED200408

main52127-20120iZZE12#..(XEI,XLI)..BZ..SED200205-200408

52128BCOVER, FRONT BUMPER HOLE, LH

main52128-02100iZZE12#..(GLI,XEI,XLI)..SED200408

main52128-20080iZZE12#..VEN;ZZE122..XEI..WGN..HTWC200205-200508

52161CPIECE, FRONT BUMPER

main52161-16010×2iZZE122..WGN200205-200705

NO.2

main90467-09093iZZE122..WGN200205-200705

NO.1

52541PROTECTOR, FRONT BUMPER

main52541-02010×2iZZE122..WGN200205-200705

5302HOOD & FRONT FENDER

→ Go to FIG 53-02

9015950311

main90159-50311

9015960431

main90159-60431

90159T0009

main90159-T0009

9017808006

main90178-08006

9017906127

main90179-06127

9017908068

main90179-08068

9018909002

main90189-09002

91511B0818

main91511-B0818

17 parts on this diagram · 1 diagram in section
