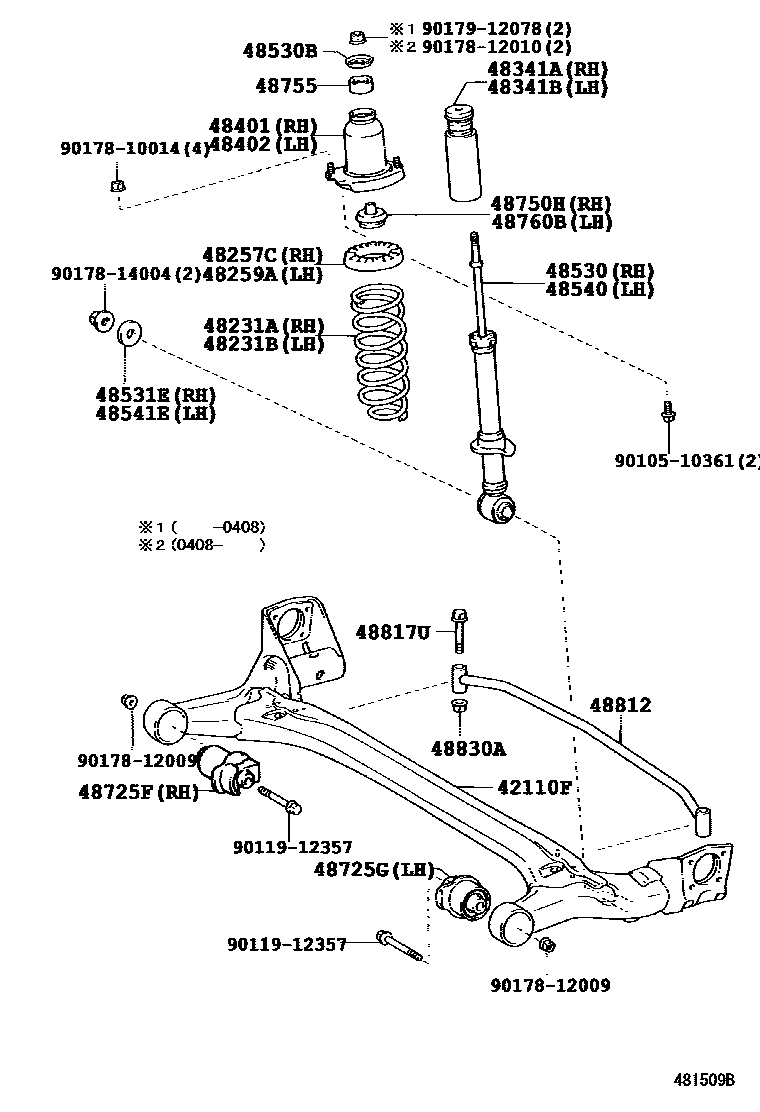

REAR SPRING & SHOCK ABSORBER

42110FBEAM ASSY, REAR AXLE

main42101-02140iCDE120,ZZE12#200205-200705

48231ASPRING, COIL, REAR RH

main48231-02351iZZE122..SED..HTWCF;ZZE122..ATM..SEG..SED..HTWC;ZZE12#..(GLI,XEI,XLI)..SED..HTWC200408

main48231-02411iCDE120200205-200408

main48231-02450iZZE122..WGN200705

48231BSPRING, COIL, REAR LH

main48231-02351iZZE12#..SED..HTWC200205-200508

main48231-02411iCDE120200408-200803

main48231-02450iZZE122..WGN200404-200705

48257CINSULATOR, REAR COIL SPRING, UPPER RH

main48257-02050iCDE120,ZZE12#..BZ..SED..(DCR,HTWC)200205-200408

48259AINSULATOR, REAR COIL SPRING, UPPER LH

main48257-02050iCDE120,ZZE12#..BZ..SED..(DCR,HTWC)200205-200408

48341ABUMPER, REAR SPRING, NO.1 RH

main48341-02050iZZE122..HTWCF;ZZE122..WGN..HTWC;ZZE122..ATM..SEG..SED..HTWC;CDE120,ZZE12#..(GLI,XEI,XLI)..SED..(DCR,HTWC)200408

48341BBUMPER, REAR SPRING, NO.1 LH

main48341-02050iCDE120,ZZE12#..BZ..SED..(DCR,HTWC)200205-200408

48401BRACKET SUB-ASSY, REAR SPRING, FRONT RH

main48401-32020iCDE120,ZZE12#..BZ..SED..(DCR,HTWC)200205-200408

48402BRACKET SUB-ASSY, REAR SPRING, FRONT LH

main48403-32010iCDE120,ZZE12#..BZ..SED..(DCR,HTWC)200205-200408

48530ABSORBER ASSY, SHOCK, REAR RH

main48530-02260iZZE12#200205-200401

MARK 48530-02260

main48530-02280iCDE120200205-200401

MARK 48530-02280

main48530-02360iZZE122..XEI..WGN..HTWC200404-200609

MARK 48530-02360

main48530-02410iZZE122..ATM..SEG;ZZE12#..(XEI,XLI)..BZ..SED200408-200610

MARK 48530-02410

main48530-02420iCDE120200408-200609

MARK 48530-02420

main48530-02740iZZE122..SED..HTWCF;ZZE122..ATM..SEG..SED..HTWC;ZZE12#..(XEI,XLI)..BZ..SED..HTWC200610-200803

MARK 48530-02740

main48530-02750iZZE122..WGN200610-200705

MARK 48530-02750

main48530-02760iCDE120200610-200803

MARK 48530-02760

48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1

main90948-03021×2iZZE122..HTWCF;ZZE122..WGN..HTWC;ZZE122..ATM..SEG..SED..HTWC;CDE120,ZZE12#..(GLI,XEI,XLI)..SED..(DCR,HTWC)200408

48531ERETAINER, CUSHION, NO.1(FOR REAR SHOCK ABSORBER RH)

main90560-14028iZZE122..HTWCF;ZZE122..WGN..HTWC;ZZE122..ATM..SEG..SED..HTWC;CDE120,ZZE12#..(GLI,XEI,XLI)..SED..(DCR,HTWC)200408

48540ABSORBER ASSY, SHOCK, REAR LH

main48530-02260iZZE12#200205-200401

MARK 48530-02260

main48530-02280iCDE120200205-200401

MARK 48530-02280

main48530-02360iZZE122..XEI..WGN..HTWC200404-200609

MARK 48530-02360

main48530-02410iZZE122..ATM..SEG;ZZE12#..(XEI,XLI)..BZ..SED200408-200610

MARK 48530-02410

main48530-02420iCDE120200408-200609

MARK 48530-02420

main48530-02740iZZE122..SED..HTWCF;ZZE122..ATM..SEG..SED..HTWC;ZZE12#..(XEI,XLI)..BZ..SED..HTWC200610-200803

MARK 48530-02740

main48530-02750iZZE122..WGN200705

MARK 48530-02750

main48530-02760iCDE120200610-200803

MARK 48530-02760

48541ERETAINER, CUSHION, NO.1(FOR REAR SHOCK ABSORBER LH)

main90560-14028iZZE122..HTWCF;ZZE122..WGN..HTWC;ZZE122..ATM..SEG..SED..HTWC;CDE120,ZZE12#..(GLI,XEI,XLI)..SED..(DCR,HTWC)200408

48725FBUSH, REAR AXLE CARRIER, RH

main48725-12570iCDE120,ZZE12#..BZ..SED..(DCR,HTWC)200205-200408

48725GBUSH, REAR AXLE CARRIER, LH

main48725-12570iZZE122..WGN200205-200705

48750HSUPPORT ASSY, REAR SUSPENSION, RH

main48750-02020iCDE120,ZZE12#..BZ..SED..(DCR,HTWC)200205-200408

48755SUPPORT, REAR SUSPENSION

main48755-02020×2iCDE120,ZZE12#..BZ..SED..(DCR,HTWC)200205-200408

48760BSUPPORT ASSY REAR SUSPENSION, LH

main48750-02020iCDE120,ZZE12#..BZ..SED..(DCR,HTWC)200205-200408

48812BAR, STABILIZER, REAR

main48812-02130iCDE120,ZZE12#..BZ..SED..(DCR,HTWC)200205-200408

48817UBOLT(FOR REAR STABILIZER)

main90105-14138×2iCDE120,ZZE12#..BZ..SED..(DCR,HTWC)200205-200408

48830ANUT(FOR REAR STABILIZER LINK)

main90179-14062×2iCDE120,ZZE12#..BZ..SED..(DCR,HTWC)200205-200408

9010510361

main90105-10361

9011912357

main90119-12357

9017810014

main90178-10014

9017812009

main90178-12009

9017812010

main90178-12010

9017814004

main90178-14004

9017912078

main90179-12078

29 parts on this diagram · 1 diagram in section
