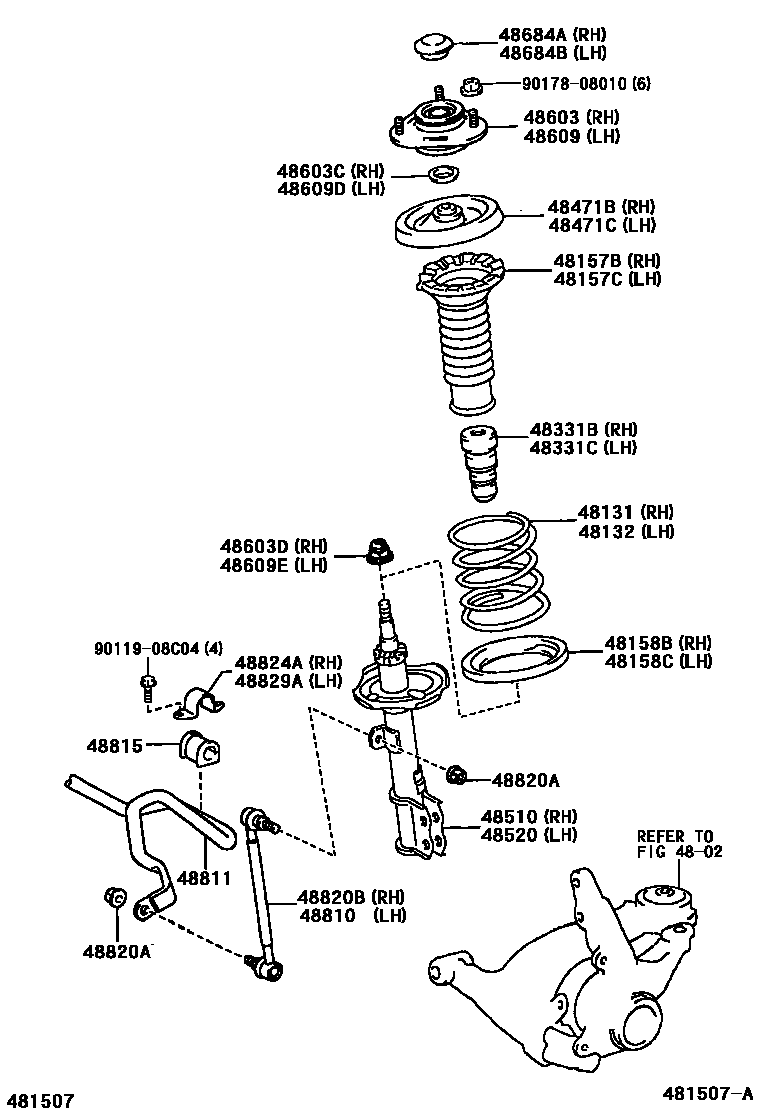

FRONT SPRING & SHOCK ABSORBER

4802

48131SPRING, FRONT COIL, RH

main48135-02070iZZE122..MTM..WGN200205-200803

main48135-02080iZZE12#..ATM..VEN;ZZE122..ATM..WGN200205-200803

main48135-02090iCDE120200205-200803

48132SPRING, FRONT COIL, LH

main48135-02070iZZE122..MTM..WGN200205-200803

main48135-02080iZZE12#..ATM..BZ..SED..HTWC200205-200803

main48135-02090iCDE120200205-200803

48157BINSULATOR, FRONT COIL SPRING, UPPER RH

main48157-02080iZZE12#..VEN200205-200803

48157CINSULATOR, FRONT COIL SPRING, UPPER LH

main48157-02080iZZE12#..VEN;ZZE122..WGN200205-200803

48158BINSULATOR, FRONT COIL SPRING, LOWER RH

main48158-02070iCDE120,ZZE12#..BZ..SED..(DCR,HTWC)200205-200803

48158CINSULATOR, FRONT COIL SPRING, LOWER LH

main48158-02070iCDE120,ZZE12#..BZ..SED..(DCR,HTWC)200205-200803

48331BBUMPER, FRONT SPRING, RH

main48331-02060iCDE120,ZZE12#..BZ..SED..(DCR,HTWC)200205-200803

48331CBUMPER, FRONT SPRING, LH

main48331-02060iCDE120,ZZE12#..BZ..SED..(DCR,HTWC)200205-200803

48471BSEAT, FRONT COIL SPRING, UPPER RH

main48044-02060iZZE122..SED..HTWCF;ZZE122..ATM..SEG..SED..HTWC;CDE120,ZZE12#..(XEI,XLI)..BZ..SED..(DCR,HTWC)200205-200803

sub48044-12100

main48044-12100iZZE12#..VEN200209-200508

48471CSEAT, FRONT COIL SPRING, UPPER LH

main48044-02060iZZE122..WGN200205-200803

sub48044-12100

main48044-12100iZZE12#..VEN200209-200508

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-02230iZZE12#..VEN200205-200610

MARK 48510-02230

main48510-02250iCDE120200205-200609

MARK 48510-02250

sub48510-02700

main48510-02690iZZE122..WGN200610-200803

MARK 48510-02690

main48510-02700iCDE120200610-200803

MARK 48510-02700

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-02230iZZE12#..VEN200205-200610

MARK 48520-02230

main48520-02250iCDE120200205-200609

MARK 48520-02250

sub48520-02700

main48520-02690iZZE122..SED..HTWCF;ZZE122..ATM..SEG..SED..HTWC;ZZE12#..(XEI,XLI)..BZ..SED..HTWC200610-200803

MARK 48520-02690

main48520-02700iCDE120200610-200803

MARK 48520-02700

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48609-12440iZZE12#..VEN200205-200803

48603CSEAL, DUST(FOR FRONT SUSPENSION SUPPORT RH)

main90303-22002iZZE12#..VEN200205-200803

48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)

main90179-14015iCDE120,ZZE12#..BZ..SED..(DCR,HTWC)200205-200803

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48609-12440iCDE120,ZZE12#..BZ..SED..(DCR,HTWC)200205-200803

48609DSEAL, DUST(FOR FRONT SUSPENSION SUPPORT LH)

main90303-22002iCDE120,ZZE12#..BZ..SED..(DCR,HTWC)200205-200803

48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)

main90179-14015iZZE12#..VEN200205-200803

48684ACOVER, FRONT SUSPENSION SUPPORT DUST, RH

main48684-12070iCDE120,ZZE12#200205-200212

main48684-52010iZZE12#..VEN200303-200803

48684BCOVER, FRONT SUSPENSION SUPPORT DUST, LH

main48684-12070iCDE120,ZZE12#200205-200212

main48684-52010iZZE122..WGN200303-200803

48810LINK ASSY, FRONT STABILIZER, LH

main48820-02040iCDE120,ZZE12#..BZ..SED..(DCR,HTWC)200205-200803

main48820-47010iZZE12#..VEN200209-200508

48811BAR, STABILIZER, FRONT

main48811-02100iZZE12#..BZ..SED..HTWC200205-200803

main48811-02130iCDE120200205-200803

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-12340iZZE12#..BZ..SED..HTWC200205-200803

main48815-13040iCDE120200205-200803

48820ANUT(FOR FRONT STABILIZER LINK)

main90179-12151iCDE120,ZZE12#..BZ..SED..(DCR,HTWC)200205-200803

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-02040iZZE122..SED..HTWCF;ZZE122..ATM..SEG..SED..HTWC;CDE120,ZZE12#..(XEI,XLI)..BZ..SED..(DCR,HTWC)200205-200803

main48820-47010iZZE12#..VEN200209-200508

48824ABRACKET, FRONT STABILIZER, NO.1 RH

main48824-02060iZZE122..WGN200802-200803

(L)

sub48824-26210

main48824-26210iZZE122..WGN200205-200802

main48824-26210iZZE122..SED..HTWCF;ZZE122..ATM..SEG..SED..HTWC;CDE120,ZZE12#..(XEI,XLI)..BZ..SED..(DCR,HTWC)200802-200803

(J)

48829ABRACKET, FRONT STABILIZER, NO.1 LH

main48824-02060iZZE122..WGN200802-200803

(L)

sub48824-26210

main48824-26210iZZE122..WGN200205-200802

main48824-26210iZZE122..WGN200802-200803

(J)

9011908C04

main90119-08C04

9017808010

main90178-08010

30 parts on this diagram · 1 diagram in section
