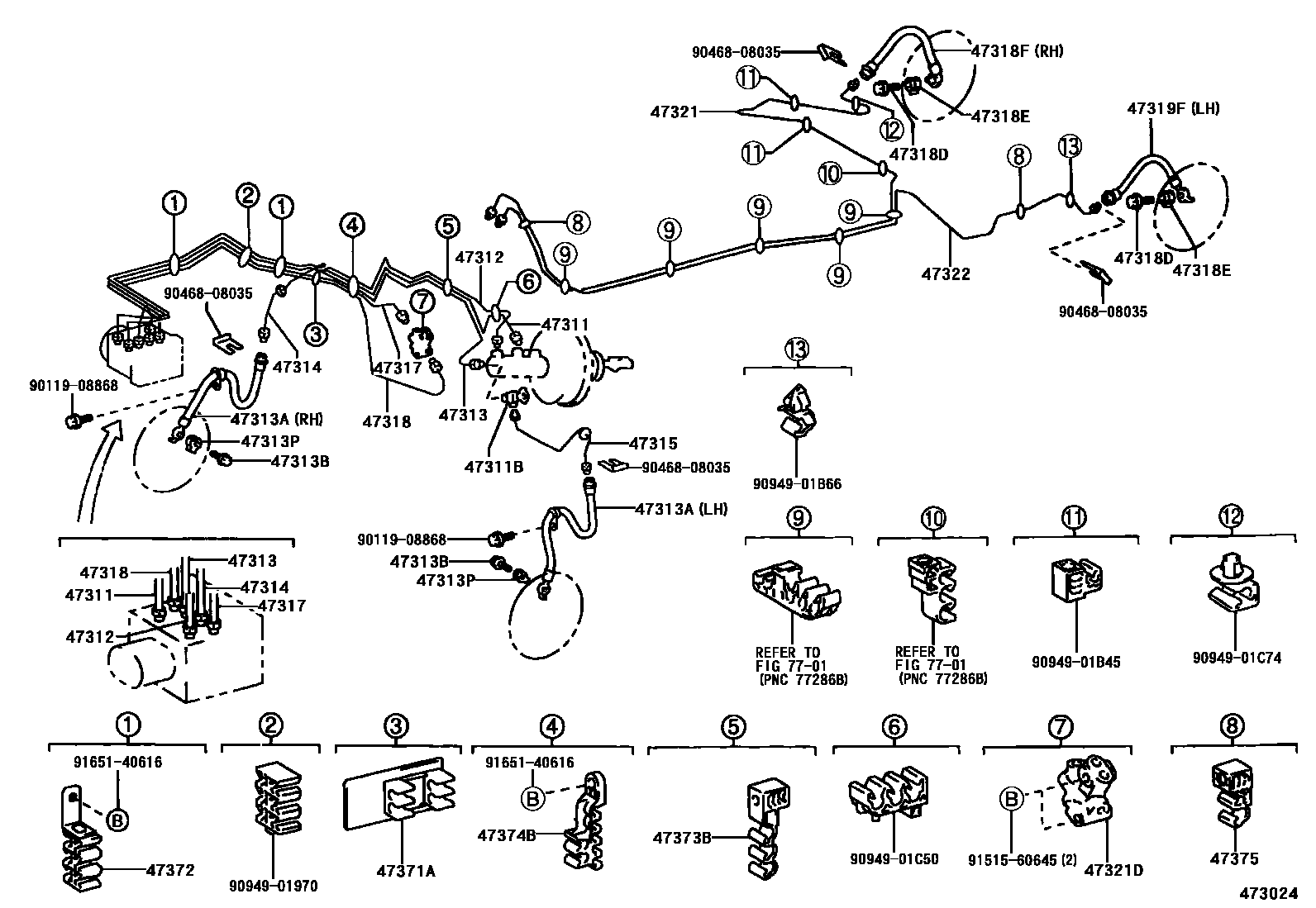

BRAKE TUBE & CLAMP

0001 1 0002 1 0003 1 0004 1W(ABS) 0005 1W(ABS)

47311TUBE, FRONT BRAKE, NO.1

main47311-02260iZZE12#..VEN200205-200508

W(ABS)

main47311-02270iZZE121..VEN200205-200508

main47311-02310iCDE120200205-200408

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90904-12051iCDE120200408-200803

47312TUBE, FRONT BRAKE, NO.2

main47312-02140iZZE12#..VEN200205-200508

W(ABS)

main47312-02150iZZE121..VEN200408

main47312-02190iCDE120200205-200408

main47312-02430iZZE121..BZ;ZZE122..XEI..SED..HTWCF200705-200803

main47312-02440iZZE122..BZ200705

W(ABS)

47313TUBE, FRONT BRAKE, NO.3

main47313-02220iZZE122..BZ..SED..HTWC200205-200408

main47313-02260iCDE120200408-200803

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90080-94106iCDE120,ZZE12#200205-200208

RH

main90080-94107iCDE120,ZZE12#200205-200208

LH

main90947-02C47iCDE120,ZZE12#200208-200301

RH

main90947-02C48iCDE120,ZZE12#200208-200301

LH

main90947-T2002iCDE120,ZZE12#..BZ..SED..(DCR,HTWC)200301-200408

RH

main90947-T2003iCDE120,ZZE12#..BZ..SED..(DCR,HTWC)200301-200408

LH

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10058×2iCDE120,ZZE12#..BZ..SED..(DCR,HTWC)200205-200408

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50020×2iCDE120,ZZE12#..BZ..SED..(DCR,HTWC)200205-200408

47314TUBE, FRONT BRAKE, NO.4

main47314-02260iZZE122..BZ..SED..HTWC200205-200408

W(ABS)

main47314-02270iZZE121..VEN200205-200508

main47314-02300iCDE120200205-200408

47315TUBE, FRONT BRAKE, NO.5

main47315-02190iZZE12#..BZ..SED..HTWC200205-200408

main47315-12510iCDE120200408-200803

47317TUBE, FRONT BRAKE, NO.7

main47317-02170iZZE122..BZ..SED..HTWC200205-200408

main47317-02200iCDE120200205-200408

47318TUBE, FRONT BRAKE, NO.8

main47318-02170iZZE122..BZ..SED..HTWC200205-200408

main47318-02200iCDE120200408-200803

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

main90401-10045×2iCDE120,ZZE12#..BZ..SED..(DCR,HTWC)200205-200408

47318EGASKET(FOR REAR FLEXIBLE HOSE)

main47389-50020×2iCDE120,ZZE12#..BZ..SED..(DCR,HTWC)200205-200408

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90080-94112iCDE120,ZZE12#..BZ..SED..(DCR,HTWC)200205-200408

47319TUBE, FRONT BRAKE, NO.9

main47312-02070iZZE12#..(XEI,XLI)..BZ..SED..HTWC200205-200408

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90080-94112iZZE122..WGN200205-200705

47321TUBE, REAR BRAKE, NO.1

main47321-12280iZZE122..WGN200205-200705

47321DWAY, NO.1(FOR REAR BRAKE TUBE)

main90904-12088iZZE121..VEN;ZZE122..WGN..HTWC;CDE120,ZZE122..DCR,HTWCF;ZZE122..ATM..SEG..SED..HTWC;ZZE122..(GLI,XEI)..SED..HTWC200408

47322TUBE, REAR BRAKE, NO.2

main47322-02320iZZE122..HTWCF200705-200807

main47322-12400iCDE120,ZZE12#..DCR,HTWC200408-200809

47371ACLAMP, BRAKE TUBE, NO.1

main47371-12230iZZE121..VEN;ZZE122..WGN..HTWC;CDE120,ZZE122..DCR,HTWCF;ZZE122..ATM..SEG..SED..HTWC;ZZE122..(GLI,XEI)..SED..HTWC200408

47372CLAMP, BRAKE TUBE, NO.2

main47374-12050×2iZZE121..VEN;ZZE122..WGN..HTWC;CDE120,ZZE122..DCR,HTWCF;ZZE122..ATM..SEG..SED..HTWC;ZZE122..(GLI,XEI)..SED..HTWC200408

47373BCLAMP, BRAKE TUBE, NO.3

main47371-52010iZZE12#..VEN200205-200508

47374BCLAMP, BRAKE TUBE, NO.4

main47372-52010iCDE120,ZZE122..BZ..SED..(DCR,HTWC)200205-200408

47375CLAMP, BRAKE TUBE, NO.5

main77299-32030×2iCDE120,ZZE12#200408-200809

7701FUEL TANK & TUBE

→ Go to FIG 77-01

9011908868

main90119-08868

9046808035

main90468-08035

9094901970

main90949-01970

9094901B45

main90949-01B45

9094901B66

main90949-01B66

9094901C50

main90949-01C50

9094901C74

main90949-01C74

9151560645

main91515-60645

9165140616

main91651-40616

34 parts on this diagram · 5 diagrams in section
