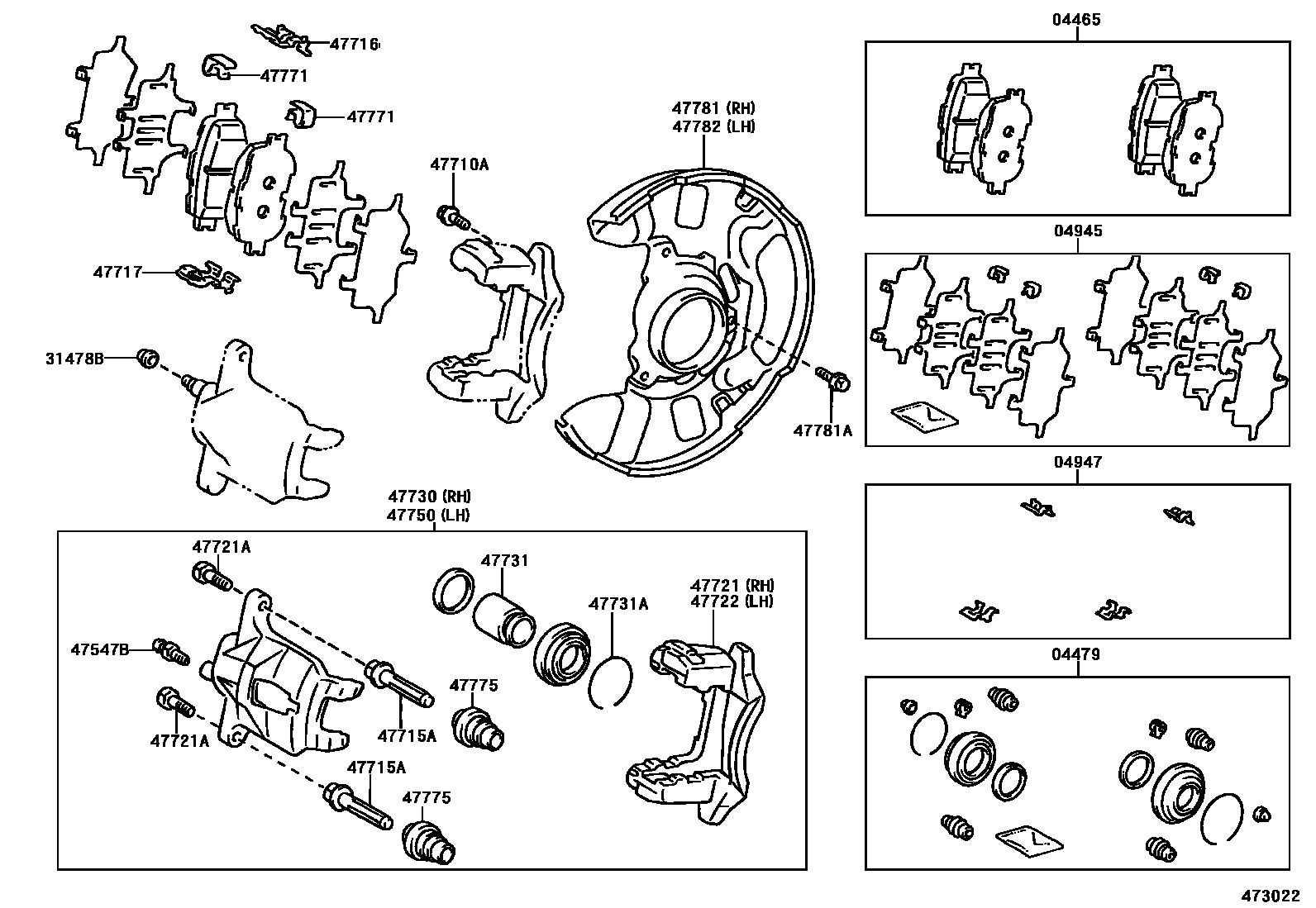

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04465PAD KIT, DISC BRAKE, FRONT

main04465-02100iZZE12#200205-200503

MARK TRW PAGID 648

main04465-02150iZZE12#200508-200809

MARK TRW PAGID 648

main04465-13030iCDE120200205-200207

MARK AISIN PC553H

main04465-2B040iCDE120200207-200408

MARK AISIN PC553H

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-13020iCDE120200605-200803

main04479-02130iZZE122..HTWCF;ZZE122..WGN..HTWC;ZZE122..ATM..SEG..SED..HTWC;ZZE12#..(GLI,XEI,XLI)..SED..HTWC200408

main04479-20330iCDE120200408-200604

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-13030iCDE120200207-200408

main04945-32230iCDE120200205-200207

04947FITTING KIT, DISC BRAKE, FRONT

main04947-02080iZZE12#200205-200705

main04947-20120iCDE120200408-200803

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010×2iCDE120200205-200408

main47548-02030×2iZZE12#..BZ..SED..HTWC200205-200408

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010×2iCDE120200205-200408

main90080-93048×2iZZE12#..VEN200205-200508

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12208×4iCDE120,ZZE12#200408-200809

*12-1.25PX29.5-23

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47715-22080×4iCDE120200408-200803

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-20210×2iCDE120200408-200803

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47717-20110×2iCDE120200205-200408

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-09120iZZE12#200205-200301

main47721-09121iZZE122..WGN200301-200705

main47721-20450iCDE120200205-200207

main47721-20460iCDE120200207-200408

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90080-10264×4iZZE122..WGN200205-200705

*8-1.00PX22-14.5

main90105-08164×4iCDE120200205-200408

*8-1.00PX23-15

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-09030iZZE12#200205-200301

main47722-09031iZZE122..WGN200301-200705

main47722-20140iCDE120200205-200207

main47722-20150iCDE120200207-200408

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-02120iZZE12#..BZ..SED..HTWC200205-200408

main47730-13030iCDE120200205-200207

main47730-13050iCDE120200408-200803

main47730-20640iCDE120200207-200211

47731PISTON, FRONT DISC BRAKE

main47731-44010×2iCDE120200205-200408

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-66001×2iCDE120200205-200408

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-02120iZZE122..HTWCF;ZZE122..WGN..HTWC;ZZE122..ATM..SEG..SED..HTWC;ZZE12#..(GLI,XEI,XLI)..SED..HTWC200408

main47750-13030iCDE120200205-200207

main47750-13050iCDE120200408-200803

main47750-20640iCDE120200207-200211

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-32040×4iCDE120200205-200408

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-30070×4iCDE120200205-200408

main47775-50010×4iCDE120200605-200803

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-02050iCDE120,ZZE12#200205-200705

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90119-06227×6iCDE120,ZZE12#200205-200705

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-02050iCDE120,ZZE12#200205-200705

22 parts on this diagram · 2 diagrams in section
