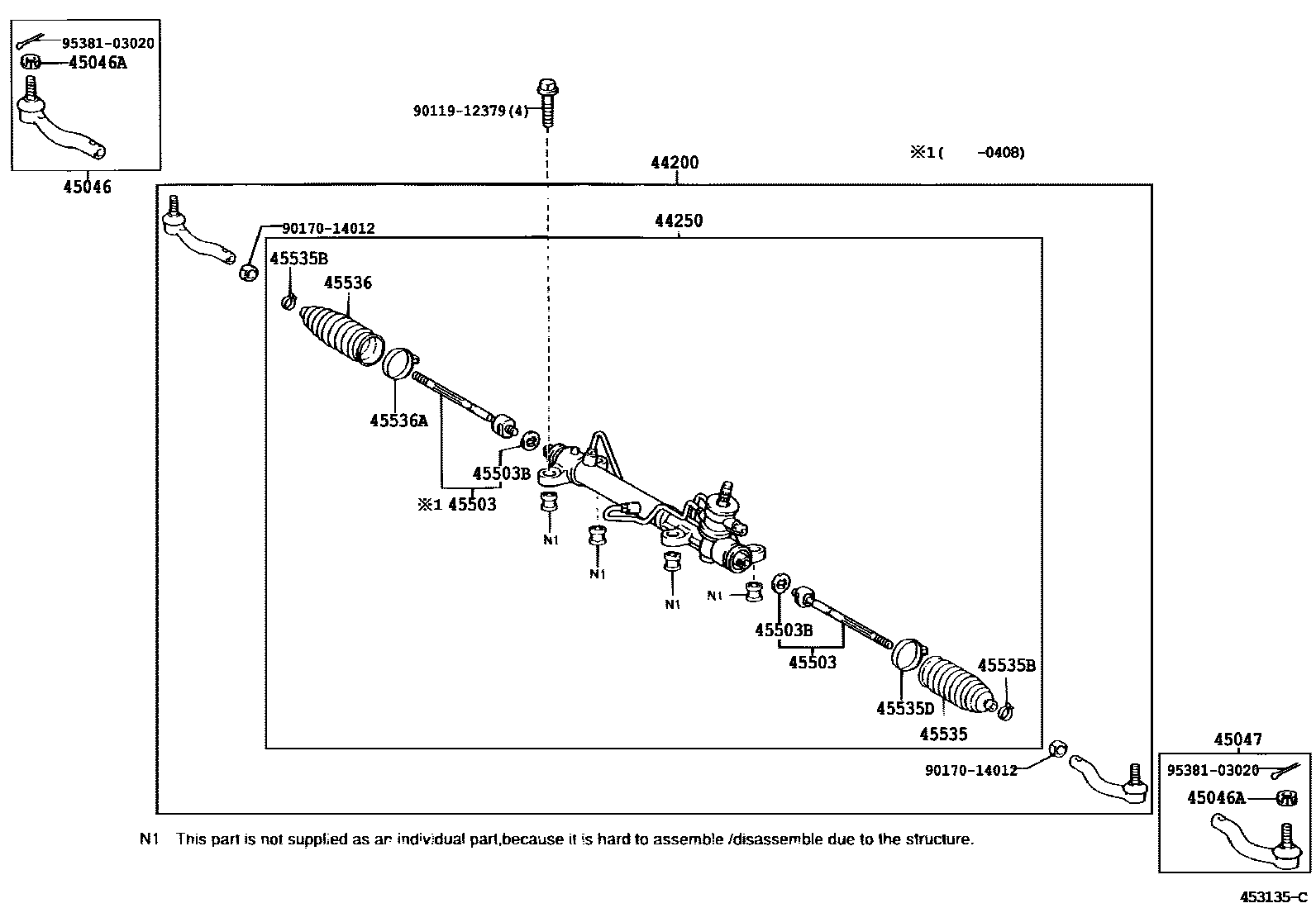

Toyota COROLLA (S.AMERICA)157 — FRONT STEERING GEAR & LINK
44200LINK ASSY, POWER STEERING
44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)
45046ANUT, CASTLE(FOR TIE ROD END)
45503BWASHER, CLAW(FOR STEERING RACK END)
45535BCLIP(FOR STEERING RACK BOOT)
45535DCLAMP(FOR STEERING RACK BOOT NO.1)
45536ACLAMP(FOR STEERING RACK BOOT NO.2)
9011912379
9017014012
9538103020
15 parts on this diagram · 5 diagrams in section
FRONT STEERING GEAR & LINK for Toyota COROLLA (S.AMERICA)157
This section contains 46 genuine Toyota parts for the FRONT STEERING GEAR & LINK system of the Toyota COROLLA (S.AMERICA)157. Key components include: GASKET KIT, POWER STEERING GEAR(FOR RACK & PINION), GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE, LINK ASSY, POWER STEERING, VALVE SUB-ASSY, POWER STEERING CONTROL, SPACER(FOR POWER STEERING CONTROL VALVE).
