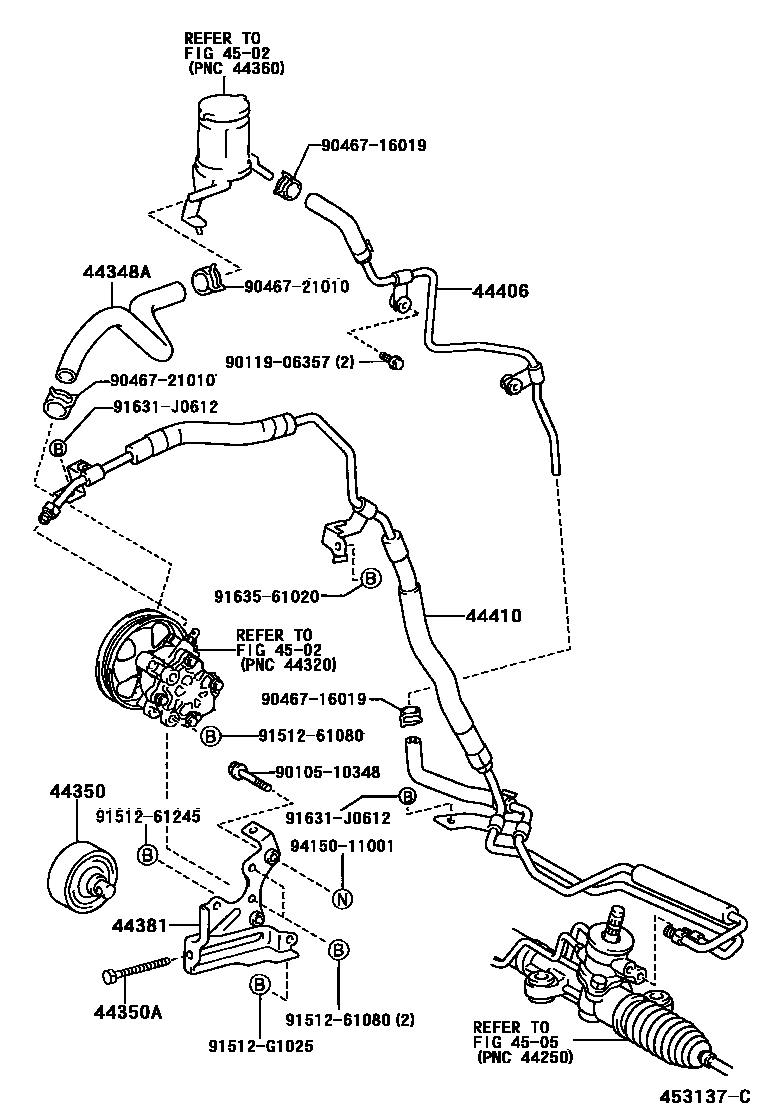

POWER STEERING TUBE

0001 1 0002 1

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-02060iZZE122..WGN200205-200705

main44348-12110iCDE120200205-200803

44350PULLEY ASSY, POWER STEERING IDLE

main44350-12052iCDE120200408-200803

main44350-12070iCDE120200205-200408

44350ABOLT(FOR POWER STEERING IDLE PULLEY)

main90109-08106iCDE120200205-200803

44381BRACKET, POWER STEERING IDLE PULLEY

main44381-13010iCDE120200205-200803

44406TUBE SUB-ASSY, RETURN

main44406-02090iZZE12#..BZ..SED..HTWC200205-200705

main44406-12240iCDE120200205-200803

44410TUBE ASSY, PRESSURE FEED

main44410-02110iZZE12#..BZ..SED..HTWC200205-200705

main44410-13050iCDE120200205-200803

4502VANE PUMP & RESERVOIR (POWER STEERING)

→ Go to FIG 45-02

4505FRONT STEERING GEAR & LINK

→ Go to FIG 45-05

9010510348

main90105-10348

9011906357

main90119-06357

9046716019

main90467-16019

9046721010

main90467-21010

9151261080

main91512-61080

9151261245

main91512-61245

91512G1025

main91512-G1025

91631J0612

main91631-J0612

9163561020

main91635-61020

9415011001

main94150-11001

18 parts on this diagram · 2 diagrams in section
