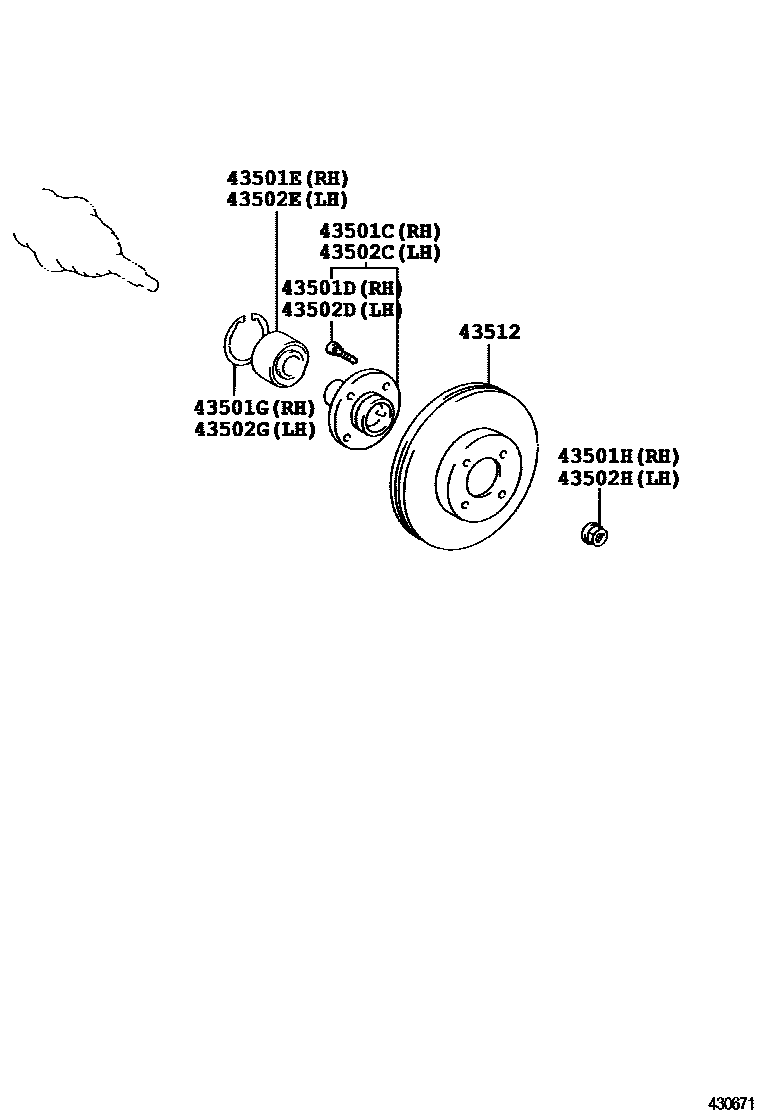

FRONT AXLE HUB

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-02030iCDE120,ZZE12#200205-200705

sub43502-12140

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049iCDE120,ZZE12#..BZ..SED..(DCR,HTWC)200205-200705

43501EBEARING (FOR FRONT AXLE HUB RH)

main90080-36149iCDE120,ZZE12#..BZ..SED..(DCR,HTWC)200205-200705

43501GRING, HOLE SNAP (FOR FRONT AXLE HUB RH)

main90521-79002iCDE120,ZZE12#..BZ..SED..(DCR,HTWC)200205-200809

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001iCDE120,ZZE12#..BZ..SED..(DCR,HTWC)200205-200705

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-02030iCDE120,ZZE12#200205-200705

sub43502-12140

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049iZZE122..HTWCF;ZZE122..WGN..HTWC;ZZE122..ATM..SEG..SED..HTWC;CDE120,ZZE12#..(GLI,XEI,XLI)..SED..(DCR,HTWC)200205-200705

43502EBEARING (FOR FRONT AXLE HUB LH)

main90080-36149iCDE120,ZZE12#200205-200705

43502GRING, HOLE SNAP (FOR FRONT AXLE HUB LH)

main90521-79002iCDE120,ZZE12#200205-200809

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-22001iZZE122..WGN200205-200705

43512DISC, FRONT

main43512-02100iZZE12#200205-200809

main43512-13020iCDE120200205-200304

sub43512-13021

main43512-13021iCDE120200304-200407

sub43512-13022

main43512-13022iCDE120200407-200803

11 parts on this diagram · 1 diagram in section
