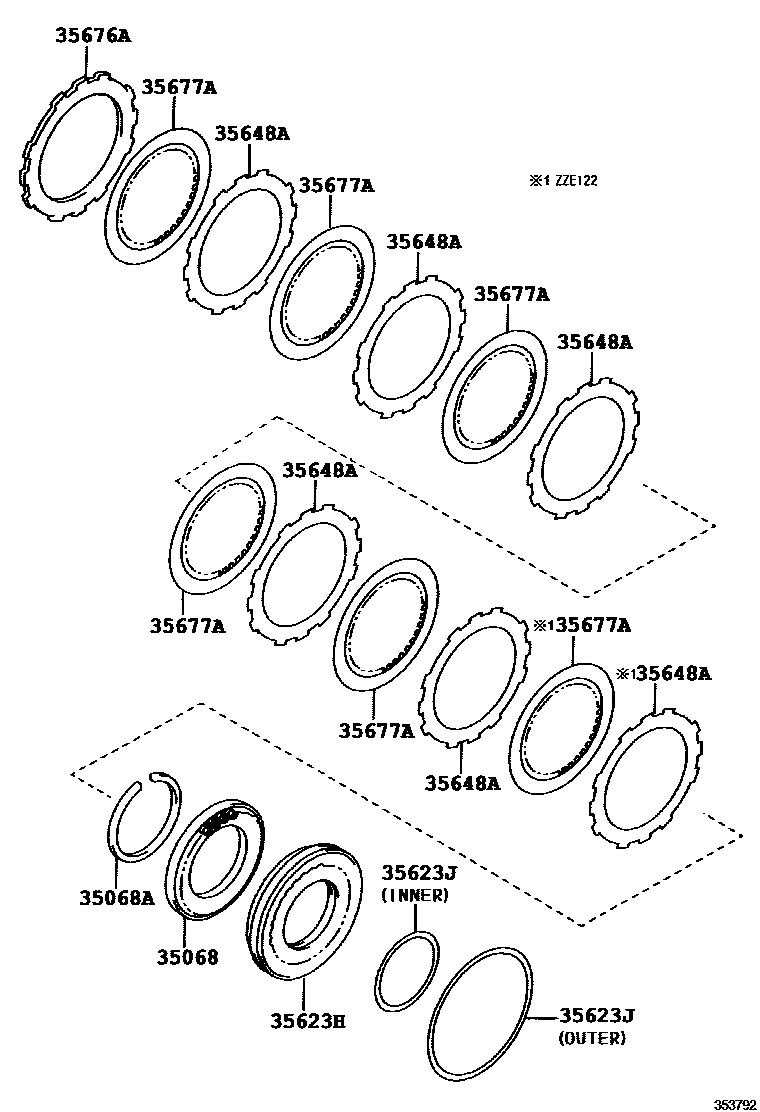

BRAKE NO.3, 1ST & REVERSE BRAKE (ATM)

0001 1A245E,A246E 0002 1U341E(PERU SPEC)

35068SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN

main35068-12010iZZE12#..ATM..BZ..SED200205-200408

main35068-52030iZZE122..ATM..BZ..SED..HTWC200612-200803

PERU SPEC

35068ARING, SHAFT SNAP (FOR 1ST & REVERSE BRAKE RETURN SPRING)

main90520-90001iZZE12#..ATM200408

35623HPISTON, 1ST & REVERSE BRAKE

main35623-12030iZZE122..ATM..WGN200205-200705

main35623-20020iZZE121..ATM200408

35623JRING, O (FOR 1ST & REVERSE BRAKE)

main90301-94004iZZE12#..ATM..VEN200205-200508

OUTER

main90301-99131iZZE12#..ATM..BZ..SED..HTWC200205-200408

INNER

35648APLATE, CLUTCH (FOR 1ST & REVERSE BRAKE)

main35648-12020×5iZZE121..ATM; ZZE122..ATM200408

35676AFLANGE, BRAKE (FOR 1ST & REVERSE BRAKE)

main35676-12030iZZE122..ATM..WGN200406-200705

T=3.5

main35676-32010iZZE12#..ATM200408

T=3.5

35677ADISC, CLUTCH (FOR 1ST & REVERSE BRAKE)

main35677-12080×5iZZE121..ATM200205-200508

main35677-32080×6iZZE122..ATM200408

7 parts on this diagram · 2 diagrams in section
