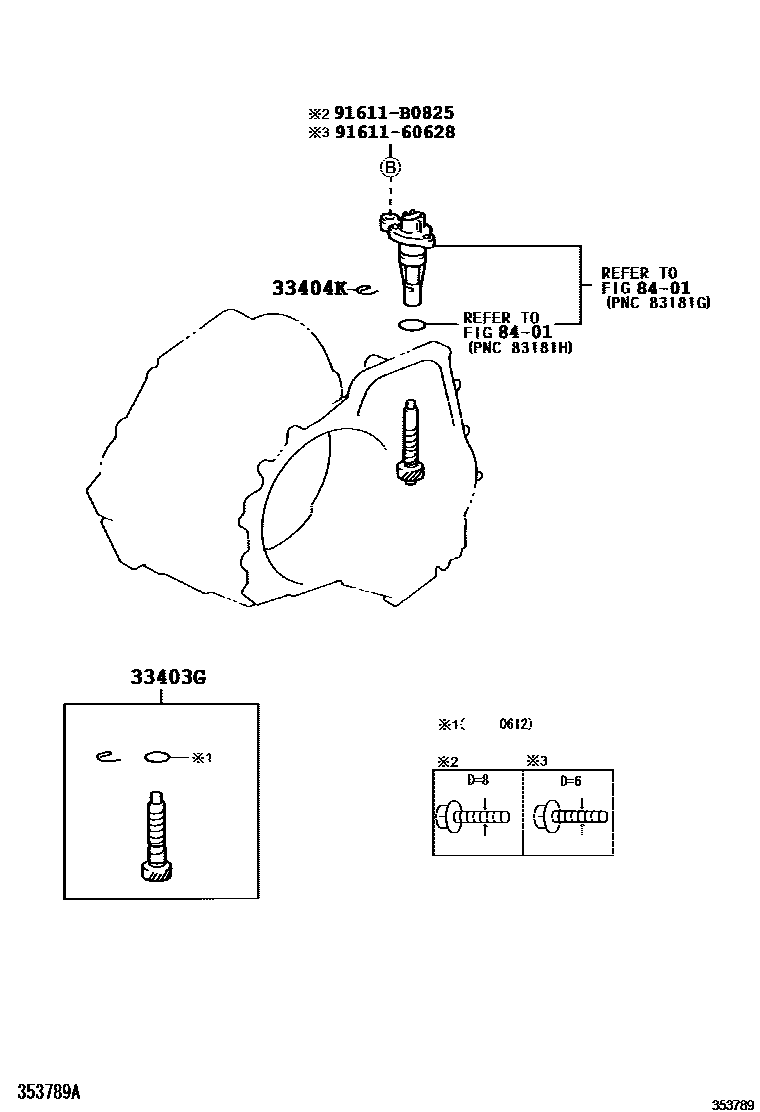

SPEEDOMETER DRIVEN GEAR (ATM)

33403GGEAR SUB-ASSY, SPEEDOMETER DRIVEN (ATM)

main33403-19455iZZE122..ATM..XEI..SED200408-200612

N=30,MARK 30:35

main33403-29395iZZE121..ATM..VEN200205-200508

N=29,MARK 29:35

main33403-29525iZZE122..ATM..BZ..SED..HTWC200612-200803

N=21,MARK 21:25

33404KCLIP (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90468-12005iZZE122..ATM..SEG..SED..HTWC200612

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9161160628

main91611-60628

91611B0825

main91611-B0825

5 parts on this diagram · 1 diagram in section
