TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

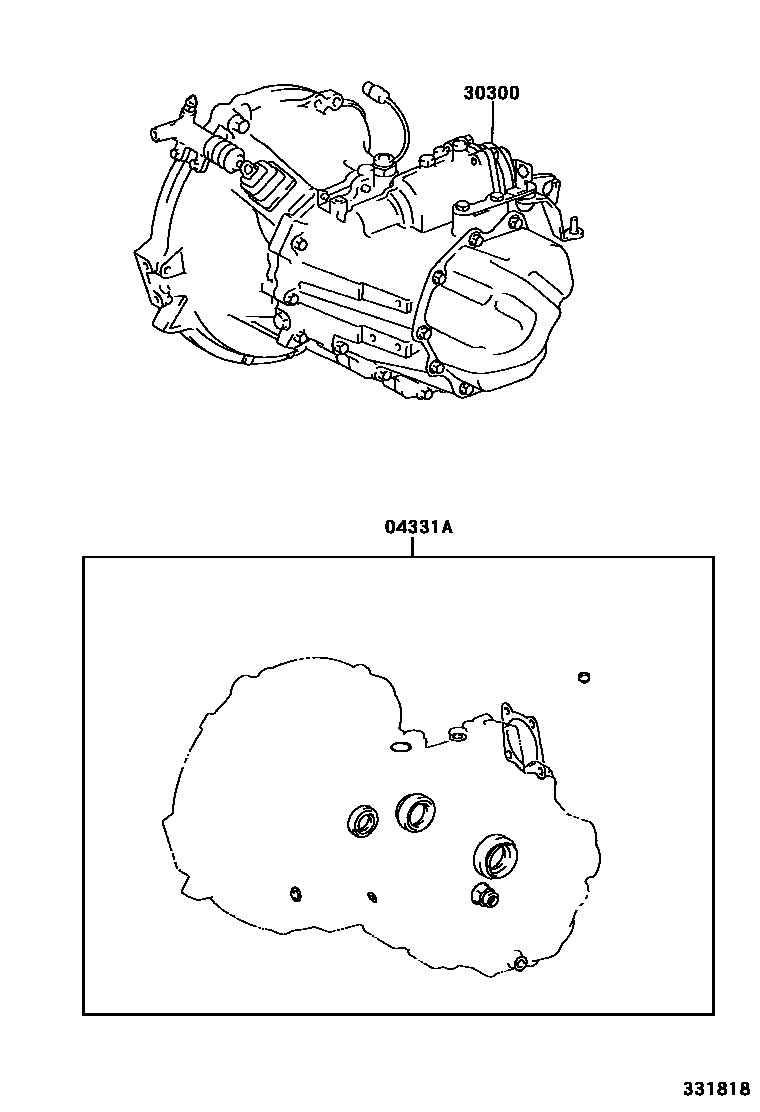

Parts diagram

04331AGASKET KIT, TRANSAXLE OVERHAUL(MTM)

main04331-12110i200205-200407

main04331-12181i200410-200511

main04331-12570i200511

main04331-12580i200511-200705

main04331-13050i200408-200410

main04331-17040i200408-200510

main04331-1E040i200407-200410

main04331-20100i200205-200407

main04331-28020i200205-200407

main04331-52120i200410-200508

main04331-52270i200410

main04331-64010i200408-200509

main04331-64011i200509-200803

30300TRANSAXLE ASSY, MANUAL

main30300-13050i200508-200706

C50

main30300-13051i200706

C50

main30300-1A821i200508-200706

C52

main30300-1A822i200706

C52

main30300-1E030i200205-200408

E351

main30300-1E031i200503-200803

E351

main30300-1E150i200408-200706

C52

main30300-1E151i200706

C52

main30300-1E160i200408-200706

C50

main30300-1E161i200706-200803

C50

2 parts on this diagram · 2 diagrams in section
