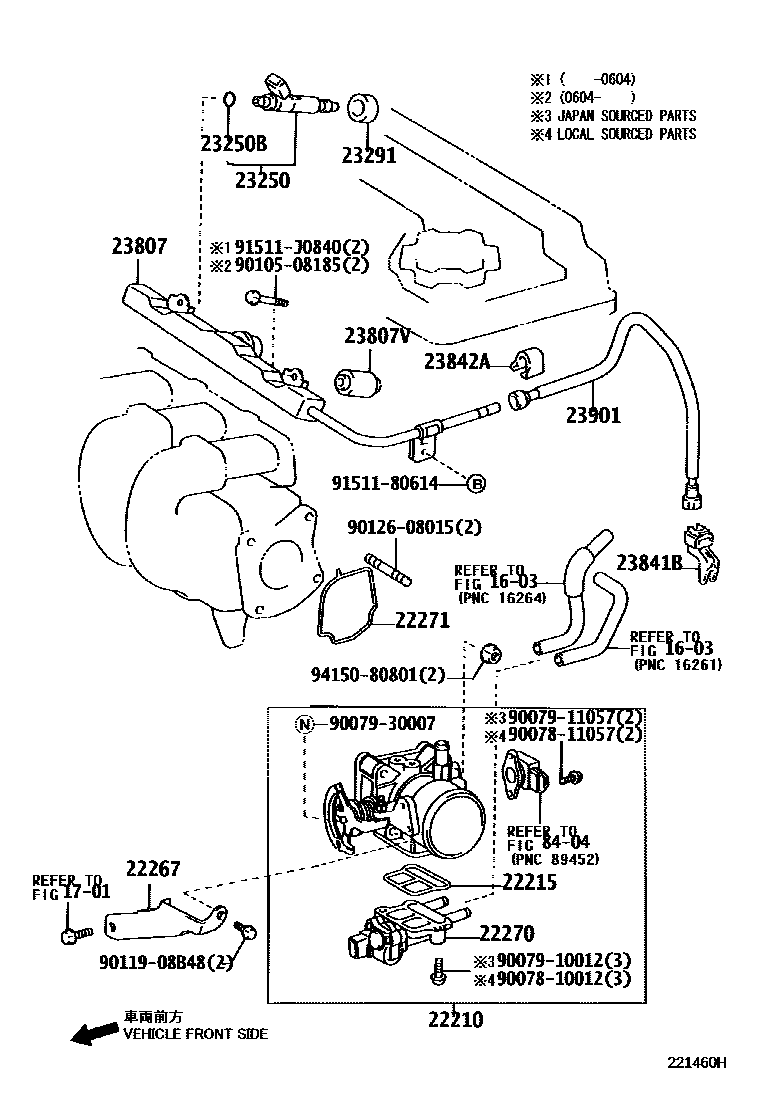

FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1 0004 1 0005 1

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

1701MANIFOLD

→ Go to FIG 17-01

22210BODY ASSY, THROTTLE

main22210-0D070i1ZZFE..ZZE122200205-200705

main22210-0D080i3ZZFE..ZZE121200205-200508

(L)

main22210-22130i1ZZFE..ZZE122..WGN;1ZZFE..ZZE122..VEN200508

(J)

main22210-22150i3ZZFE..ZZE121200205-200508

(J)

main22210-22180i1ZZFBE..ZZE122200705

22215GASKET, THROTTLE BODY COVER

main22215-0D070i1ZZFE..ZZE122..WGN;1ZZFE..ZZE122..ATM..SEG..SED;1ZZFE..ZZE122..(GLI,XEI)..SED200408

(L)

main22215-0D080i3ZZFE..ZZE121200408

(L)

main22215-74400i3ZZFE..ZZE121200205-200508

(J)

main22215-7A680i1ZZFE..ZZE122..WGN200205-200705

(J)

22267BRACKET, THROTTLE BODY

main22267-22030i1ZZFE..ZZE122..BZ..SED200205-200408

22270VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY)

main22270-0D020i1ZZFE..ZZE122..WGN;1ZZFE..ZZE122..ATM..SEG..SED;1ZZFE..ZZE122..(GLI,XEI)..SED200408

(L)

main22270-0D030i3ZZFE..ZZE121200408

(L)

main22270-22050i3ZZFE..ZZE121200205-200508

(J)

main22270-22060i1ZZFE..ZZE122200205-200303

(J)

main22270-22061i1ZZFE..ZZE122..WGN;1ZZFE..ZZE122..ATM..SEG..SED;1ZZFE..ZZE122..(GLI,XEI)..SED200408

(J)

22271GASKET, THROTTLE BODY

main22271-0D040i3ZZFE..ZZE121200408

(L)

main22271-22040i1ZZFE..ZZE122..VEN200205-200508

main22271-22070i3ZZFE..ZZE121200205-200212

main22271-22080i1ZZFBE..ZZE122200705

23250INJECTOR ASSY, FUEL

main23209-0D030×4i3ZZFE..ZZE121200205-200508

main23209-22040×4i1ZZFE..ZZE122200205-200705

main23209-22080×4i1ZZFBE..ZZE122200705-200807

23250BRING, O(FOR FUEL INJECTOR)

main90301-07024×4i1ZZFE..ZZE122..ATM..SEG;1ZZFE..ZZE122..(GLI,XEI)..SED200408-200607

main90301-07030×4i3ZZFE..ZZE121200408

main90301-07037×4i1ZZFBE..ZZE122;1ZZFE..ZZE122..WGN;1ZZFE..ZZE122..ATM..SEG..SED;1ZZFE..ZZE122..(GLI,XEI)..SED200607

23291INSULATOR, INJECTOR VIBRATION

main23291-22010×4i3ZZFE..ZZE121200408

main23291-22020×4i1ZZFBE..ZZE122;1ZZFE..ZZE122..WGN;1ZZFE..ZZE122..ATM..SEG..SED;1ZZFE..ZZE122..(GLI,XEI)..SED200408

23807PIPE SUB-ASSY, FUEL DELIVERY

main23807-22030i1ZZFE,3ZZFE..ZZE12#200408-200809

main23807-22050i1ZZFBE..ZZE122200705-200807

main23807-22060i3ZZFE..ZZE121..BZ200712-200803

PERU SPEC

23807VSPACER, NO.1(FOR DELIVERY PIPE)

main90561-08055×2i1ZZ#,3ZZFE..ZZE12#200408-200809

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-21050i1ZZ#,3ZZFE..ZZE12#200705

main23841-28010i1ZZFE,3ZZFE..ZZE12#200205-200704

23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)

main23842-22020i1ZZFE..ZZE122..XEI..WGN200205-200503

main23842-28010i1ZZFE..ZZE122..WGN200503-200705

23901TUBE SUB-ASSY, FUEL

main23901-22140i1ZZFE,3ZZFE..ZZE12#..BZ..SED200205-200408

main23901-22190i1ZZ#,3ZZFE..ZZE12#..BZ200705

8404ELECTRONIC FUEL INJECTION SYSTEM

→ Go to FIG 84-04

9007810012

main90078-10012

9007811057

main90078-11057

9007910012

main90079-10012

9007911057

main90079-11057

9007930007

main90079-30007

9010508185

main90105-08185

9011908B48

main90119-08B48

9012608015

main90126-08015

9151180614

main91511-80614

91511J0840

main91511-J0840

9415080801

main94150-80801

27 parts on this diagram · 5 diagrams in section
