INJECTION PUMP BODY

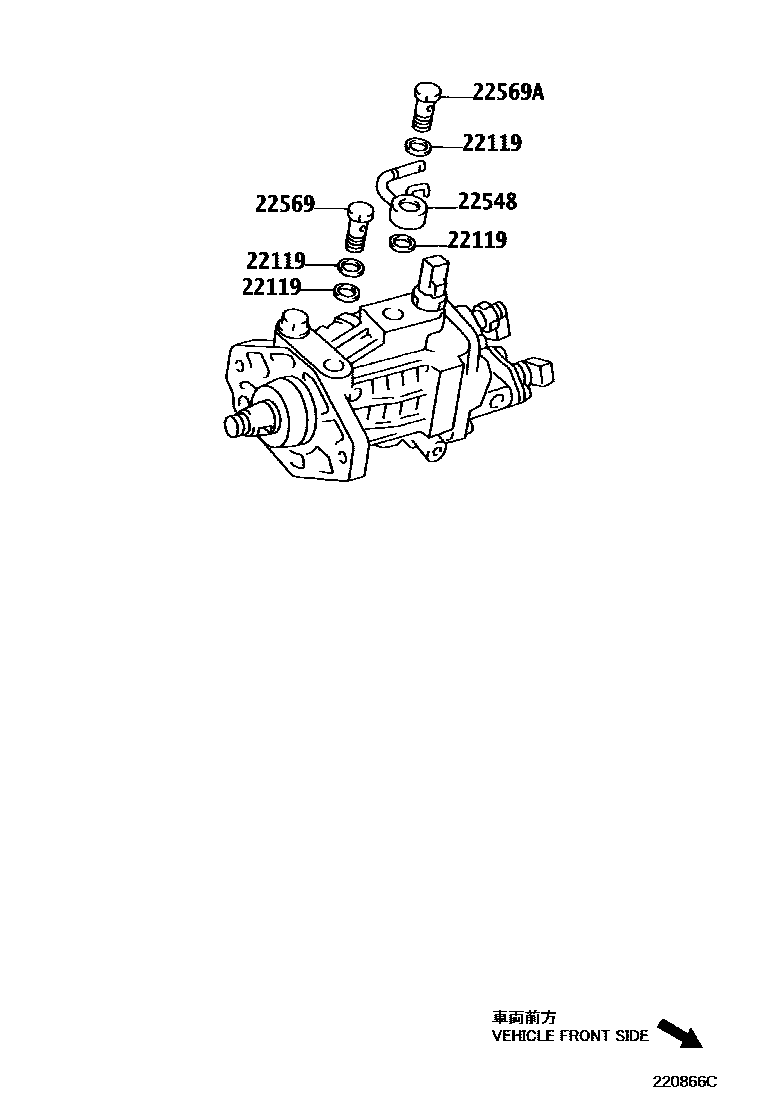

Parts diagram

22119WASHER, AIR BLEEDER NIPPLE

main90201-12109×4i200205-200408

22548NIPPLE, SWIVEL

main22548-27010i200205-200408

22569SCREW, OVERFLOW

main22569-30010i200205-200408

22569ASCREW, INJECTION PUMP

main22569-1C400i200205-200408

4 parts on this diagram · 1 diagram in section
