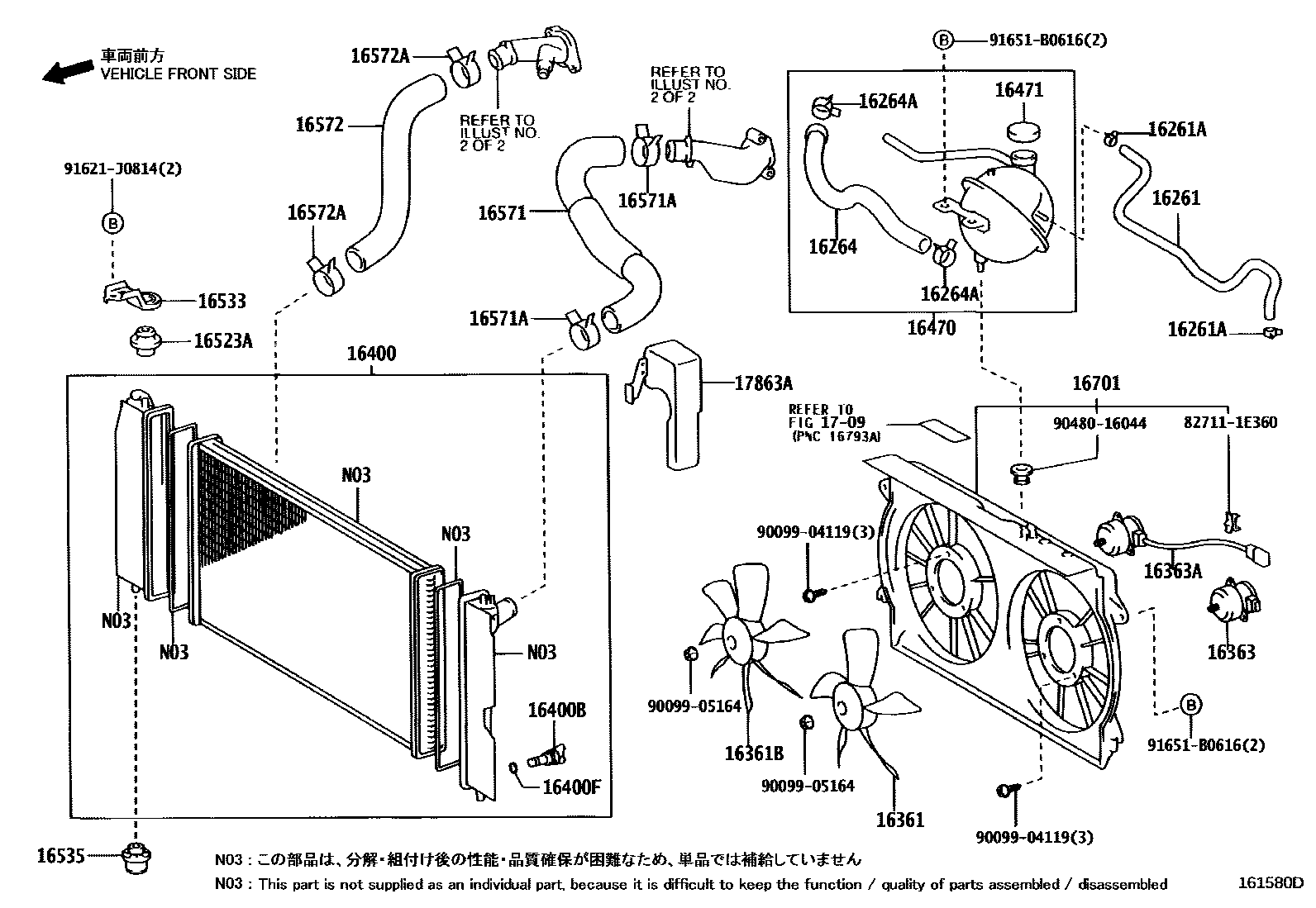

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1 0004 1 0005 1

16261HOSE, WATER BY-PASS

main16261-0D030i1ZZFE..ZZE122..XEI..SED;1ZZFE..ZZE122..ATM..SEG..SED200612-200803

PERU SPEC,(L)

main16261-0D040i3ZZFE..ZZE121..BZ200612-200803

PERU SPEC,(L)

main16261-0D050i1ZZFBE..ZZE122;1ZZFE..ZZE122..WGN;1ZZFE..ZZE122..ATM..SEG..SED;1ZZFE..ZZE122..(GLI,XEI)..SED200205-200705

(L)

main16261-0D060i3ZZFE..ZZE121200205-200508

(L)

sub16261-22100

main16261-0G020i1CDFTV..CDE120200408-200803

main16261-22080i1ZZFE..ZZE122..BZ..SED200205-200705

(J)

main16261-22100i3ZZFE..ZZE121200205-200508

(J)

main16261-27050i1CDFTV..CDE120200205-200408

16261ACLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

main96135-51300i1CDFTV..CDE120200205-200803

main96137-41501i1ZZFE..ZZE122..XEI..SED;1ZZFE..ZZE122..ATM..SEG..SED200612-200803

PERU SPEC

16264HOSE, WATER BY-PASS, NO.2

main16264-0D020i1ZZFE..ZZE122..XEI..SED;1ZZFE..ZZE122..ATM..SEG..SED200612-200803

PERU SPEC,(L)

main16264-0D030i3ZZFE..ZZE121..BZ200612-200803

PERU SPEC,(L)

main16264-0D060i1ZZFE..ZZE122..BZ..SED200205-200705

(L)

main16264-0D070i3ZZFE..ZZE121200205-200508

(L)

sub16264-22110

main16264-0G010i1CDFTV..CDE120200408-200803

main16264-22090i1ZZFE..ZZE122..WGN200205-200705

(J)

main16264-22110i3ZZFE..ZZE121200205-200508

(J)

main16264-27040i1CDFTV..CDE120200205-200408

16264ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

main90466-W0010i1CDFTV..CDE120200408-200803

NO.1

main90467-21010i1CDFTV..CDE120200205-200408

main90467-21010i1CDFTV..CDE120200408-200803

NO.2

main96135-51300i1ZZFE,3ZZFE..ZZE12#200205-200705

main96137-41501i1ZZFE..ZZE122..XEI..SED;1ZZFE..ZZE122..ATM..SEG..SED200612-200803

PERU SPEC

16361FAN

main16361-0D110i1ZZ#..ZZE122..MTM..WGN;1ZZFE,3ZZFE..ZZE12#..MTM..VEN200205-200802

main16361-0D120i1ZZFE..ZZE122..ATM..WGN200205-200802

main16361-0G010i1CDFTV..CDE120200205-200803

16361BFAN, NO.2

main16361-0G020i1CDFTV..CDE120200205-200803

16363MOTOR, COOLING FAN

main16363-23020i1ZZFE,3ZZFE..ZZE12#..MTM200205-200305

main16363-23030i1CDFTV..CDE120200205-200802

sub16363-28160

main16363-23030i1ZZFE,3ZZFE..ZZE12#..ATM..BZ..SED200307-200705

(J)

sub16363-28160

main16363-28150i1ZZ#..ZZE122..MTM..WGN;1ZZFE,3ZZFE..ZZE12#..MTM..VEN200305-200802

main16363-28150i1ZZFE,3ZZFE..ZZE12#..MTM..BZ..SED200307-200705

(J)

main16363-28160i1CDFTV..CDE120200306-200803

16363AMOTOR, COOLING FAN, NO.2

main16363-27040i1CDFTV..CDE120200205-200306

main16363-27050i1CDFTV..CDE120200306-200803

16400RADIATOR ASSY

main16400-27040i1CDFTV..CDE120200205-200803

main16410-0D280i1ZZFE..ZZE122..MTM200205-200802

main16410-0D290i3ZZFE..ZZE121..MTM..BZ200205-200802

main16410-0D300i1ZZFE,3ZZFE..ZZE12#..ATM200205-200802

16400BPLUG, RADIATOR DRAIN COCK

main23322-54010i1ZZFE..ZZE122..XEI..SED;1ZZFE..ZZE122..ATM..SEG..SED;1ZZFBE,3ZZFE..ZZE12#..BZ..SED200205-200803

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16492-21050i1CDFTV..CDE120200205-200803

16470TANK ASSY, RADIATOR RESERVE

main16470-27070i1CDFTV..CDE120200205-200408

sub16480-0G020

sub16401-27071

sub90467-21010

main16480-0G020i1CDFTV..CDE120200408-200803

16471CAP SUB-ASSY, RESERVE TANK

main16401-27070i1CDFTV..CDE120200205-200408

sub16475-28140

main16401-53010i1CDFTV..CDE120200408-200803

sub16475-51010

main16471-0D020i1ZZ#..ZZE122..WGN;1ZZFE,3ZZFE..ZZE12#..VEN200205-200802

main16471-0D020i1ZZFE,3ZZFE..ZZE12#200307-200705

(L)

main16471-21010i1ZZFE,3ZZFE..ZZE12#200404-200705

16523ACUSHION, RADIATOR SUPPORT

main16523-21020i1CDFTV..CDE120200205-200803

16533SUPPORT, RADIATOR, UPPER

main16533-21020i1ZZFE,3ZZFE..ZZE12#..VEN200205-200803

16535SUPPORT, RADIATOR, LOWER

main16535-21050i1ZZ#..ZZE122..ATM..WGN;1ZZFE,3ZZFE..ZZE12#..ATM..VEN200205-200802

main16535-27010i1CDFTV..CDE120200205-200803

main90480-40016i1ZZ#..ZZE122..MTM..WGN;1ZZFE,3ZZFE..ZZE12#..MTM..VEN200205-200802

16571HOSE, RADIATOR, INLET

main16571-27050i1CDFTV..CDE120200205-200803

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90466-37002i1ZZFE,3ZZFE..ZZE12#..BZ..SED200205-200705

NO.2

main90466-37002i1ZZFE..ZZE122..XEI..SED;1ZZFE..ZZE122..ATM..SEG..SED;1ZZFBE,3ZZFE..ZZE12#..BZ..SED200408-200802

NO.1

main90466-41008i1CDFTV..CDE120200205-200803

main90467-37005i1ZZFE,3ZZFE..ZZE12#..VEN200205-200705

NO.1

main90467-37005i1ZZFE..ZZE122..WGN;1ZZFBE,3ZZFE..ZZE12#;1ZZFE..ZZE122..ATM..SEG..SED;1ZZFE..ZZE122..(GLI,XEI)..SED200408-200802

NO.2

16572HOSE, RADIATOR, OUTLET

main16572-27040i1CDFTV..CDE120200205-200803

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90466-35001i1ZZ#..ZZE122..WGN;1ZZFE,3ZZFE..ZZE12#..VEN200408-200802

NO.1

main90466-41008i1CDFTV..CDE120200205-200803

main90467-34004i1ZZFE..ZZE122..WGN;1ZZFBE,3ZZFE..ZZE12#;1ZZFE..ZZE122..ATM..SEG..SED;1ZZFE..ZZE122..(GLI,XEI)..SED200408-200802

NO.2

main96136-43901i1ZZ#..ZZE122..WGN;1ZZFE,3ZZFE..ZZE12#..VEN200802

NO.2

16701SHROUD SUB-ASSY, FAN

main16711-0D100i1ZZFE,3ZZFE..ZZE12#200205-200802

main16711-0D100i1ZZFE,3ZZFE..ZZE12#..VEN200307-200705

(L)

main16711-27120i1CDFTV..CDE120200205-200803

1709

17863ASEPARATOR, AIR INTAKE

main17863-27010i1CDFTV..CDE120200205-200803

827111E360WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E360

9009904119

main90099-04119

9009905164

main90099-05164

9048016044

main90480-16044

91621J0814

main91621-J0814

91651B0616

main91651-B0616

29 parts on this diagram · 5 diagrams in section
