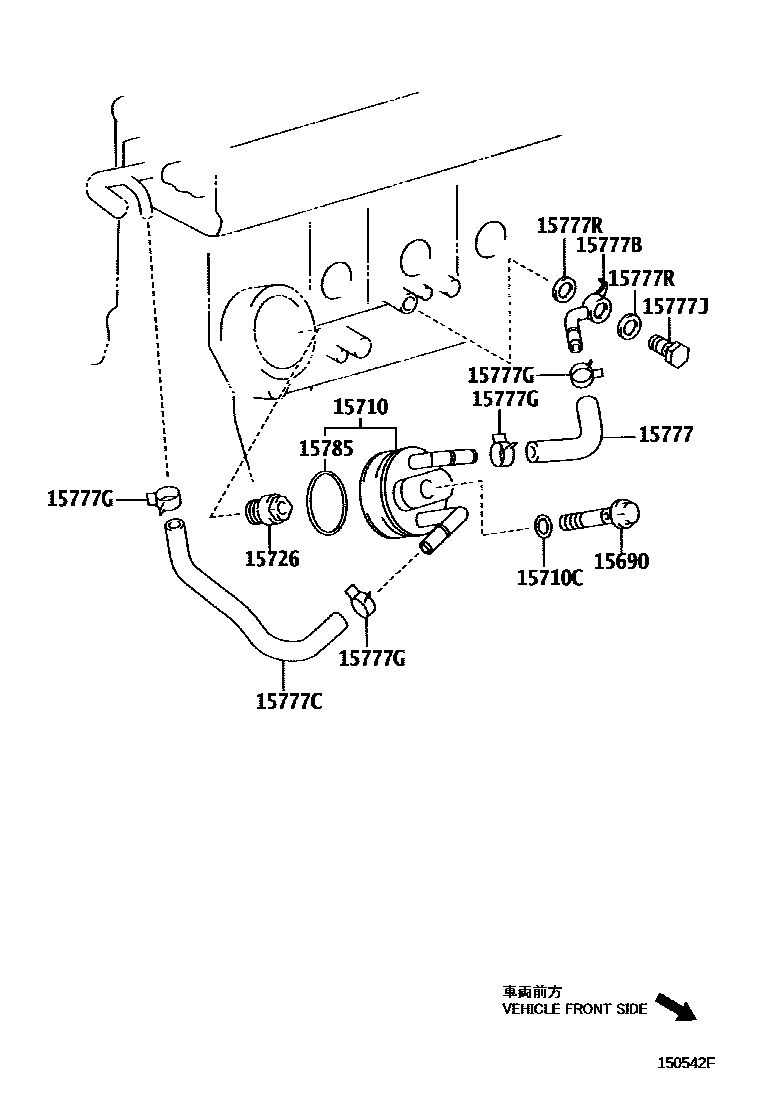

ENGINE OIL COOLER

15690VALVE ASSY, OIL COOLER RELIEF

main90401-19009i1CDFTV..CDE120200205-200408

15710COOLER ASSY, OIL

main15710-27030i1CDFTV..CDE120200205-200408

15710CGASKET(FOR OIL COOLER)

main90301-24017i1CDFTV..CDE120200205-200408

15726CONNECTOR, OIL COOLER UNION BOLT

main15726-27010i1CDFTV..CDE120200205-200408

15777HOSE, OIL COOLER

main15777-27020i1CDFTV..CDE120200205-200408

15777BPIPE, OIL COOLER

main15768-27020i1CDFTV..CDE120200205-200408

15777CHOSE, OIL COOLER

main15778-27050i1CDFTV..CDE120200205-200408

15777GCLAMP OR CRIP, HOSE

main96134-41900×4i1CDFTV..CDE120200205-200408

15777JBOLT, UNION(FOR OIL COOLER PIPE)

main90401-20004i1CDFTV..CDE120200205-200408

15777RGASKET(FOR OIL COOLER PIPE UNION BOLT)

main90430-20014×2i1CDFTV..CDE120200205-200408

15785GASKET, OIL COOLER

main15785-27010i1CDFTV..CDE120200205-200408

11 parts on this diagram · 1 diagram in section
