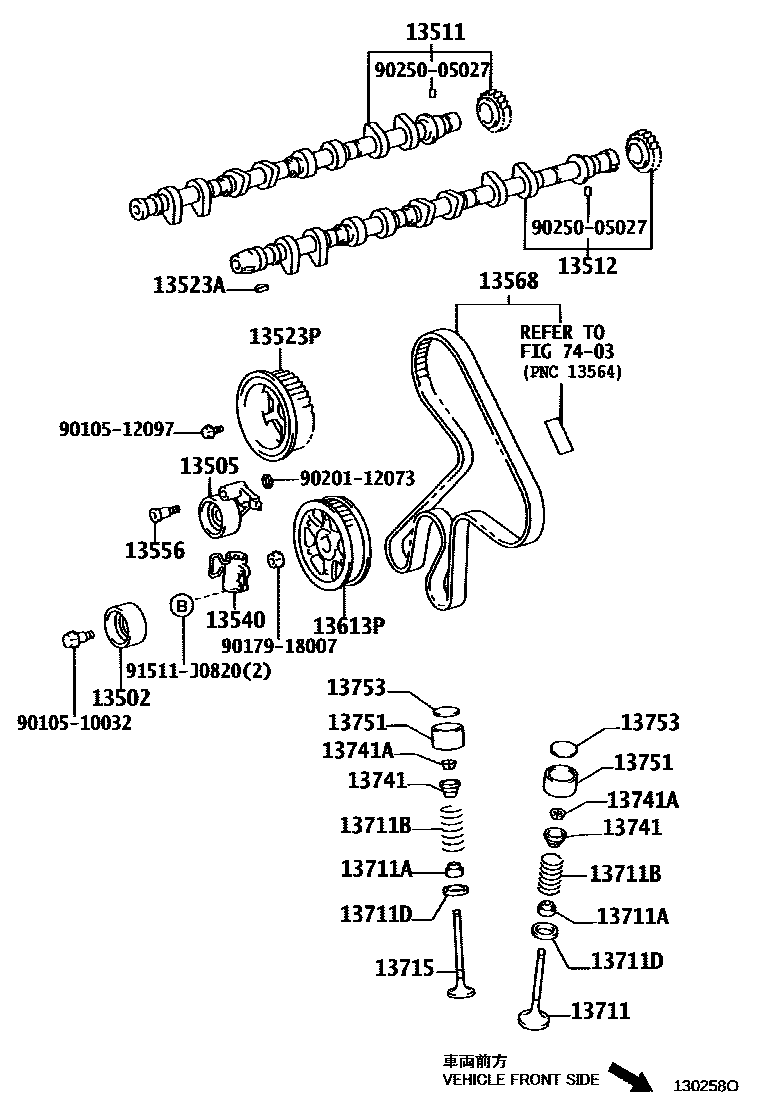

CAMSHAFT & VALVE

0001 1 0002 1

13502IDLER SUB-ASSY, TIMING BELT, NO.2

main13503-27010i1CDFTV..CDE120200205-200408

13505IDLER SUB-ASSY, TIMING BELT, NO.1

main13505-27010i1CDFTV..CDE120200205-200408

13511CAMSHAFT

main13501-0D020i3ZZFE..ZZE121200205-200210

(L)

main13501-0D021i1ZZFBE,3ZZFE..ZZE12#200408-200801

(L)

main13501-0D022i1ZZFBE,3ZZFE..ZZE12#200801-200810

(L)

main13501-22040i1ZZFE..ZZE122200205-200210

main13501-22041i1ZZFE..ZZE122..WGN;1ZZFE..ZZE122..ATM..SEG..SED;1ZZFE..ZZE122..(GLI,XEI)..SED200408-200803

main13501-22042i1ZZFE..ZZE122200803

main13501-22060i3ZZFE..ZZE121200205-200210

(J)

main13501-22061i3ZZFE..ZZE121..BZ200612-200803

main13501-22062i1ZZFBE,3ZZFE..ZZE12#200803

(J)

main13501-27011i1CDFTV..CDE120200408

13512CAMSHAFT, NO.2

main13502-0D020i3ZZFE..ZZE121200205-200210

(L)

main13502-0D021i3ZZFE..ZZE121200210-200508

(L)

main13502-22010i1ZZFE..ZZE122; 3ZZFE..ZZE121200205-200210

(J)

main13502-22011i1ZZFE..ZZE122..VEN; 3ZZFE..ZZE121200210-200508

(J)

main13502-27011i1CDFTV..CDE120200205-200408

13523GEAR OR SPROCKET, CAMSHAFT TIMING

main13523-0D020i1ZZFE,3ZZFE..ZZE12#..VEN200205-200508

(L)

main13523-22020i1ZZFE..ZZE122..WGN;1ZZFBE,3ZZFE..ZZE12#;1ZZFE..ZZE122..ATM..SEG..SED;1ZZFE..ZZE122..(GLI,XEI)..SED200408

(J)

13523AKEY, WOODRUFF(FOR TIMING GEAR)

main90280-05004i1CDFTV..CDE120200408

13523PPULLEY, CAMSHAFT TIMING

main13523-27010i1CDFTV..CDE120200205-200408

13540TENSIONER ASSY, CHAIN, NO.1

main13540-0D020i1ZZFE..ZZE122..WGN200205-200705

(L)

main13540-22022i1ZZFE,3ZZFE..ZZE12#..VEN200205-200508

(J)

main13540-27011i1CDFTV..CDE120200408

13556SHAFT, TIMING BELT IDLER

main13556-27010i1CDFTV..CDE120200408

13568BELT, TIMING

main13568-29035i1CDFTV..CDE120200205-200408

13613PPULLEY, INJECTION PUMP DRIVE

main13603-27010i1CDFTV..CDE120200205-200408

13711VALVE, INTAKE

main13711-0D020×8i3ZZFE..ZZE121200210-200508

(L)

main13711-22030×8i1ZZFE..ZZE122..WGN;1ZZFE..ZZE122..ATM..SEG..SED;1ZZFE..ZZE122..(GLI,XEI)..SED200408

main13711-22040×8i3ZZFE..ZZE121200210-200508

(J)

main13711-22060×8i1ZZFBE..ZZE122200705

main13711-27010×8i1CDFTV..CDE120200205-200408

13711ASEAL OR RING, O(FOR VALVE STEM OIL)

main90080-31061×8i3ZZFE..ZZE121200408-200810

NO.2,(L)

main90080-31062×8i3ZZFE..ZZE121200210-200508

NO.1,(L)

main90913-02101×8i3ZZFE..ZZE121..BZ200612

NO.2

main90913-02111×8i3ZZFE..ZZE121200210-200311

NO.1,(J)

main90913-02119×16i1CDFTV..CDE120200205-200310

main90913-02121×16i1CDFTV..CDE120200408

13711BSPRING, COMPRESSION(FOR INNER)

main90080-50253×16i3ZZFE..ZZE121200408-200810

(L),L=43.4

main90501-29048×16i3ZZFE..ZZE121200210-200508

(J),BLUE PAINT

main90905-01055×16i1CDFTV..CDE120200205-200408

main90905-01084×16i1ZZFBE..ZZE122200705

13711DWASHER, PLATE(FOR VALVE SPRING SEAT)

main90560-11032×16i1CDFTV..CDE120200205-200408

13715VALVE, EXHAUST

main13715-0D020×8i3ZZFE..ZZE121200210-200508

(L)

main13715-22030×8i1ZZFE..ZZE122..WGN;1ZZFE..ZZE122..ATM..SEG..SED;1ZZFE..ZZE122..(GLI,XEI)..SED200408

main13715-22040×8i3ZZFE..ZZE121200408-200801

(J)

main13715-22060×8i1ZZFBE..ZZE122200705

main13715-27010×8i1CDFTV..CDE120200205-200408

13741RETAINER, VALVE SPRING

main13741-16010×16i1CDFTV..CDE120200408

main13741-22021×16i3ZZFE..ZZE121..VEN200408-200801

13741ALOCK, VALVE SPRING RETAINER

main90080-38115×32i3ZZFE..ZZE121200210-200508

(L)

main90913-03021×32i1CDFTV..CDE120200205-200408

main90913-03028×32i1ZZFBE..ZZE122;1ZZFE..ZZE122..WGN;1ZZFE..ZZE122..ATM..SEG..SED;1ZZFE..ZZE122..(GLI,XEI)..SED200408

13751LIFTER, VALVE

main13751-16010×16i1CDFTV..CDE120200205-200408

main13751-22040×16i1ZZFE,3ZZFE..ZZE12#..BZ..SED200205-200408

T=5.06

main13751-22050×16i1ZZFE,3ZZFE..ZZE12#..VEN200205-200508

T=5.08

main13751-22060×16i1ZZFE,3ZZFE..ZZE12#..VEN200205-200508

T=5.10

main13751-22070×16i1ZZFE..ZZE122..WGN;1ZZFBE,3ZZFE..ZZE12#;1ZZFE..ZZE122..ATM..SEG..SED;1ZZFE..ZZE122..(GLI,XEI)..SED200408

T=5.12

main13751-22080×16i1ZZFE,3ZZFE..ZZE12#..BZ..SED200205-200408

T=5.14

main13751-22090×16i1ZZFE..ZZE122..WGN200205-200705

T=5.16

main13751-22100×16i1ZZFE..ZZE122..WGN200205-200705

T=5.18

main13751-22110×16i1ZZFE,3ZZFE..ZZE12#..VEN200205-200508

T=5.20

main13751-22120×16i1ZZFE,3ZZFE..ZZE12#..BZ..SED200205-200408

T=5.22

main13751-22130×16i1ZZFE..ZZE122..WGN;1ZZFBE,3ZZFE..ZZE12#;1ZZFE..ZZE122..ATM..SEG..SED;1ZZFE..ZZE122..(GLI,XEI)..SED200408

T=5.24

main13751-22140×16i1ZZFE,3ZZFE..ZZE12#..VEN200205-200508

T=5.26

main13751-22150×16i1ZZFE..ZZE122..WGN200205-200705

T=5.28

main13751-22160×16i1ZZFE..ZZE122..WGN200205-200705

T=5.30

main13751-22170×16i1ZZFE..ZZE122..WGN200205-200705

T=5.32

main13751-22180×16i1ZZFE..ZZE122..WGN200205-200705

T=5.34

main13751-22190×16i1ZZFE,3ZZFE..ZZE12#..VEN200205-200508

T=5.36

main13751-22200×16i1ZZFE..ZZE122..WGN200205-200705

T=5.38

main13751-22210×16i1ZZFE..ZZE122..WGN;1ZZFBE,3ZZFE..ZZE12#;1ZZFE..ZZE122..ATM..SEG..SED;1ZZFE..ZZE122..(GLI,XEI)..SED200408

T=5.40

main13751-22220×16i1ZZFE..ZZE122..WGN200205-200705

T=5.42

main13751-22230×16i1ZZFE,3ZZFE..ZZE12#..BZ..SED200205-200408

T=5.44

main13751-22240×16i1ZZFE,3ZZFE..ZZE12#..VEN200205-200508

T=5.46

main13751-22250×16i1ZZFE,3ZZFE..ZZE12#..BZ..SED200205-200408

T=5.48

main13751-22260×16i1ZZFE,3ZZFE..ZZE12#..BZ..SED200205-200408

T=5.50

main13751-22270×16i1ZZFE..ZZE122..WGN;1ZZFBE,3ZZFE..ZZE12#;1ZZFE..ZZE122..ATM..SEG..SED;1ZZFE..ZZE122..(GLI,XEI)..SED200408

T=5.52

main13751-22280×16i1ZZFE..ZZE122..WGN;1ZZFBE,3ZZFE..ZZE12#;1ZZFE..ZZE122..ATM..SEG..SED;1ZZFE..ZZE122..(GLI,XEI)..SED200408

T=5.54

main13751-22290×16i1ZZFE,3ZZFE..ZZE12#..BZ..SED200205-200408

T=5.56

main13751-22300×16i1ZZFE,3ZZFE..ZZE12#..VEN200205-200508

T=5.58

main13751-22310×16i1ZZFE,3ZZFE..ZZE12#..VEN200205-200508

T=5.60

main13751-22320×16i1ZZFE..ZZE122..WGN200205-200705

T=5.62

main13751-22330×16i1ZZFE,3ZZFE..ZZE12#..VEN200205-200508

T=5.64

main13751-22340×16i1ZZFE,3ZZFE..ZZE12#..BZ..SED200205-200408

T=5.66

main13751-22350×16i1ZZFE..ZZE122..WGN;1ZZFBE,3ZZFE..ZZE12#;1ZZFE..ZZE122..ATM..SEG..SED;1ZZFE..ZZE122..(GLI,XEI)..SED200408

T=5.68

main13751-22360×16i1ZZFE..ZZE122..WGN200205-200705

T=5.70

main13751-22370×16i1ZZFE,3ZZFE..ZZE12#..BZ..SED200205-200408

T=5.72

main13751-22380×16i1ZZFE..ZZE122..WGN200205-200705

T=5.74

main13751-46030×16i1ZZFE..ZZE122..XEI..SED;1ZZFE..ZZE122..ATM..SEG..SED200612-200803

T=5.06,PERU SPEC

main13751-46040×16i1ZZFE..ZZE122..XEI..SED;1ZZFE..ZZE122..ATM..SEG..SED200612-200803

T=5.08,PERU SPEC

main13751-46050×16i1ZZFE..ZZE122..XEI..SED;1ZZFE..ZZE122..ATM..SEG..SED200612-200803

T=5.10,PERU SPEC

main13751-46060×16i1ZZFE..ZZE122..XEI..SED;1ZZFE..ZZE122..ATM..SEG..SED200612-200803

T=5.12,PERU SPEC

main13751-46070×16i1ZZFE..ZZE122..XEI..SED;1ZZFE..ZZE122..ATM..SEG..SED200612-200803

T=5.14,PERU SPEC

main13751-46080×16i1ZZFE..ZZE122..XEI..SED;1ZZFE..ZZE122..ATM..SEG..SED200612-200803

T=5.16,PERU SPEC

main13751-46090×16i1ZZFE..ZZE122..XEI..SED;1ZZFE..ZZE122..ATM..SEG..SED200612-200803

T=5.18,PERU SPEC

main13751-46100×16i1ZZFE..ZZE122..XEI..SED;1ZZFE..ZZE122..ATM..SEG..SED200612-200803

T=5.20,PERU SPEC

main13751-46110×16i1ZZFE..ZZE122..XEI..SED;1ZZFE..ZZE122..ATM..SEG..SED200612-200803

T=5.22,PERU SPEC

main13751-46120×16i1ZZFE..ZZE122..XEI..SED;1ZZFE..ZZE122..ATM..SEG..SED200612-200803

T=5.24,PERU SPEC

main13751-46130×16i1ZZFE..ZZE122..XEI..SED;1ZZFE..ZZE122..ATM..SEG..SED200612-200803

T=5.26,PERU SPEC

main13751-46140×16i1ZZFE..ZZE122..XEI..SED;1ZZFE..ZZE122..ATM..SEG..SED200612-200803

T=5.28,PERU SPEC

main13751-46150×16i1ZZFE..ZZE122..XEI..SED;1ZZFE..ZZE122..ATM..SEG..SED200612-200803

T=5.30,PERU SPEC

main13751-46160×16i1ZZFE..ZZE122..XEI..SED;1ZZFE..ZZE122..ATM..SEG..SED200612-200803

T=5.32,PERU SPEC

main13751-46170×16i1ZZFE..ZZE122..XEI..SED;1ZZFE..ZZE122..ATM..SEG..SED200612-200803

T=5.34,PERU SPEC

main13751-46180×16i1ZZFE..ZZE122..XEI..SED;1ZZFE..ZZE122..ATM..SEG..SED200612-200803

T=5.36,PERU SPEC

main13751-46190×16i1ZZFE..ZZE122..XEI..SED;1ZZFE..ZZE122..ATM..SEG..SED200612-200803

T=5.38,PERU SPEC

main13751-46200×16i1ZZFE..ZZE122..XEI..SED;1ZZFE..ZZE122..ATM..SEG..SED200612-200803

T=5.40,PERU SPEC

main13751-46210×16i1ZZFE..ZZE122..XEI..SED;1ZZFE..ZZE122..ATM..SEG..SED200612-200803

T=5.42,PERU SPEC

main13751-46220×16i1ZZFE..ZZE122..XEI..SED;1ZZFE..ZZE122..ATM..SEG..SED200612-200803

T=5.44,PERU SPEC

main13751-46230×16i1ZZFE..ZZE122..XEI..SED;1ZZFE..ZZE122..ATM..SEG..SED200612-200803

T=5.46,PERU SPEC

main13751-46240×16i1ZZFE..ZZE122..XEI..SED;1ZZFE..ZZE122..ATM..SEG..SED200612-200803

T=5.48,PERU SPEC

main13751-46250×16i1ZZFE..ZZE122..XEI..SED;1ZZFE..ZZE122..ATM..SEG..SED200612-200803

T=5.50,PERU SPEC

main13751-46260×16i1ZZFE..ZZE122..XEI..SED;1ZZFE..ZZE122..ATM..SEG..SED200612-200803

T=5.52,PERU SPEC

main13751-46270×16i1ZZFE..ZZE122..XEI..SED;1ZZFE..ZZE122..ATM..SEG..SED200612-200803

T=5.54,PERU SPEC

main13751-46280×16i1ZZFE..ZZE122..XEI..SED;1ZZFE..ZZE122..ATM..SEG..SED200612-200803

T=5.56,PERU SPEC

main13751-46290×16i1ZZFE..ZZE122..XEI..SED;1ZZFE..ZZE122..ATM..SEG..SED200612-200803

T=5.58,PERU SPEC

main13751-46300×16i1ZZFE..ZZE122..XEI..SED;1ZZFE..ZZE122..ATM..SEG..SED200612-200803

T=5.60,PERU SPEC

main13751-46310×16i1ZZFE..ZZE122..XEI..SED;1ZZFE..ZZE122..ATM..SEG..SED200612-200803

T=5.62,PERU SPEC

main13751-46320×16i1ZZFE..ZZE122..XEI..SED;1ZZFE..ZZE122..ATM..SEG..SED200612-200803

T=5.64,PERU SPEC

main13751-46330×16i1ZZFE..ZZE122..XEI..SED;1ZZFE..ZZE122..ATM..SEG..SED200612-200803

T=5.66,PERU SPEC

main13751-46340×16i1ZZFE..ZZE122..XEI..SED;1ZZFE..ZZE122..ATM..SEG..SED200612-200803

T=5.68,PERU SPEC

main13751-46350×16i1ZZFE..ZZE122..XEI..SED;1ZZFE..ZZE122..ATM..SEG..SED200612-200803

T=5.70,PERU SPEC

main13751-46360×16i1ZZFE..ZZE122..XEI..SED;1ZZFE..ZZE122..ATM..SEG..SED200612-200803

T=5.72,PERU SPEC

main13751-46370×16i1ZZFE..ZZE122..XEI..SED;1ZZFE..ZZE122..ATM..SEG..SED200612-200803

T=5.74,PERU SPEC

13753SHIM, VALVE ADJUSTING

main13753-27010×16i1CDFTV..CDE120200408

T=2.500

main13753-27030×16i1CDFTV..CDE120200205-200408

T=2.550

main13753-27050×16i1CDFTV..CDE120200205-200408

T=2.600

main13753-27070×16i1CDFTV..CDE120200408

T=2.650

main13753-27090×16i1CDFTV..CDE120200205-200408

T=2.700

main13753-27110×16i1CDFTV..CDE120200205-200408

T=2.750

main13753-27130×16i1CDFTV..CDE120200408

T=2.800

main13753-27150×16i1CDFTV..CDE120200205-200408

T=2.850

main13753-27170×16i1CDFTV..CDE120200205-200408

T=2.900

main13753-27190×16i1CDFTV..CDE120200205-200408

T=2.950

main13753-27210×16i1CDFTV..CDE120200408

T=3.000

main13753-27230×16i1CDFTV..CDE120200205-200408

T=3.050

main13753-27250×16i1CDFTV..CDE120200205-200408

T=3.100

main13753-27270×16i1CDFTV..CDE120200408

T=3.150

main13753-27290×16i1CDFTV..CDE120200408

T=3.200

main13753-27310×16i1CDFTV..CDE120200205-200408

T=3.250

main13753-27330×16i1CDFTV..CDE120200408

T=3.300

7403CAUTION PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 74-03

9010510032

main90105-10032

9010512097

main90105-12097

9017918007

main90179-18007

9020112073

main90201-12073

9025005027

main90250-05027

91511J0820

main91511-J0820

27 parts on this diagram · 2 diagrams in section
