CYLINDER BLOCK

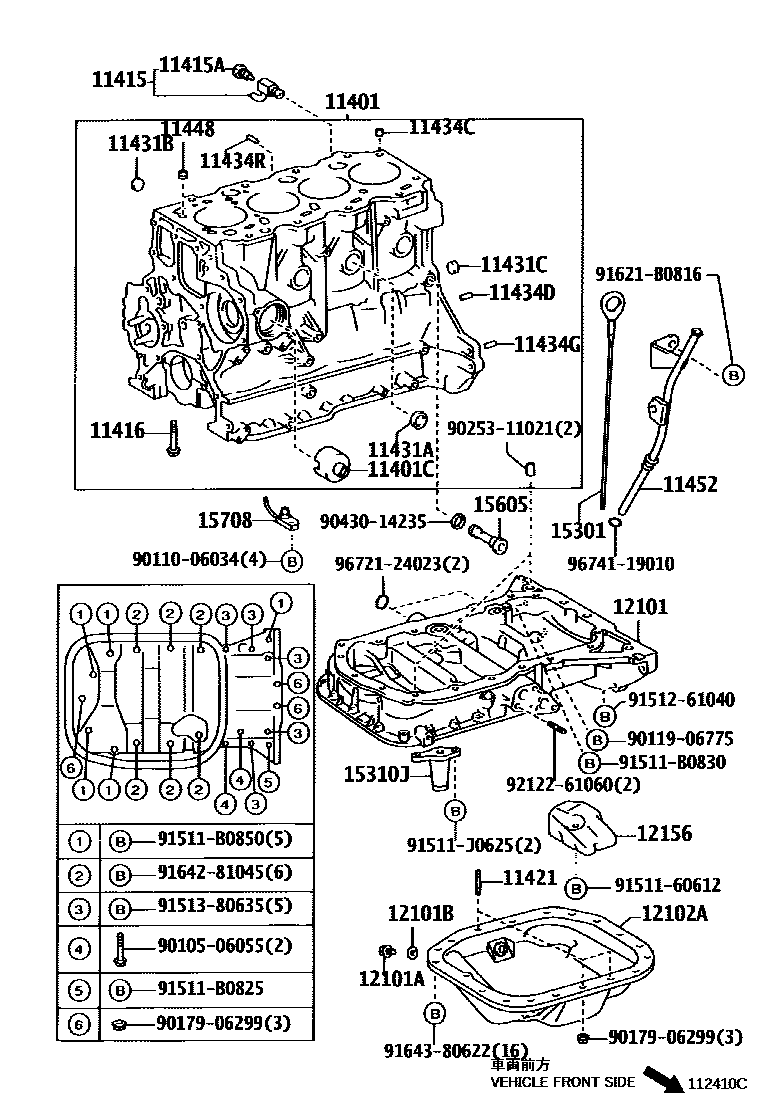

Parts diagram
11401BLOCK SUB-ASSY, CYLINDER
main11401-29705i200205-200408
sub11401-29745
main11401-29745i200408-200803
main11410-09030i200205-200808
(L)
sub11410-29156
sub16258-28030
sub16268-22101
sub16268-22161
main11410-29057i200205-200212
sub11410-29155
main11410-29096i200205-200212
sub11410-29165
main11410-29155i200612-200803
PERU SPEC,TP
sub11410-29156
sub16258-28030
sub16268-22091
sub16268-22101
sub16268-22161
main11410-29155i200212-200808
(J)
sub11410-29156
sub16258-28030
sub16268-22091
sub16268-22101
sub16268-22161
main11410-29156i200808
(J)
main11410-29156i200408-200801
GKN
main11410-29156i200801-200803
(L)
main11410-29165i200212-200808
sub11410-29166
sub16258-28030
sub16268-22021
sub16268-22101
sub16268-22111
sub16268-22161
sub16268-22171
main11410-29166i200808
11401CFLANGE(FOR WATER BY-PASS)
main16353-27010i200205-200305
sub16353-27011
main16353-27011i200305-200408
11415COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)
main90910-09075i200205-200408
sub90910-09129
main90910-09107i200205-200705
11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
main90910-09087i200205-200705
11416BOLT(FOR CRANKSHAFT BEARING CAP SET)
main90910-02135i200205-200408
main91511-K0840i200212-200705
11421BOLT, STUD(FOR OIL PAN)
main90116-06164i200205-200408
main90126-06010i200205-200705
11431APLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
main96411-63500i200205-200408
11431BPLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)
main96411-63000i200205-200408
11431CPLUG, TIGHT, NO.3(FOR CYLINDER BLOCK)
main96411-41800i200205-200408
11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)
main90253-14004i200205-200408
L=20,OD=14
11434DPIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)
main90250-06068i200205-200408
L=11,OD=6
11434GPIN, STRAIGHT(FOR END PLATE)
main90250-10113i200205-200408
11434RPIN, STRAIGHT(FOR DRIVE SHAFT BEARING BRACKET)
main90250-06003i200205-200408
11448ORIFICE, CYLINDER BLOCK OIL
main11448-64010i200205-200408
11452GUIDE, OIL LEVEL GAGE
main11452-0D010i200205-200402
(L)
sub11452-0D011
main11452-0D011i200402-200705
(L)
main11452-22030i200205-200809
(J)
sub11452-22031
sub11459-22010
main11452-22050i200705
sub11452-22051
main11452-27040i200205-200408
12101PAN SUB-ASSY, OIL
main12101-0D020i200408
(L)
sub12101-22024
main12101-0D030i200612-200803
PERU SPEC,(L)
main12101-0D040i200303-200705
(L)
main12101-22024i200205-200705
(J)
main12101-27011i200205-200408
12101APLUG(FOR OIL PAN DRAIN)
main90341-12012i200205-200705
12101BGASKET(FOR OIL PAN DRAIN PLUG)
main90430-12031i200205-200705
12102APAN SUB-ASSY, OIL, NO.2
main12102-27030i200205-200408
12156INSULATOR, OIL PAN
main12156-27030i200205-200408
15301GAGE SUB-ASSY, OIL LEVEL
main15301-0D020i200205-200507
(L)
sub15301-0D021
main15301-0D021i200507-200705
(L)
main15301-22030i200205-200507
(J)
sub15301-22050
main15301-22050i200507-200705
(J)
main15301-22060i200705
main15301-27040i200205-200408
15310JREGULATOR ASSY, OIL
main15310-27020i200205-200408
15605VALVE SUB-ASSY, OIL CHECK
main15703-27010i200205-200408
15708NOZZLE SUB-ASSY, OIL, NO.1
main15790-27020i200205-200408
9010506055
main90105-06055
9011006034
main90110-06034
9011906775
main90119-06775
9017906299
main90179-06299
9025311021
main90253-11021
9043014235
main90430-14235
9151160612
main91511-60612
91511B0825
main91511-B0825
91511B0830
main91511-B0830
91511B0850
main91511-B0850
91511J0625
main91511-J0625
9151261040
main91512-61040
9151380635
main91513-80635
91621B0816
main91621-B0816
9164281045
main91642-81045
9164380622
main91643-80622
9212261060
main92122-61060
9672124023
main96721-24023
9674119010
main96741-19010

43 parts on this diagram · 5 diagrams in section
