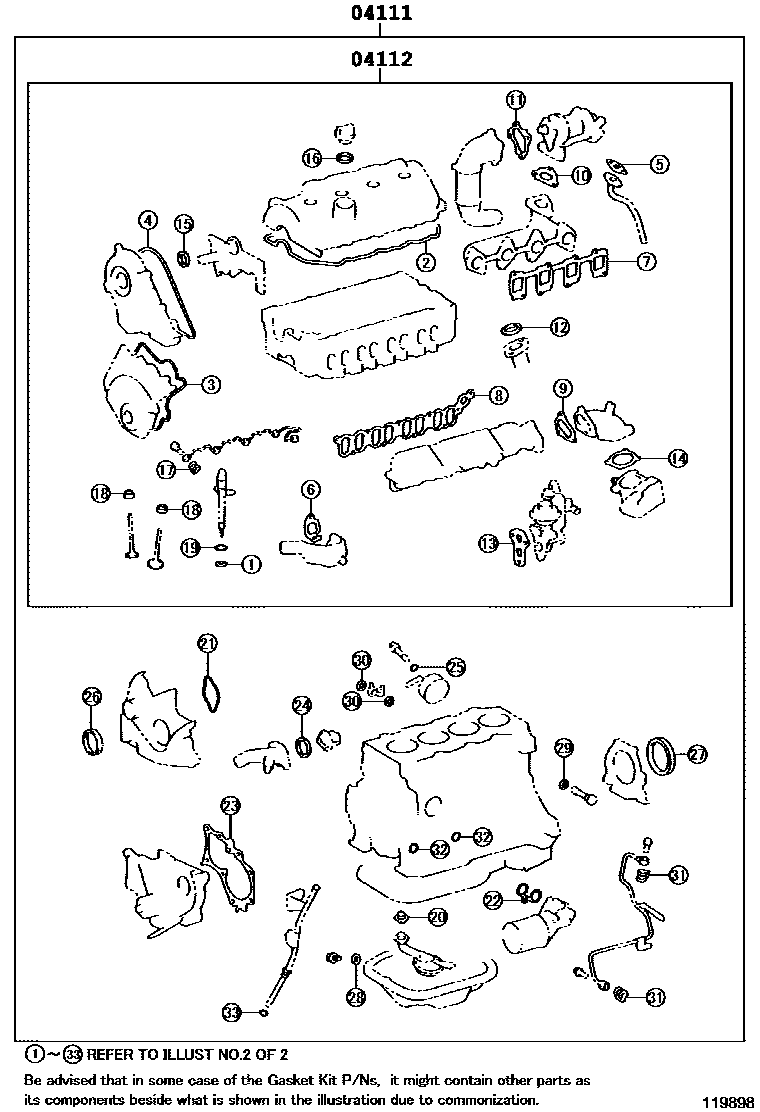

ENGINE OVERHAUL GASKET KIT

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

04111GASKET KIT, ENGINE OVERHAUL

main04111-0D150i1ZZFE..ZZE122200205-200206

sub04111-0D151

main04111-0D151i1ZZFE..ZZE122200206-200302

sub04111-0D152

main04111-0D152i1ZZFE..ZZE122..WGN200302-200705

sub04111-0D153

main04111-0D160i3ZZFE..ZZE121200205-200206

sub04111-0D161

main04111-0D161i3ZZFE..ZZE121200206-200302

sub04111-0D162

main04111-0D162i3ZZFE..ZZE121200302-200508

sub04111-0D163

main04111-0D470i3ZZFE..ZZE121..BZ200612-200803

PERU SPEC

sub04111-0D471

main04111-22400i1ZZFE..ZZE122..XEI..SED;1ZZFE..ZZE122..ATM..SEG..SED200612-200710

PERU SPEC

sub04111-22511

main04111-22511i1ZZFE..ZZE122..BZ..SED200710-200803

PERU SPEC

sub04111-22513

main04111-22530i3ZZFE..ZZE121200602-200806

sub04111-22531

main04111-22531i3ZZFE..ZZE121200806

main04111-22540i3ZZFE..ZZE121200408-200602

sub04111-22530

main04111-22550i1ZZFE..ZZE122..ATM..SEG;1ZZFE..ZZE122..(GLI,XEI)..SED200408-200602

sub04111-22560

main04111-22560i1ZZFE..ZZE122..WGN;1ZZFE..ZZE122..ATM..SEG..SED;1ZZFE..ZZE122..(GLI,XEI)..SED200602-200806

sub04111-22561

main04111-22561i1ZZFE..ZZE122200806

main04111-22900i1ZZFBE..ZZE122200705-200806

sub04111-22901

main04111-22901i1ZZFBE..ZZE122200806

main04111-27100i1CDFTV..CDE120200205-200408

main04111-27180i1CDFTV..CDE120200408-200803

04112GASKET KIT, ENGINE VALVE GRIND

main04112-0D150i1ZZFE..ZZE122200205-200206

sub04112-0D151

main04112-0D151i1ZZFE..ZZE122200206-200302

sub04112-0D152

main04112-0D152i1ZZFE..ZZE122..BZ..SED200302-200705

sub04112-0D153

main04112-0D160i3ZZFE..ZZE121200205-200206

sub04112-0D161

main04112-0D161i3ZZFE..ZZE121200206-200302

sub04112-0D162

main04112-0D162i3ZZFE..ZZE121200302-200508

sub04112-0D163

main04112-0D440i3ZZFE..ZZE121..BZ200612-200710

PERU SPEC

sub04112-0D441

main04112-0D441i3ZZFE..ZZE121..BZ200710-200803

PERU SPEC

sub04112-0D442

main04112-22481i1ZZFE..ZZE122..BZ..SED200710-200803

PERU SPEC

main04112-22500i3ZZFE..ZZE121200602

main04112-22510i3ZZFE..ZZE121200408-200602

sub04112-22500

main04112-22520i1ZZFE..ZZE122..ATM..SEG;1ZZFE..ZZE122..(GLI,XEI)..SED200408-200602

sub04112-22530

main04112-22530i1ZZFE..ZZE122..WGN;1ZZFE..ZZE122..ATM..SEG..SED;1ZZFE..ZZE122..(GLI,XEI)..SED200602

main04112-22680i1ZZFE..ZZE122..XEI..SED;1ZZFE..ZZE122..ATM..SEG..SED200612-200710

PERU SPEC

sub04112-22481

main04112-22740i1ZZFBE..ZZE122200705-200806

sub04112-22741

main04112-22741i1ZZFBE..ZZE122200806

main04112-27090i1CDFTV..CDE120200205-200408

main04112-27170i1CDFTV..CDE120200408-200803

2 parts on this diagram · 8 diagrams in section
