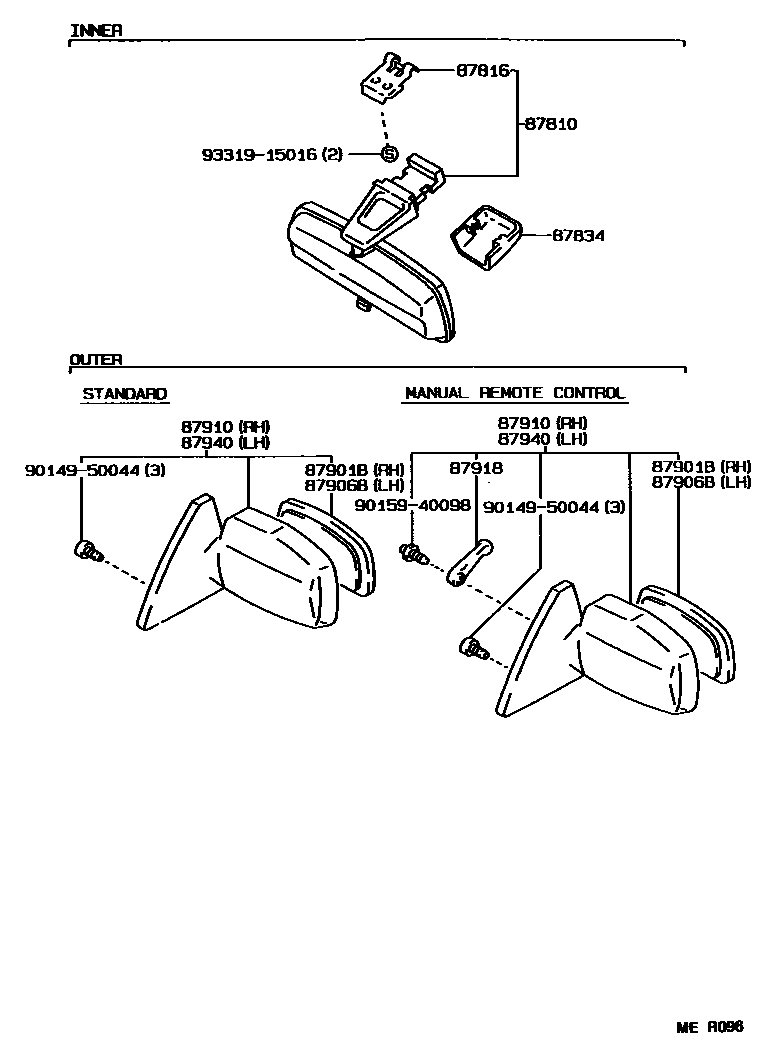

MIRROR

87810MIRROR ASSY, INNER REAR VIEW

main87810-12230-03iAE95..GEN199009-199106

SHADOW GRAY,TRIM1#

main87810-12230-04iAE95..GEN199009-199308

DARK BLUE,TRIM8#

main87810-12230-P0iAE95..GEN199106-199508

SHADOW GRAY,TRIM1#

main87810-12240-B1iAE95..ARL; AE95..GEN199009-199508

GLARE SHIELD,SHADOW GRAY,TRIM1#; SHADOW GRAY,TRIM1#

main87810-12240-J0iAE95..ARL; AE95..GEN199009-199308

DARK BLUE,TRIM8#; GLARE SHIELD,DARK BLUE,TRIM8#

87816SPRING, INNER REAR VIEW MIRROR

main74372-30030iAE95199009-199508

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main87834-12030-B2iAE95199009-199508

SHADOW GRAY,TRIM1#

main87834-12030-J1iAE95..LHD199308-199508

DARK BLUE,TRIM8#

87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH

main87931-1A280iAE95..RHD..GEN199009-199508

main87931-1A290iAE95..LHD199009-199508

main87931-1A310iAE95..SR5199009-199508

main87931-1A610iAE95..XL..ARL199009-199508

87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH

main87961-1A360iAE95..RHD..GEN199009-199508

main87961-1A370iAE95..LHD199009-199508

main87961-1A390iAE95..SR5199009-199508

main87961-1A740iAE95..XL..ARL199009-199508

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-1A260iAE95..RHD..GEN199009-199508

main87910-1A270iAE95..LHD199009-199508

main87910-1A280iAE95..RHD..GEN199009-199508

MANUAL *RCM

main87910-1A290iAE95..LHD199009-199508

MANUAL *RCM

main87910-1A610iAE95..XL..ARL199009-199508

main87910-1A620iAE95..SR5199009-199508

87918KNOB, CONTROL OUTER MIRROR

main87918-12030iAE95..GEN; AE95..XL199009-199508

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-1A340iAE95..RHD..GEN199009-199508

main87940-1A350iAE95..LHD199009-199508

main87940-1A360iAE95..RHD..GEN199009-199508

MANUAL *RCM

main87940-1A370iAE95..LHD199009-199508

MANUAL *RCM

main87940-1A740iAE95..XL..ARL199009-199508

main87940-1A750iAE95..SR5199009-199508

9014950044

main90149-50044

9015940098

main90159-40098

9331915016

main93319-15016

11 parts on this diagram · 1 diagram in section
