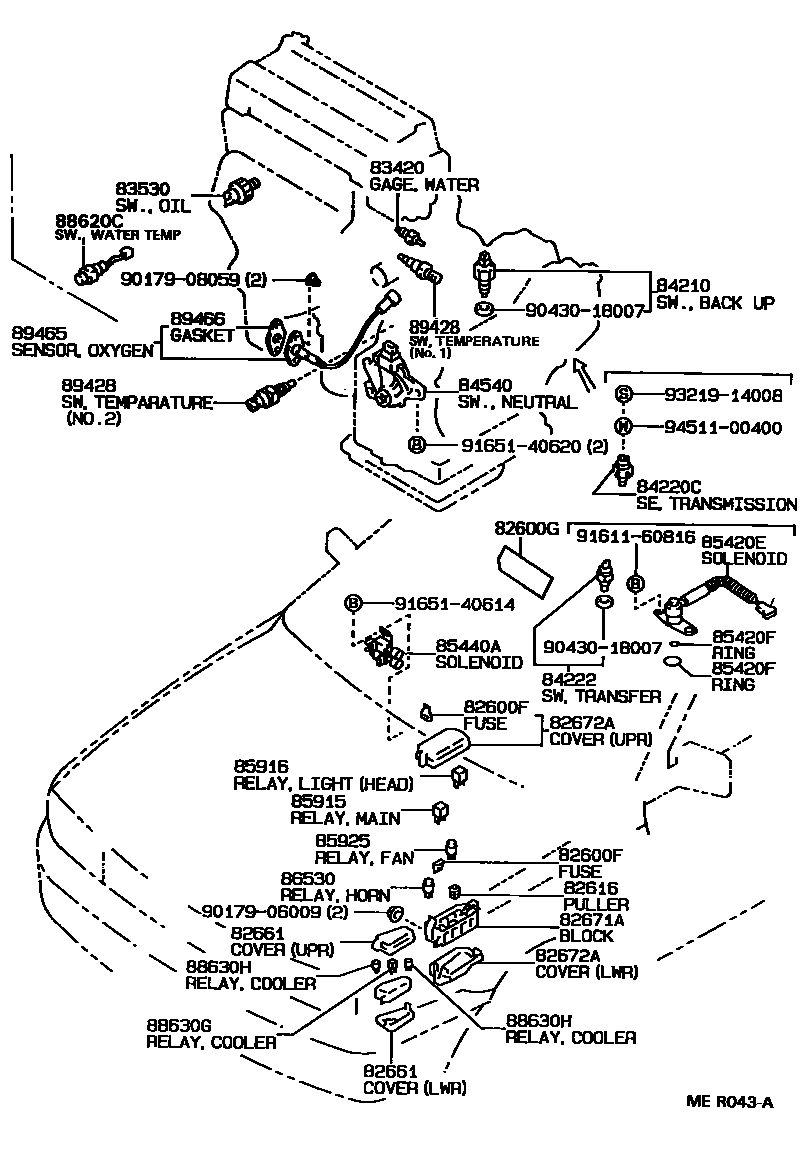

SWITCH & RELAY & COMPUTER
82600FFUSE, FUSE BLOCK
30A,GREEN
10A
15A
20A,YELLOW
7.5A
82600GPLATE, CAUTION(FOR FUSE)
82616PULLER, FUSE
82661COVER, RELAY BLOCK, NO.1
UPR
LWR
82672ACOVER, JUNCTION BLOCK
LWR
UPR
UPR
83420GAGE ASSY, WATER TEMPERATURE SENDER
83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)
sub83530-60050
84210SWITCH ASSY, BACK-UP LAMP
sub84210-52050
84220CSWITCH ASSY, TRANSMISSION POSITION INDICATOR
84222SWITCH, TRANSFER INDICATOR, NO.1
84540SWITCH ASSY, NEUTRAL START
85420ESOLENOID ASSY, TRANSMISSION
85420FRING, O(FOR TRANSMISSION SOLENOID)
ID=10
ID=23
85440ASOLENOID ASSY, FOUR WHEEL DRIVE CONTROL
85915RELAY, MAIN
85916RELAY, LIGHT CONTROL
NIPPONDENSO,TAIL
HEAD
85925RELAY, RADIATOR FAN
86530RELAY ASSY, HORN
NIPPONDENSO
88620CTHERMO SWITCH ASSY
88630GRELAY ASSY, COOLER
88630HRELAY ASSY, COOLER
89428SWITCH, TEMPERATURE DETECT, NO.2
NO.2
89465SENSOR, OXYGEN
89466GASKET, OXYGEN SENSOR
9017906009
main90179-06009
9017908059
main90179-08059
9043018007
main90430-18007
9161160816
main91611-60816
9165140614
main91651-40614
9165140620
main91651-40620
9321914008
main93219-14008
9451100400
main94511-00400
33 parts on this diagram · 4 diagrams in section
