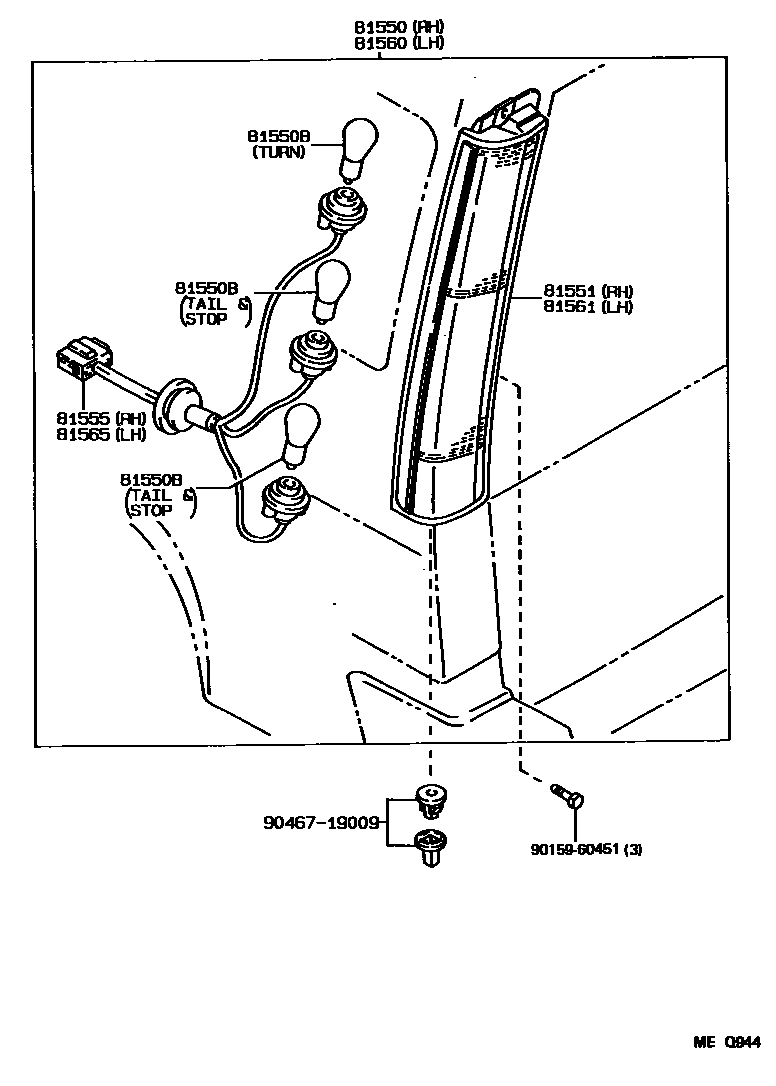

REAR COMBINATION LAMP

0001 1 0002 1

81550LAMP ASSY, REAR COMBINATION, RH

main81550-1A451iAE95..GEN199009-199508

main81550-1A470iAE95..ARL199009-199210

main81550-1A471iAE95..ARL199210-199508

81550BBULB(FOR REAR COMBINATION LAMP)

main99132-11210×2iAE95199009-199508

12V 21W

main99132-21210×4iAE95..ARL; AE95..GEN199009-199508

12V 21/5W

81551LENS, REAR COMBINATION LAMP, RH

main81551-1A451iAE95..GEN199009-199508

main81551-1A470iAE95..ARL199009-199210

main81551-1A471iAE95..ARL199210-199508

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-1A450iAE95..GEN199009-199508

main81555-1A470iAE95..ARL199009-199508

81560LAMP ASSY, REAR COMBINATION, LH

main81560-1A421iAE95..GEN199009-199508

main81560-1A440iAE95..ARL199009-199210

main81560-1A441iAE95..ARL199210-199508

81561LENS, REAR COMBINATION LAMP, LH

main81561-1A421iAE95..GEN199009-199508

main81561-1A440iAE95..ARL199009-199210

main81561-1A441iAE95..ARL199210-199508

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-1A450iAE95..GEN199009-199508

main81555-1A470iAE95..ARL199009-199508

9015960451

main90159-60451

9046719009

main90467-19009

9 parts on this diagram · 2 diagrams in section
