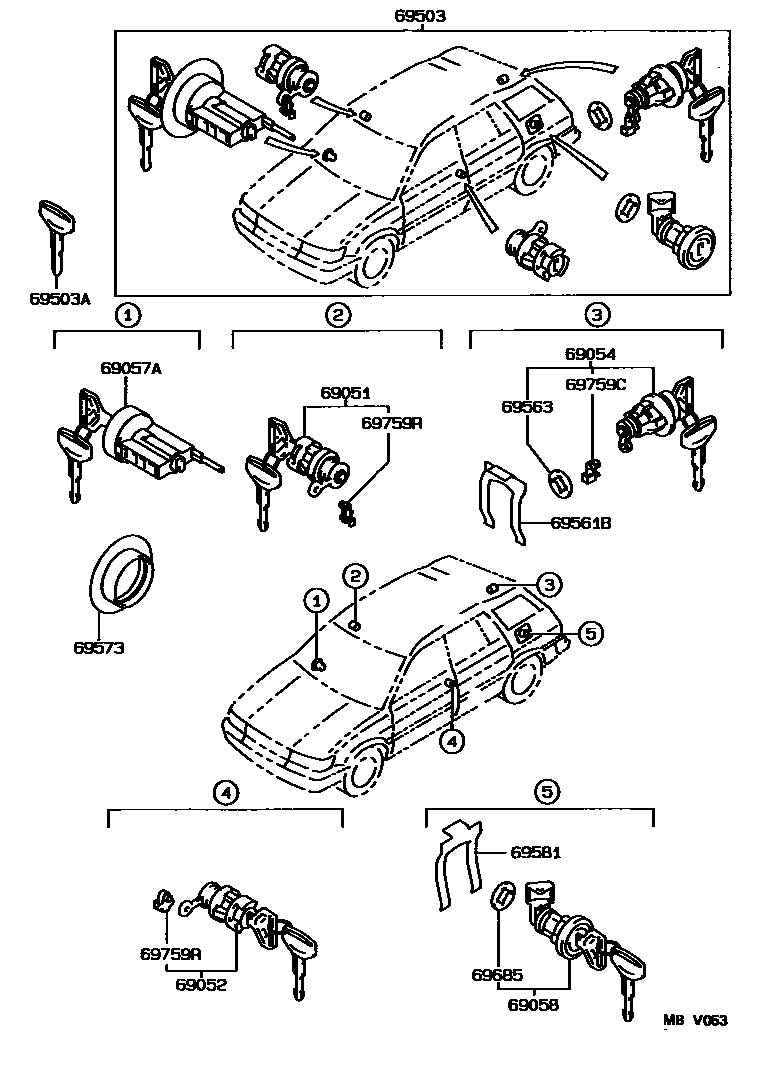

LOCK CYLINDER SET

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-12200iAE95..GEN199104-199508

main69051-12210iAE95..ARL199104-199508

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-12200iAE95199009-199104

main69052-12210iAE95..ARL199104-199508

69054CYLINDER & KEY SET, BACK DOOR LOCK

main69055-12540iAE95..GEN199104-199508

main69055-12560iAE95..ARL199104-199508

69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-12090iAE95199009-199104

main69057-12100iAE95..ARL199104-199508

69058CYLINDER & KEY SET, FUEL FILLER LID

main69058-12120iAE95..XL..ARL199009-199104

main69058-12150iAE95..XL..ARL199104-199508

69503CYLINDER SET, LOCK

main69005-1A160iAE95..GEN;AE95..SR5; AE95..XL..ARL199009-199104

W/O(KEY CYLINDER FOR FUEL LID)

main69005-1A170iAE95..SR5; AE95..XL..ARL199104-199508

W/O(KEY CYLINDER FOR FUEL LID)

main69005-1A220iAE95..XL..ARL199009-199104

main69005-1A221iAE95..XL..ARL199104-199508

69503AKEY, BLANK

main90999-00130iAE95199009-199508

MASTER KEY

main90999-00132iAE95199009-199508

MASTER KEY,W(*68)

69561BRETAINER, BACK DOOR LOCK CYLINDER

main69511-32010iAE95199009-199508

69563PAD, BACK DOOR LOCK CYLINDER

main69563-12040iAE95199009-199508

69573PAD, IGNITION SWITCH LOCK CYLINDER

main69573-12010iAE95199009-199508

69581RETAINER, FUEL FILLER LID CYLINDER

main69581-12020iAE95..XL..ARL199009-199508

69685PAD, LOCK CYLINDER

main69513-32010iAE95..XL..ARL199009-199508

69759CSNAP, BACK DOOR LOCK CYLINDER

main69759-20090iAE95199009-199508

69759RSNAP, FRONT DOOR LOCK CYLINDER

main69759-30040iAE95199009-199508

RH

main69759-30050iAE95199009-199508

LH

14 parts on this diagram · 1 diagram in section
