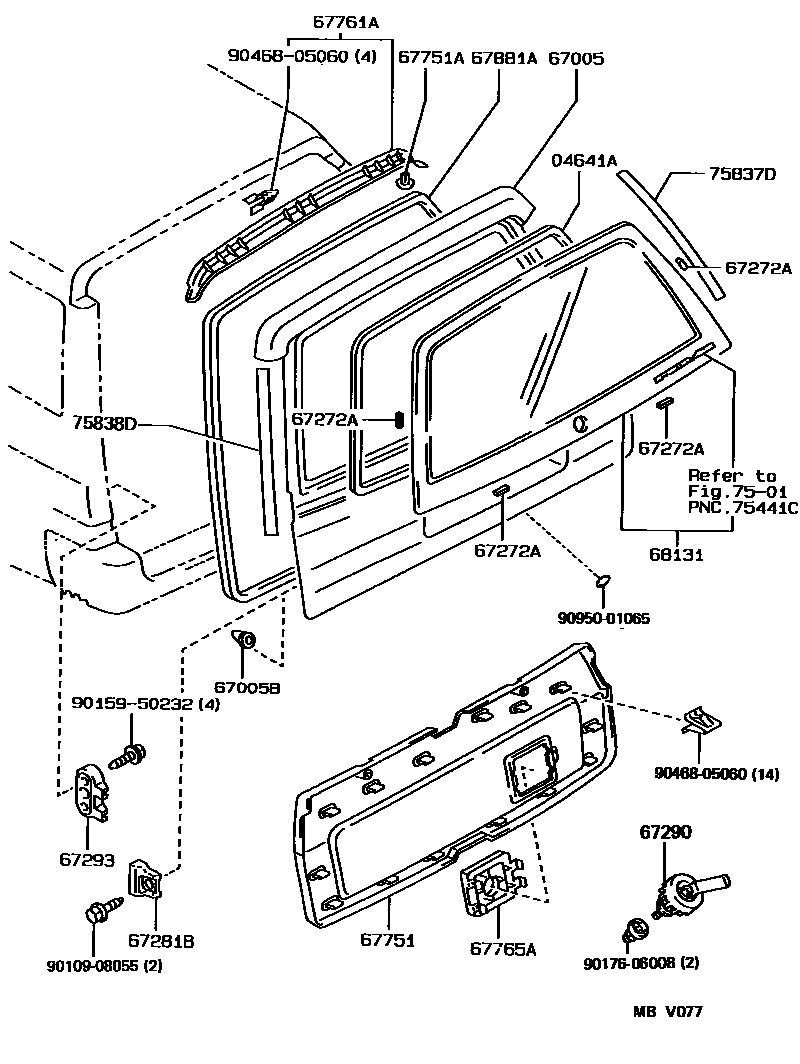

BACK DOOR PANEL & GLASS

04641ADAM KIT, BACK WINDOW GLASS ADHESIVE

main04562-12010iAE95199009-199508

67005PANEL SUB-ASSY, BACK DOOR

main67005-1A461iAE95..GEN199009-199508

main67005-1A481iAE95..GEN199009-199508

EUROPE SPEC

main67005-1A551iAE95..ARL199009-199508

67005BCUSHION(FOR BACK DOOR PANEL)

main64459-12010×2iAE95199009-199508

67272ACUSHION, BACK DOOR STOPPER, NO.2

main67272-12030×8iAE95199009-199508

67281BSTOPPER, BACK DOOR, LOWER

main67283-12010iAE95199009-199508

RH

main67284-12010iAE95199009-199508

LH

67290DAMPER ASSY, BACK DOOR

main67290-13020×2iAE95..4FC199009-199508

67293CUSHION, BACK DOOR LOWER STOPPER

main67293-20020×2iAE95199009-199508

67751BOARD, BACK DOOR TRIM

main67751-12110-03iAE95..GEN199009-199508

SHADOW GRAY,TRIM1#

main67751-12110-04iAE95..GEN199009-199308

DARK BLUE,TRIM8#

main67751-12120-03iAE95..RHD..GEN199009-199308

NEW ZEALAND SPEC,SHADOW GRAY,TRIM1#

main67751-12120-04iAE95..ARL; AE95..RHD..GEN199009-199308

DARK BLUE,TRIM8#; NEW ZEALAND SPEC,DARK BLUE,TRIM8#

67751ACLIP(FOR BACK DOOR TRIM BOARD)

main90467-05062-B0×2iAE95199009-199508

SHADOW GRAY,TRIM1#

main90467-05062-J0×2iAE95199009-199308

DARK BLUE,TRIM8#

67761ACOVER, BACK DOOR TRIM

main67761-12140-03iAE95199009-199508

SHADOW GRAY,TRIM1#

main67761-12140-04iAE95199009-199308

DARK BLUE,TRIM8#

67765ACOVER, BACK DOOR SERVICE HOLE, NO.1

main67765-12080-03iAE95199009-199508

SHADOW GRAY,TRIM1#

main67765-12080-04iAE95..LHD199308-199508

DARK BLUE,TRIM8#

67881AWEATHERSTRIP, BACK DOOR

main67881-12220iAE95199009-199508

68131GLASS, BACK DOOR

main68131-12870iAE95..GEN199009-199508

*TT,T=3.5

main68131-12890iAE95..GEN199009-199508

*EHTT,T=3.5,HEAVY DEFOGGER

main68131-1A200iAE95..RHD..GEN199009-199308

*EHTT,T=3.5,NEW ZEALAND SPEC & HEAVY DEFOGGER

7501EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 75-01

75837DCOVER, BACK DOOR FINISH, RH

main75837-12050iAE95199009-199508

75838DCOVER, BACK DOOR FINISH, LH

main75837-12050iAE95199009-199508

9010908055

main90109-08055

9015950232

main90159-50232

9017606008

main90176-06008

9046805060

main90468-05060

9095001065

main90950-01065

21 parts on this diagram · 1 diagram in section
