INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

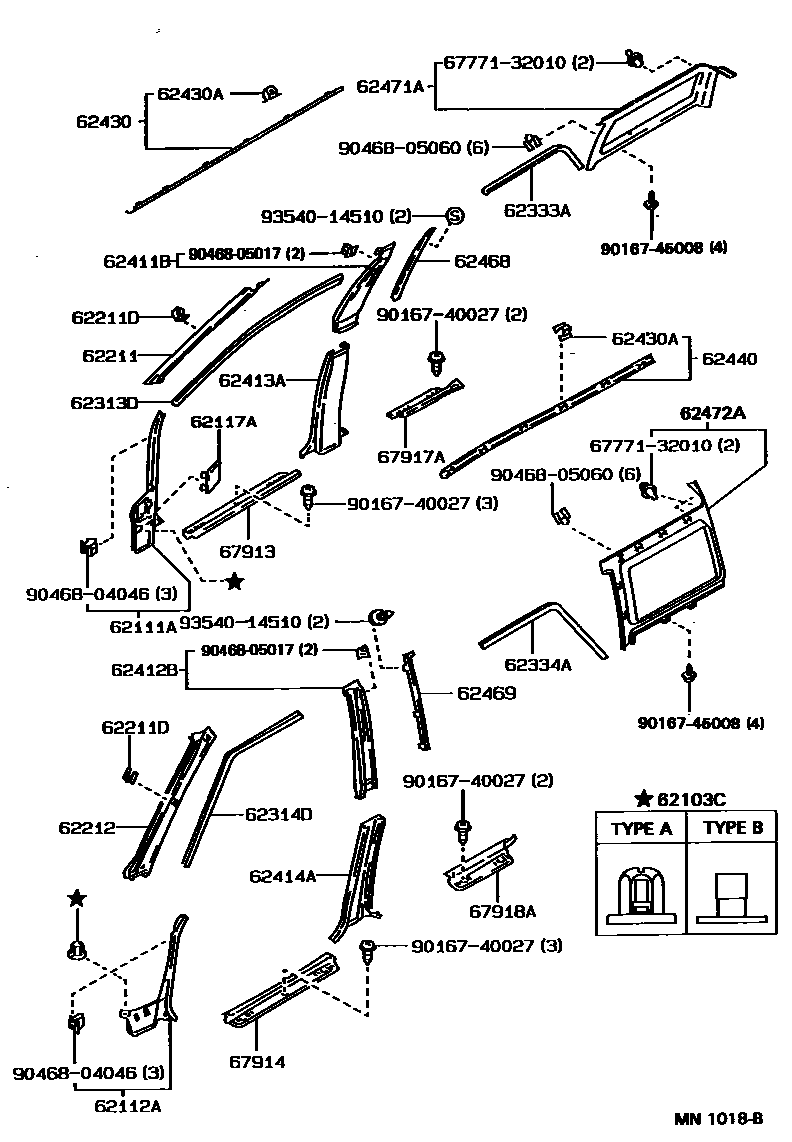

Parts diagram
62103CCLIP, COWL SIDE TRIM BOARD SET
main90467-05050-01i199009-199211
BLACK,TRIM1#,8#,TYPE A
sub90467-05050
main90467-05050-22i199308-199508
BLACK,TRIM1#,TYPE A
sub90467-05050
main90467-05050-22i199211-199508
BLACK,TRIM1#,8#,TYPE A
sub90467-05050
main90467-08160i199108-199508
TYPE B
62111ATRIM SUB-ASSY, COWL SIDE, RH
main62101-12140-03i199009-199508
SHADOW GRAY,TRIM1#
sub62101-12140
main62101-12140-04i199009-199308
DARK BLUE,TRIM8#
sub62101-12140
main62101-12150-03i199009-199508
SHADOW GRAY,TRIM1#
sub62101-12150
main62101-12150-04i199009-199508
DARK BLUE,TRIM8#
sub62101-12150
62112ATRIM SUB-ASSY, COWL SIDE, LH
main62102-12140-03i199009-199508
SHADOW GRAY,TRIM1#
sub62102-12140
main62102-12140-04i199009-199308
DARK BLUE,TRIM8#
sub62102-12140
main62102-12150-03i199009-199508
SHADOW GRAY,TRIM1#
sub62102-12150
main62102-12150-04i199009-199508
DARK BLUE,TRIM8#
sub62102-12150
62117ACOVER, COWL SIDE TRIM SERVICE HOLE
main62117-12090-03i199009-199508
SHADOW GRAY,TRIM1#
sub62117-12090
main62117-12090-04i199009-199308
DARK BLUE,TRIM8#
sub62117-12090
main62117-12100-03i199009-199508
SHADOW GRAY,TRIM1#
sub62117-12100
main62117-12100-04i199009-199508
DARK BLUE,TRIM8#
sub62117-12100
62211GARNISH, FRONT PILLAR, RH
main62211-12210-03i199009-199508
SHADOW GRAY,TRIM1#
main62211-12210-04i199009-199508
DARK BLUE,TRIM8#
62211DCLIP(FOR FRONT BODY PILLAR GARNISH)
main90468-05060i199009-199508
62212GARNISH, FRONT PILLAR, LH
main62212-12210-03i199009-199508
SHADOW GRAY,TRIM1#
main62212-12210-04i199009-199508
DARK BLUE,TRIM8#
62313DTRIM, FRONT DOOR OPENING, RH
main62313-12140-03i199009-199508
SHADOW GRAY,TRIM1#
sub62333-12100
main62313-12140-04i199009-199508
DARK BLUE,TRIM8#
sub62333-12100
62314DTRIM, FRONT DOOR OPENING, LH
main62313-12140-03i199009-199508
SHADOW GRAY,TRIM1#
sub62333-12100
main62313-12140-04i199009-199508
DARK BLUE,TRIM8#
sub62333-12100
62333ATRIM, REAR DOOR OPENING, RH
main62333-12100-03i199009-199508
SHADOW GRAY,TRIM1#
main62333-12100-04i199009-199508
DARK BLUE,TRIM8#
62334ATRIM, REAR DOOR OPENING, LH
main62333-12100-03i199009-199508
SHADOW GRAY,TRIM1#
main62333-12100-04i199009-199508
DARK BLUE,TRIM8#
62411BGARNISH, CENTER PILLAR, UPPER RH
main62411-12380-03i199009-199308
W(FRONT SEAT BELT),SHADOW GRAY,TRIM1#
main62411-12380-03i199009-199508
SHADOW GRAY,TRIM1#
main62411-12380-04i199009-199308
W(FRONT SEAT BELT),DARK BLUE,TRIM8#
main62411-12380-04i199009-199508
DARK BLUE,TRIM8#
main62411-12420-03i199009-199308
SHADOW GRAY,TRIM1#
main62411-12420-04i199009-199308
DARK BLUE,TRIM8#
62412BGARNISH, CENTER PILLAR, UPPER LH
main62412-12380-02i199009-199508
MAROON,TRIM8#
main62412-12380-02i199009-199308
W(FRONT SEAT BELT),MAROON,TRIM8#
main62412-12380-03i199009-199508
SHADOW GRAY,TRIM1#
main62412-12380-03i199009-199308
W(FRONT SEAT BELT),SHADOW GRAY,TRIM1#
main62412-12420-03i199009-199308
SHADOW GRAY,TRIM1#
main62412-12420-04i199009-199308
DARK BLUE,TRIM8#
62413AGARNISH, CENTER PILLAR, LOWER RH
main62413-12170-03i199009-199508
SHADOW GRAY,TRIM1#
main62413-12170-04i199009-199508
DARK BLUE,TRIM8#
62414AGARNISH, CENTER PILLAR, LOWER LH
main62414-12170-03i199009-199508
SHADOW GRAY,TRIM1#
sub62414-12170
main62414-12170-04i199009-199508
DARK BLUE,TRIM8#
sub62414-12170
62430GARNISH ASSY, ROOF SIDE RAIL, RH
main62431-12130-03i199009-199508
SHADOW GRAY,TRIM1#
main62431-12130-04i199009-199508
DARK BLUE,TRIM8#
62430ACLIP, ROOF SIDE RAIL GARNISH
main90468-05017i199009-199508
62440GARNISH ASSY, ROOF SIDE RAIL, LH
main62432-12110-03i199009-199508
SHADOW GRAY,TRIM1#
main62432-12110-04i199009-199508
DARK BLUE,TRIM8#
62468GARNISH, CENTER PILLAR, REAR RH
main62468-12020-03i199009-199508
SHADOW GRAY,TRIM1#
main62468-12020-04i199009-199508
DARK BLUE,TRIM8#
62469GARNISH, CENTER PILLAR, REAR LH
main62469-12020-03i199009-199508
SHADOW GRAY,TRIM1#
main62469-12020-04i199009-199508
DARK BLUE,TRIM8#
62471AGARNISH, ROOF SIDE, INNER RH
main62405-12160-03i199009-199508
SHADOW GRAY,TRIM1#
main62405-12160-04i199009-199508
DARK BLUE,TRIM8#
main62405-12170-03i199009-199508
SHADOW GRAY,TRIM1#
main62405-12170-03i199009-199508
W(3-POINT TYPE REAR SEAT BELT),SHADOW GRAY,TRIM1#
main62405-12170-04i199009-199508
W(3-POINT TYPE REAR SEAT BELT),DARK BLUE,TRIM8#
main62405-12170-04i199009-199308
DARK BLUE,TRIM8#
62472AGARNISH, ROOF SIDE, INNER LH
main62406-12160-03i199009-199508
SHADOW GRAY,TRIM1#
main62406-12160-04i199009-199508
DARK BLUE,TRIM8#
main62406-12170-03i199009-199508
SHADOW GRAY,TRIM1#
main62406-12170-03i199009-199508
W(3-POINT TYPE REAR SEAT BELT),SHADOW GRAY,TRIM1#
main62406-12170-04i199009-199308
DARK BLUE,TRIM8#
main62406-12170-04i199009-199508
W(3-POINT TYPE REAR SEAT BELT),DARK BLUE,TRIM8#
67913PLATE, FRONT DOOR SCUFF, RH
main67913-12160-03i199009-199508
SHADOW GRAY,TRIM1#
sub67913-12160
main67913-12160-04i199009-199508
DARK BLUE,TRIM8#
sub67913-12160
67914PLATE, FRONT DOOR SCUFF, LH
main67913-12160-03i199009-199508
SHADOW GRAY,TRIM1#
sub67913-12160
main67913-12160-04i199009-199508
DARK BLUE,TRIM8#
sub67913-12160
67917APLATE, REAR DOOR SCUFF, RH
main67917-12060-03i199009-199508
SHADOW GRAY,TRIM1#
sub67917-12060
main67917-12060-04i199009-199508
DARK BLUE,TRIM8#
sub67917-12060
67918APLATE, REAR DOOR SCUFF, LH
main67918-12050-03i199009-199508
SHADOW GRAY,TRIM1#
sub67918-12050
main67918-12050-04i199009-199508
DARK BLUE,TRIM8#
sub67918-12050
6777132010WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-32010
9016740027
main90167-40027
9016745008
main90167-45008
9046804046
main90468-04046
9046805017
main90468-05017
9046805060
main90468-05060
9354014510
main93540-14510

33 parts on this diagram · 1 diagram in section
