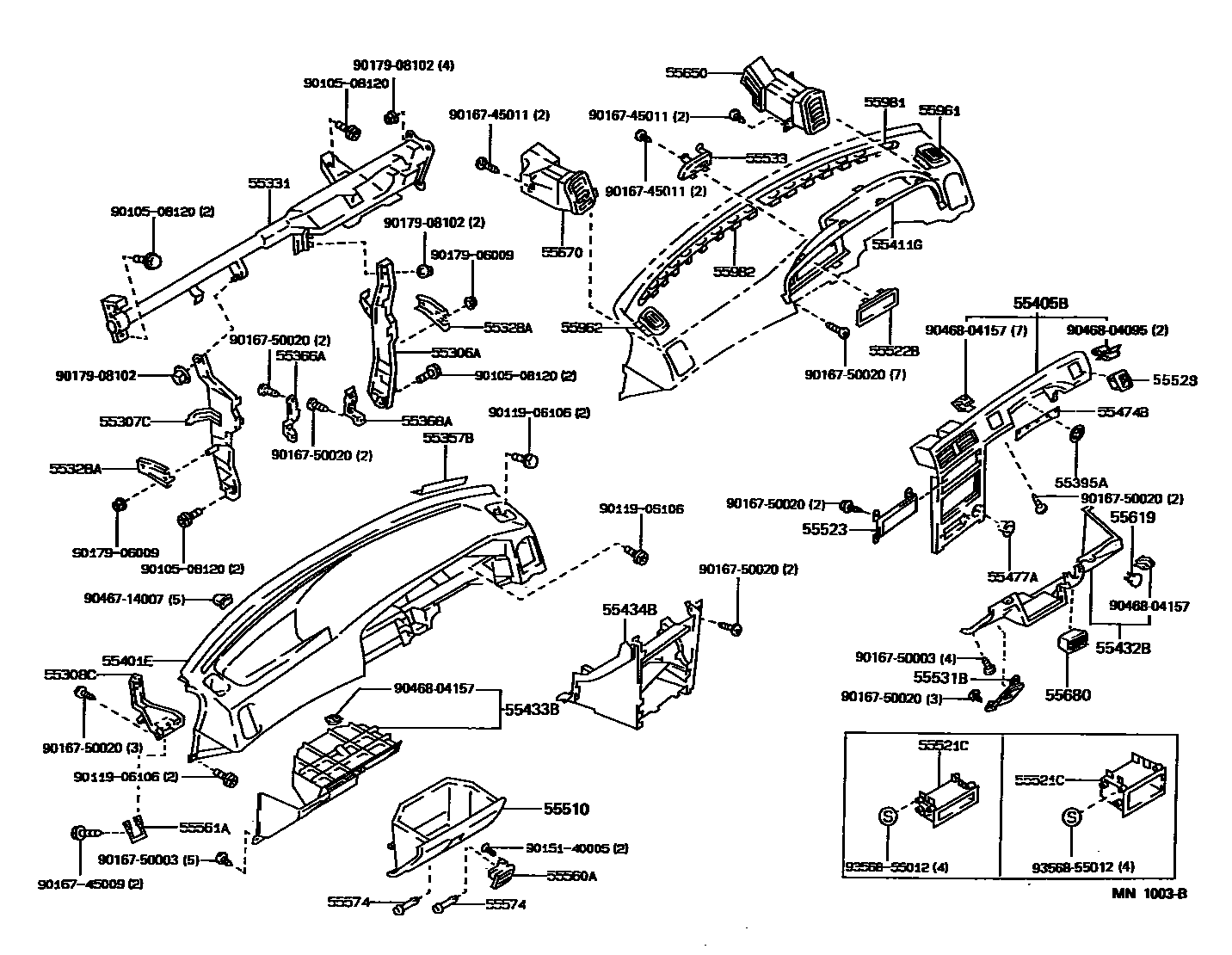

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-12100iAE95..RHD199009-199508

main55306-12110iAE95..LHD199009-199508

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-12150iAE95..RHD199009-199508

main55307-12160iAE95..LHD199009-199508

55308CBRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER

main55308-12150iAE95199009-199508

55328ASTAY, INSTRUMENT PANEL, NO.3

main55328-12040×2iAE95199009-199508

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-12160iAE95..RHD199009-199508

main55330-12170iAE95..LHD199009-199508

55357BCUSHION, INSTRUMENT PANEL, NO.3

main55357-22010×2iAE95199009-199508

55366ABRACKET, RADIO MOUNTING, NO.1

main55366-12010iAE95..RHD199009-199508

main55366-12020iAE95..LHD199009-199508

55368ABRACKET, RADIO MOUNTING, NO.2

main55368-12010iAE95..RHD199009-199508

main55368-12020iAE95..LHD199009-199508

55395ARETAINER, INSTRUMENT PANEL CLAMP

main55395-12010×5iAE95199009-199308

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55401-12230-03iAE95..RHD..GEN199009-199301

SHADOW GRAY,TRIM1#

main55401-12230-04iAE95..RHD..GEN199009-199301

DARK BLUE,TRIM8#

main55401-12250-03iAE95..RHD199301-199508

SHADOW GRAY,TRIM1#

main55401-12250-04iAE95..RHD199301-199308

DARK BLUE,TRIM8#

main55401-12261-03iAE95..LHD199009-199508

SHADOW GRAY,TRIM1#

main55401-12261-04iAE95..LHD199009-199508

DARK BLUE,TRIM8#

55405BPANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER

main55405-12440-03iAE95..RHD..GEN199009-199508

SHADOW GRAY,TRIM1#

main55405-12440-04iAE95..RHD..GEN199009-199308

DARK BLUE,TRIM8#

main55405-12450-03iAE95..ARL199009-199508

SHADOW GRAY,TRIM1#

main55405-12450-04iAE95..ARL199009-199308

DARK BLUE,TRIM8#

main55405-12460-03iAE95..LHD199009-199508

SHADOW GRAY,TRIM1#

main55405-12460-04iAE95..LHD199009-199508

DARK BLUE,TRIM8#

55411GPANEL, INSTRUMENT CLUSTER FINISH, NO.1

main55411-12810iAE95..RHD199009-199508

main55411-12830iAE95..LHD199009-199508

55432BPANEL, INSTRUMENT PANEL FINISH, LOWER

main55432-12260-03iAE95..4FC199009-199508

SHADOW GRAY,TRIM1#

main55432-12260-04iAE95..4FC199009-199308

DARK BLUE,TRIM8#

main55432-12270-03iAE95..LHD199009-199508

SHADOW GRAY,TRIM1#

main55432-12270-04iAE95..LHD199009-199508

DARK BLUE,TRIM8#

main55432-12300-03iAE95..RHD..5F199009-199508

SHADOW GRAY,TRIM1#

main55432-12300-04iAE95..RHD..5F199009-199308

DARK BLUE,TRIM8#

55433BPANEL, INSTRUMENT PANEL FINISH, LOWER NO.2

main55433-12040-03iAE95..RHD199009-199508

SHADOW GRAY,TRIM1#

main55433-12040-04iAE95..RHD199009-199308

DARK BLUE,TRIM8#

main55433-12060-03iAE95..LHD199009-199508

SHADOW GRAY,TRIM1#

main55433-12060-04iAE95..LHD199009-199508

DARK BLUE,TRIM8#

55434BPANEL, INSTRUMENT PANEL FINISH, LOWER CENTER

main55434-12040-03iAE95..RHD199009-199508

SHADOW GRAY,TRIM1#

main55434-12040-04iAE95..RHD199009-199308

DARK BLUE,TRIM8#

main55434-12050-03iAE95..LHD199009-199508

SHADOW GRAY,TRIM1#

main55434-12050-04iAE95..LHD199009-199508

DARK BLUE,TRIM8#

55474BGARNISH, INSTRUMENT CLUSTER FINISH PANEL

main55474-12120iAE95..LHD;AE95..ARL199308-199508

55477ABEZEL, CIGARETTE LIGHTER HOLE

main55477-12080iAE95199009-199508

55510DOOR ASSY, GLOVE COMPARTMENT

main55550-12250-03iAE95..RHD199009-199508

SHADOW GRAY,TRIM1#

main55550-12250-04iAE95..RHD199009-199308

DARK BLUE,TRIM8#

main55550-12260-03iAE95..LHD199009-199508

SHADOW GRAY,TRIM1#

main55550-12260-04iAE95..LHD199009-199508

DARK BLUE,TRIM8#

55521CCOVER, STEREO OPENING

main55521-16030iAE95..GEN199009-199508

1 DIN SIZE COVER

main55521-16040iAE95199009-199508

55522BCOVER, RADIO TUNER OPENING

main55522-12140iAE95..GEN199009-199508

55523COVER, HEATER CONTROL OPENING

main55523-12080iAE95..RHD..GEN199009-199508

main55523-12090iAE95..LHD199009-199508

55528COVER, AUTO DRIVE OPENING

main55528-12020-03iAE95..RHD199009-199508

SHADOW GRAY,TRIM1#

main55528-12020-04iAE95..RHD199009-199308

DARK BLUE,TRIM8#

55531BCOVER, CHOKE KNOB HOLE

main55531-12120-03iAE95..RHD..5F199009-199508

SHADOW GRAY,TRIM1#

main55531-12120-04iAE95..RHD..5F199009-199308

DARK BLUE,TRIM8#

55533COVER, AUTO CLOCK HOLE

main55533-12090iAE95..RHD..XL199009-199508

main55533-12100iAE95..LHD199009-199508

55560ALOCK ASSY, GLOVE COMPARTMENT DOOR

main55560-16040-03iAE95..RHD199009-199508

SHADOW GRAY,TRIM1#

main55560-16040-14iAE95..RHD199009-199308

DARK BLUE,TRIM8#

main55560-16050-03iAE95..LHD199009-199205

SHADOW GRAY,TRIM1#

main55560-16050-14iAE95..LHD199009-199205

DARK BLUE,TRIM8#

55561ASTRIKER, GLOVE COMPARTMENT DOOR LOCK

main55561-12050iAE95199009-199508

55574SHAFT, GLOVE COMPARTMENT DOOR HINGE

main55574-10010×2iAE95199009-199508

55619COVER, SWITCH HOLE

main55619-14010-04iAE95..GEN199009-199308

DARK BLUE,TRIM8#

main55619-14010-33iAE95..GEN199009-199508

SHADOW GRAY,TRIM1#

55650REGISTER ASSY, INSTRUMENT PANEL, NO.1

main55650-12140-03iAE95..RHD..GEN199009-199508

SHADOW GRAY,TRIM1#

main55650-12140-04iAE95..RHD..GEN199009-199308

DARK BLUE,TRIM8#

main55650-12150-03iAE95..ARL199009-199508

SHADOW GRAY,TRIM1#

main55650-12150-04iAE95..ARL199009-199308

DARK BLUE,TRIM8#

main55650-12160-03iAE95..LHD199009-199508

SHADOW GRAY,TRIM1#

main55650-12160-04iAE95..LHD199009-199508

DARK BLUE,TRIM8#

55670REGISTER ASSY, INSTRUMENT PANEL, NO.3

main55670-12110-03iAE95..RHD..GEN199009-199508

SHADOW GRAY,TRIM1#

main55670-12110-04iAE95..RHD..GEN199009-199308

DARK BLUE,TRIM8#

main55670-12120-03iAE95..LHD199009-199508

SHADOW GRAY,TRIM1#

main55670-12120-04iAE95..LHD199009-199508

DARK BLUE,TRIM8#

main55670-12130-03iAE95..ARL199009-199508

SHADOW GRAY,TRIM1#

main55670-12130-04iAE95..ARL199009-199308

DARK BLUE,TRIM8#

55680REGISTER ASSY, INSTRUMENT PANEL, LOWER NO.1

main55680-14030-13iAE95199009-199308

SHADOW GRAY,TRIM1#

main55680-14030-J0iAE95199009-199308

DARK BLUE,TRIM8#

55961NOZZLE, SIDE DEFROSTER, NO.1

main55961-12140-03iAE95..RHD199009-199508

SHADOW GRAY,TRIM1#

main55961-12140-04iAE95..RHD199009-199308

DARK BLUE,TRIM8#

main55961-12150-03iAE95..LHD199009-199508

SHADOW GRAY,TRIM1#

main55961-12150-04iAE95..LHD199009-199508

DARK BLUE,TRIM8#

55962NOZZLE, SIDE DEFROSTER, NO.2

main55962-12120-03iAE95..RHD199009-199508

SHADOW GRAY,TRIM1#

main55962-12120-04iAE95..RHD199009-199308

DARK BLUE,TRIM8#

main55962-12130-03iAE95..LHD199009-199508

SHADOW GRAY,TRIM1#

main55962-12130-04iAE95..LHD199009-199508

DARK BLUE,TRIM8#

55981GARNISH, DEFROSTER NOZZLE, NO.1

main55981-12030-03iAE95..RHD199009-199508

SHADOW GRAY,TRIM1#

main55981-12030-04iAE95..RHD199009-199308

DARK BLUE,TRIM8#

main55981-12040-03iAE95..LHD199009-199508

SHADOW GRAY,TRIM1#

main55981-12040-04iAE95..LHD199009-199508

DARK BLUE,TRIM8#

55982GARNISH, DEFROSTER NOZZLE, NO.2

main55982-12030-03iAE95..RHD199009-199508

SHADOW GRAY,TRIM1#

main55982-12030-04iAE95..RHD199009-199308

DARK BLUE,TRIM8#

main55982-12040-03iAE95..LHD199009-199508

SHADOW GRAY,TRIM1#

main55982-12040-04iAE95..LHD199009-199508

DARK BLUE,TRIM8#

9010508120

main90105-08120

9011906106

main90119-06106

9015140005

main90151-40005

9016745009

main90167-45009

9016745011

main90167-45011

9016750003

main90167-50003

9016750020

main90167-50020

9017906009

main90179-06009

9017908102

main90179-08102

9046714007

main90467-14007

9046804095

main90468-04095

9046804157

main90468-04157

9356855012

main93568-55012

48 parts on this diagram · 2 diagrams in section
