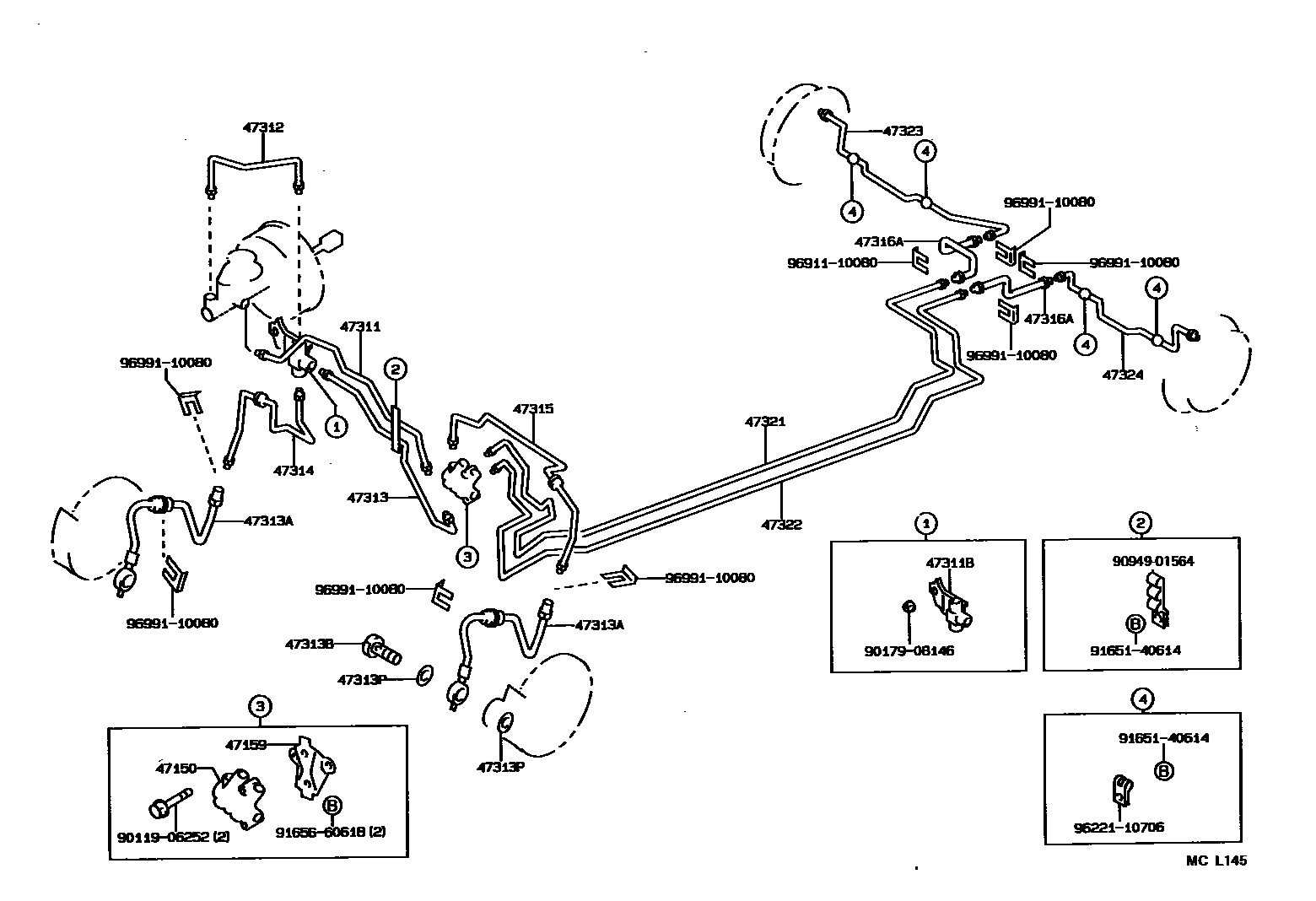

BRAKE TUBE & CLAMP

0001 1 0002 1

47150VALVE ASSY, PROPORTIONING

main47150-12110iAE95199009-199508

sub47150-12250

47159BRACKET, PROPORTIONING VALVE

main47159-12050iAE95..RHD199009-199508

47311TUBE, FRONT BRAKE, NO.1

main47311-12390iAE95..LHD199009-199508

main47311-12430iAE95..RHD199009-199508

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90413-10159iAE95..LHD199009-199508

main90413-10221iAE95..RHD199009-199508

47312TUBE, FRONT BRAKE, NO.2

main47312-12260iAE95..LHD199009-199508

main47312-12270iAE95..RHD199009-199508

47313TUBE, FRONT BRAKE, NO.3

main47313-12190iAE95..LHD199009-199508

main47313-12240iAE95..RHD199009-199508

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02532iAE95199009-199508

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10015iAE95199009-199508

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main90430-10074iAE95199009-199508

47314TUBE, FRONT BRAKE, NO.4

main47314-12260iAE95..RHD199009-199508

main47314-12270iAE95..LHD199009-199508

47315TUBE, FRONT BRAKE, NO.5

main47315-12400iAE95..RHD199009-199508

main47315-12440iAE95..LHD199009-199508

47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

main90947-02558iAE95199009-199508

47321TUBE, REAR BRAKE, NO.1

main47321-12060iAE95..RHD199009-199508

main47321-12070iAE95..LHD199009-199508

47322TUBE, REAR BRAKE, NO.2

main47322-12210iAE95..RHD199009-199508

main47322-12240iAE95..LHD199009-199508

47323TUBE, REAR BRAKE, NO.3

main47323-12220iAE95199009-199508

47324TUBE, REAR BRAKE, NO.4

main47324-12180iAE95199009-199508

9011906252

main90119-06252

9017908146

main90179-08146

9094901564

main90949-01564

9165140614

main91651-40614

9165660618

main91656-60618

9622110706

main96221-10706

9691110080

main96911-10080

9699110080

main96991-10080

24 parts on this diagram · 2 diagrams in section
