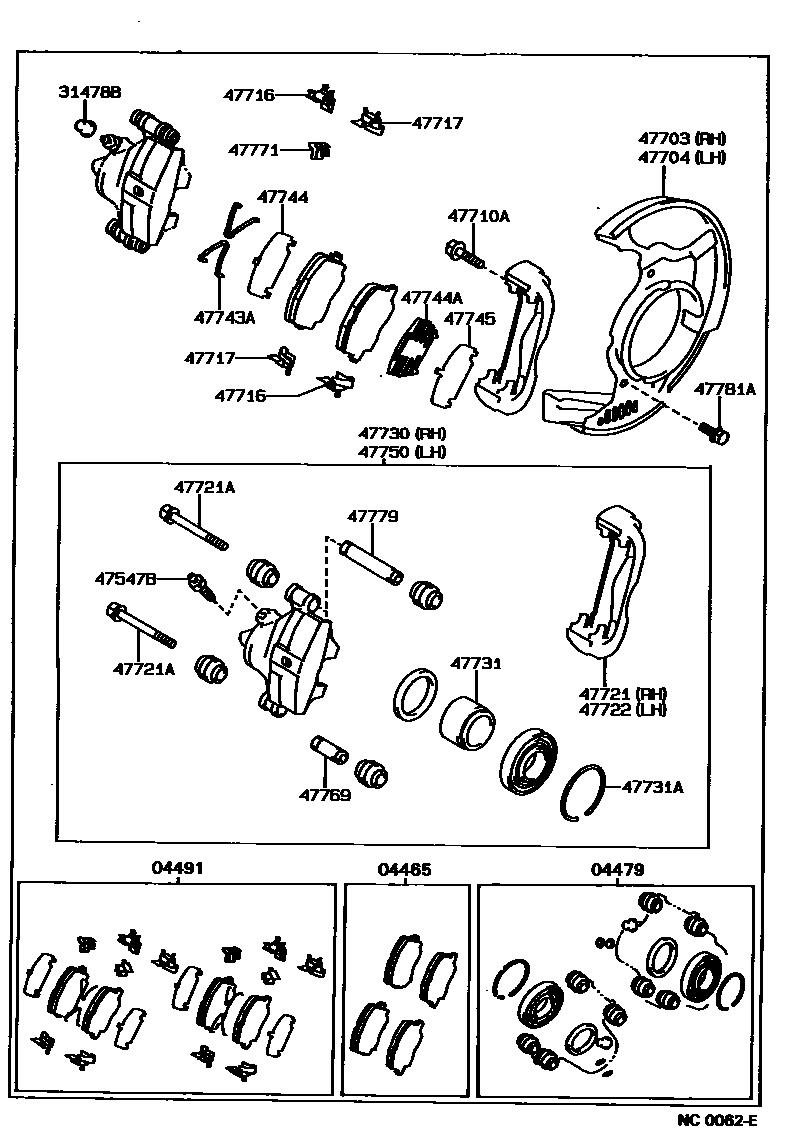

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04465PAD KIT, DISC BRAKE, FRONT

main04465-20020iAE95199009-199011

main04465-20060iAE95199011-199408

main04465-21010iAE95199408-199508

MARK AISIN T536

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-12091iAE95199009-199508

04491PAD KIT, DISC BRAKE, FRONT

main04491-12341iAE95199009-199011

sub04491-12342

main04491-20800iAE95199011-199408

main04491-20801iAE95199408-199505

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010×2iAE95199009-199508

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010×2iAE95199009-199508

47703COVER SUB-ASSY, DISC BRAKE DUST, FRONT RH

main47781-12150iAE95199009-199208

main47781-20290iAE95199208-199508

47704COVER SUB-ASSY, DISC BRAKE DUST, FRONT LH

main47782-12150iAE95199009-199208

main47782-20290iAE95199208-199508

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90119-12040×4iAE95199009-199508

*12-1.25PX25.8-19.5

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-32031×4iAE95199009-199508

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47717-32031×4iAE95199009-199508

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-12120iAE95199009-199508

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90119-09003×2iAE95199009-199508

*9-1.25PX71-25,*9-1.25PX73-25,SUB PIN SIDE

main90119-09004×2iAE95199009-199508

*9-1.25PX91-25,*9-1.25PX93-25,MAIN PIN SIDE

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47721-12120iAE95199009-199508

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-12310iAE95199012-199508

main47730-12350iAE95199009-199012

47731PISTON, FRONT DISC BRAKE

main47731-12150×2iAE95199009-199508

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-61001×2iAE95199009-199508

47743ASPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE)

main47743-12070×4iAE95199010-199508

main47743-32010×4iAE95199009-199010

47744SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)

main47744-16011×2iAE95199009-199011

main47744-32010×2iAE95199011-199508

47744ASHIM, ANTI-SQUEAL, NO.3(FOR FRONT DISC BRAKE)

main47742-32040×2iAE95199009-199508

47745SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE)

main47745-32040×2iAE95199009-199508

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-12310iAE95199012-199508

main47750-12350iAE95199009-199012

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-12030×2iAE95199009-199508

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-32010×2iAE95199009-199508

47779BUSH, CYLINDER SLIDE, NO.2(FOR FRONT DISC BRAKE)

main47779-16010×2iAE95199009-199508

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90109-06134×6iAE95199009-199508

25 parts on this diagram · 2 diagrams in section
