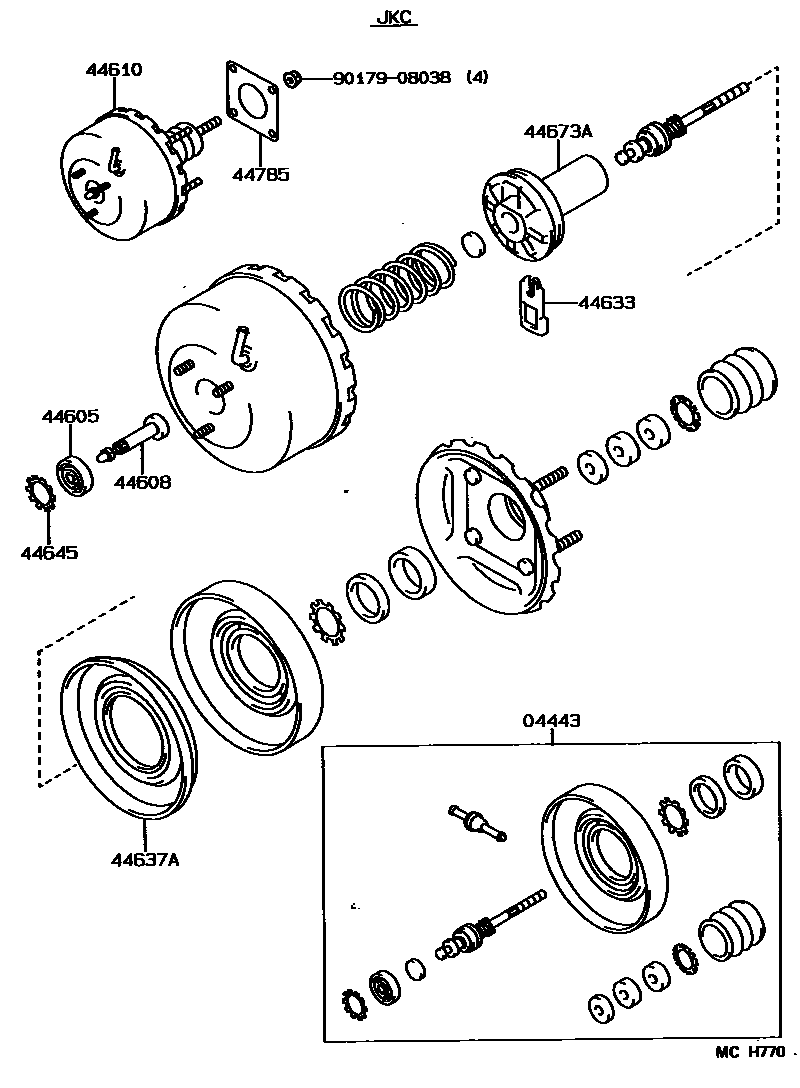

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0004 1

04443BOOSTER KIT, BRAKE

main04443-12500iAE95..RHD..GEN199009-199508

main04443-12590iAE95..ARL199009-199508

main04443-12630iAE95..LHD199009-199508

44605PLATE & SEAL SUB-ASSY, BOOSTER

main44605-10080iAE95..GEN199009-199508

44608PUSH ROD SUB-ASSY, BOOSTER

main44608-32020iAE95..GEN199009-199508

44610BOOSTER ASSY, BRAKE

main44610-12680iAE95..RHD..GEN199009-199508

main44610-12700iAE95..LHD199009-199508

main44610-12730iAE95..ARL199009-199110

main44610-1A760iAE95..ARL199110-199508

44633KEY, BOOSTER VALVE PLUNGER

main44633-28130iAE95..GEN199009-199508

44637APLATE, BOOSTER DIAPHRAGM

main44637-32040iAE95..GEN199009-199508

44645RETAINER, BOOSTER PUSH ROD SEAL

main44645-10080iAE95..GEN199009-199508

44673ABODY, BOOSTER VALVE

main44673-32040iAE95..GEN199009-199508

44785GASKET, BRAKE BOOSTER

main44785-32010iAE95199009-199508

9017908038

main90179-08038

10 parts on this diagram · 4 diagrams in section
