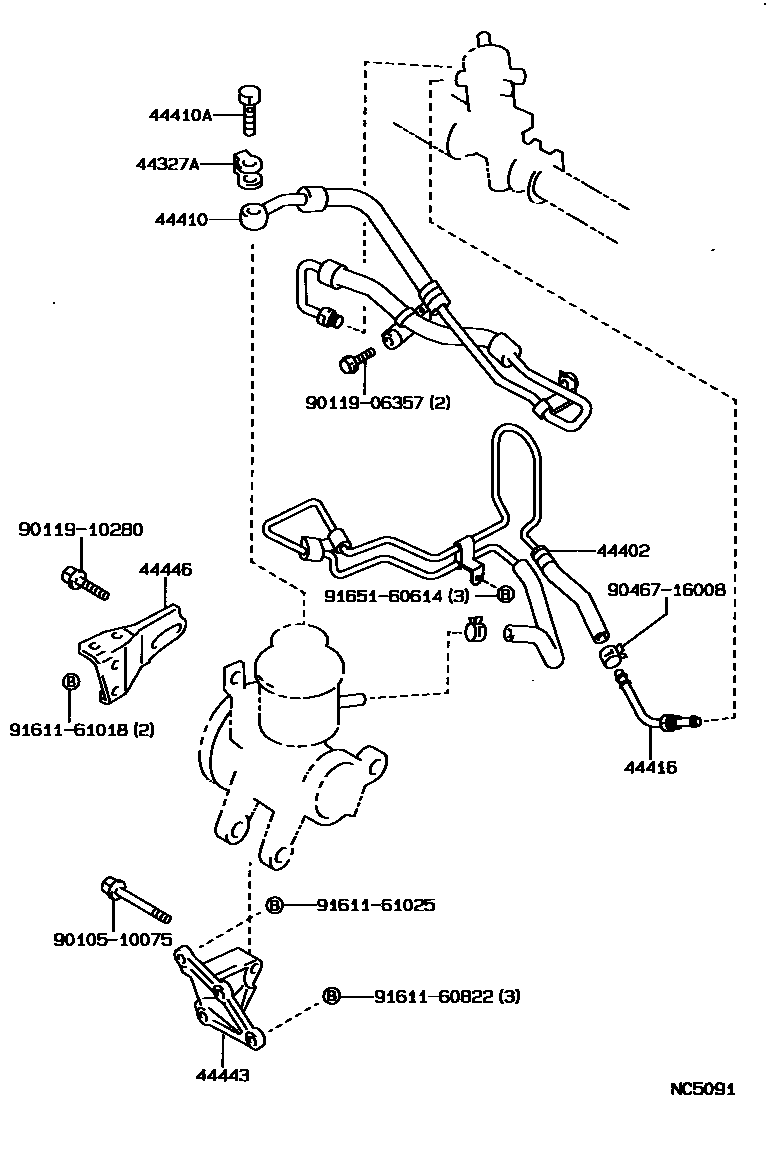

POWER STEERING TUBE

0001 1 0002 1

44327AGASKET, PRESSURE PORT, NO.1

main44327-12010iAE95199009-199508

44402COOLER SUB-ASSY, POWER STEERING OIL, NO.1

main44402-12060iAE95..RHD199009-199508

main44402-12070iAE95..LHD199009-199508

44410TUBE ASSY, PRESSURE FEED

main44410-12220iAE95..RHD199009-199508

main44410-12300iAE95..LHD199009-199508

44410ABOLT, UNION(FOR PRESSURE FEED TUBE)

main90401-16012iAE95199009-199508

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-12170iAE95..RHD199009-199508

44443BRACKET, PUMP

main44443-12050iAE95199009-199508

44446STRUT, ADJUSTING

main44446-12040iAE95199009-199508

9010510075

main90105-10075

9011906357

main90119-06357

9011910280

main90119-10280

9046716008

main90467-16008

9161160822

main91611-60822

9161161018

main91611-61018

9161161025

main91611-61025

9165160614

main91651-60614

15 parts on this diagram · 2 diagrams in section
