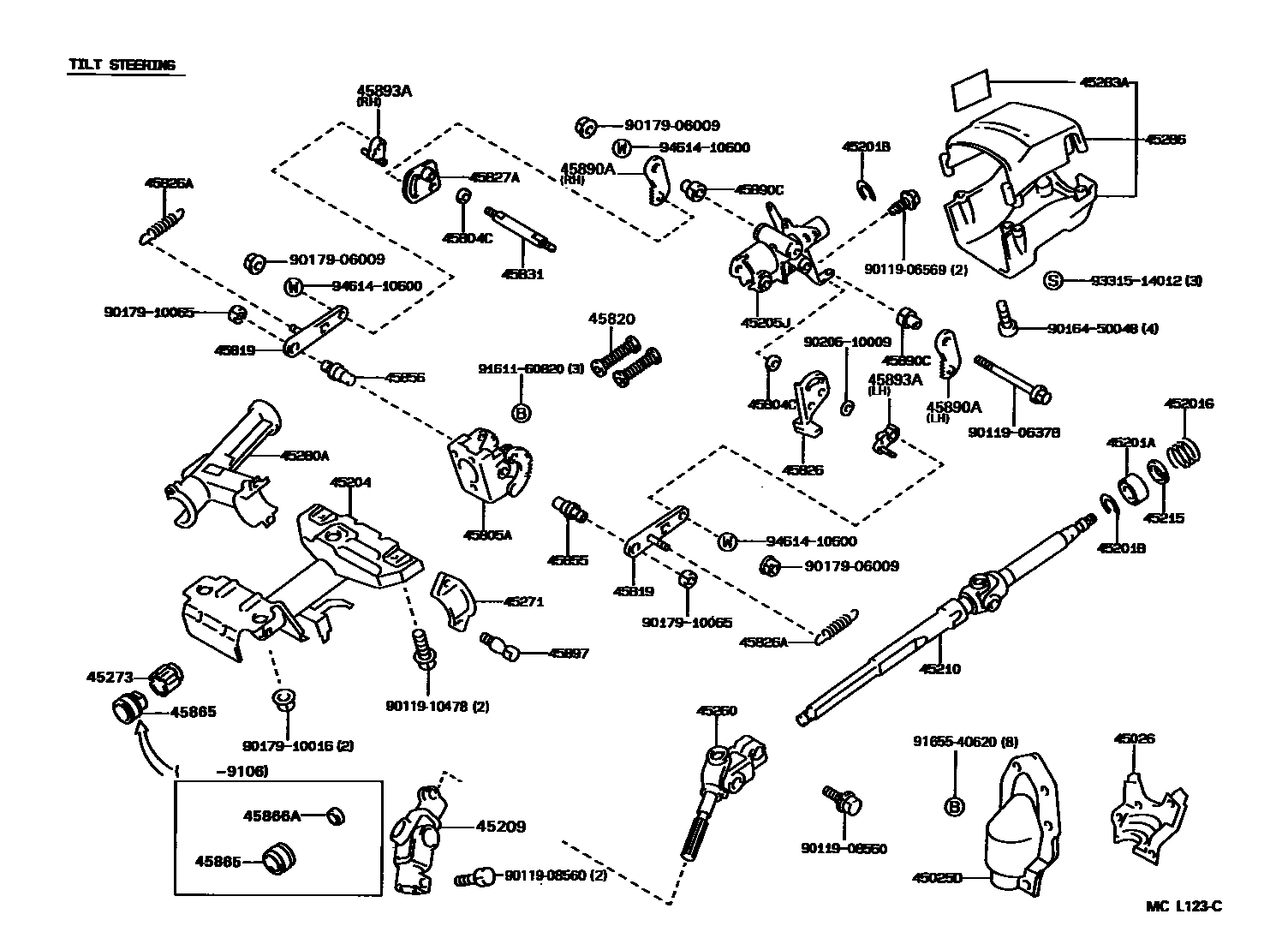

STEERING COLUMN & SHAFT

0001 1 0002 1

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-12170iAE95..RHD199009-199508

main45025-12180iAE95..RHD199009-199508

W(POWER STEERING)

main45025-12190iAE95..LHD199009-199508

main45025-12200iAE95..LHD199009-199508

W(POWER STEERING)

45026COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2

main45026-12010iAE95..RHD199009-199508

main45026-12020iAE95..RHD199009-199508

W(POWER STEERING)

main45026-12030iAE95..LHD199009-199508

main45026-12040iAE95..LHD199009-199508

W(POWER STEERING)

45201ABEARING(FOR STEERING MAIN SHAFT)

main90363-18005iAE95199009-199308

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-17042×2iAE95199009-199304

T=1.20

main90520-17196×2iAE95..XL199009-199304

T=1.35-1.45

main90520-17269iAE95..XL199304-199508

T=1.20,TYPE A

45201GSPRING, COMPRESSION(FOR STEERING MAIN SHAFT)

main90501-40017iAE95199009-199308

45204TUBE ASSY, STEERING COLUMN, LOWER

main45204-12092iAE95..LHD;AE95..ARL199308-199505

main45204-12093iAE95..LHD;AE95..ARL199505-199508

45205JTUBE SUB-ASSY, STEERING COLUMN, UPPER

main45205-12251iAE95..RHD199009-199308

main45205-12261iAE95..LHD199009-199508

45209YOKE SUB-ASSY, STEERING SLIDING

main45209-12050iAE95..LHD;AE95..XL..ARL; AE95..SR5;AE95..RHD..GEN199009-199508

W(POWER STEERING)

main45209-32010iAE95199009-199508

45210SHAFT ASSY, STEERING MAIN

main45210-12300iAE95..RHD..GEN199009-199307

main45210-12310iAE95..XL..ARL199009-199508

main45210-12320iAE95..RHD..GEN199009-199508

W(POWER STEERING)

main45210-12340iAE95..LHD199009-199307

main45210-12400iAE95..LHD;AE95..XL..ARL199308-199508

W(TILT STEERING)

main45210-12420iAE95..RHD..GEN199307-199508

main45210-12490iAE95..LHD199307-199508

45215COLLAR, MAIN SHAFT BEARING THRUST

main45215-12010iAE95199009-199308

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-12150iAE95..RHD..GEN199009-199307

W(TILT STEERING)

main45260-12160iAE95..SR5; AE95..XL..ARL199009-199508

W(TILT STEERING)

main45260-12170iAE95..RHD..GEN199009-199308

W(TILT STEERING & POWER STEERING)

main45260-12180iAE95..SR5; AE95..XL..ARL199009-199508

W(POWER STEERING); W(TILT STEERING & POWER STEERING)

main45260-12190iAE95..LHD199009-199307

W(TILT STEERING)

main45260-12210iAE95..LHD199009-199508

W(TILT STEERING & POWER STEERING)

main45260-12250iAE95..RHD..GEN199307-199308

W(TILT STEERING)

main45260-12360iAE95..LHD199307-199508

W(TILT STEERING)

45271CLAMP, STEERING COLUMN, UPPER

main45271-12050iAE95..XL199009-199508

main45271-12060iAE95..SR5199009-199508

main45271-12080iAE95..RHD..GEN199104-199302

W(TILT STEERING & POWER STEERING)

45273BUSH, STEERING MAIN SHAFT

main45273-16010iAE95..XL199009-199308

main45273-20030iAE95..XL199308-199508

main45273-20040iAE95..LHD;AE95..XL..ARL; AE95..SR5199308-199508

W(TILT STEERING)

main45273-22020iAE95..SR5; AE95..XL199009-199308

W(TILT STEERING)

45280ABRACKET ASSY, STEERING COLUMN, UPPER

main45280-12110iAE95..XL199009-199508

main45280-12130iAE95..LHD;AE95..XL..ARL199308-199508

W(TILT STEERING)

45283APLATE, BEAM CHANGE & TURN SIGNAL CAUTION

main45283-22010iAE95..RHD199009-199508

45286COVER, STEERING COLUMN

main45286-12940-03iAE95..RHD..XL199009-199508

SHADOW GRAY,TRIM1#

main45286-12940-04iAE95..RHD..XL199009-199308

DARK BLUE,TRIM8#

main45286-12941-03iAE95..LHD199009-199508

SHADOW GRAY,TRIM1#

main45286-12941-04iAE95..LHD199009-199508

DARK BLUE,TRIM8#

main45286-12942-03iAE95..SR5199009-199508

SHADOW GRAY,TRIM1#

main45286-12942-04iAE95..RHD..XL; AE95..SR5199009-199308

DARK BLUE,TRIM8#; W(TILT STEERING),DARK BLUE,TRIM8#

main45286-12943-03iAE95..LHD199009-199508

W(TILT STEERING),SHADOW GRAY,TRIM1#

main45286-12943-04iAE95..LHD199009-199508

W(TILT STEERING),DARK BLUE,TRIM8#

45804CWASHER, PLATE(FOR STEERING TILT LEVER)

main90201-10283×2iAE95199009-199308

45805ASUPPORT SUB-ASSY, TILT STEERING

main45805-12010iAE95199009-199308

45819RETAINER, TILT LEVER

main45819-12010×2iAE95199009-199106

main45819-12020×2iAE95199106-199308

45820SPRING ASSY, TILT STEERING SUPPORT

main45820-12010×2iAE95199009-199301

main45820-12020iAE95199301-199308

45826LEVER, STEERING TILT

main45826-12021iAE95199009-199308

45826ASPRING, TENSION(FOR STEERING TILT LEVER)

main90507-12029×2iAE95199009-199308

45827ALEVER, STEERING TILT SUB

main45827-12011iAE95199009-199106

main45827-12020iAE95199106-199308

45831BOLT, TILT LEVER LOCK, NO.1

main45831-12010iAE95..LHD;AE95..ARL199308-199508

45855BOLT, TILT STEERING, NO.1

main45855-12010iAE95199009-199106

OD=9.989-9.998

main45855-12020iAE95199009-199106

OD=9.998-10.007

main45855-12030iAE95..LHD;AE95..ARL199308-199508

OD=9.989-9.998

main45855-12040iAE95199106-199308

OD=9.998-10.007

45856BOLT, TILT STEERING, NO.2

main45856-12010iAE95199009-199106

OD=9.989-9.998

main45856-12020iAE95199009-199106

OD=9.998-10.007

main45856-12030iAE95..LHD;AE95..ARL199308-199508

OD=9.989-9.998

main45856-12040iAE95199106-199308

OD=9.998-10.007

45865COLLAR, STEERING MAIN SHAFT

main45865-12050iAE95199009-199106

main45865-12060iAE95199106-199308

45866ASTOPPER, STEERING MAIN SHAFT BUSH

main45866-12010iAE95199009-199106

45890APAWL ASSY, TILT STEERING

main45890-12021iAE95199009-199308

LH

main45890-12031iAE95199009-199308

RH

45890CCOLLAR(FOR TILT STEERING PAWL)

main90389-07004iAE95..LHD;AE95..ARL199308-199508

MARK 0

main90389-07005iAE95199009-199308

MARK 2

main90389-07006iAE95199009-199308

MARK 3

main90389-07007iAE95199009-199308

MARK 4

main90389-07008iAE95..LHD;AE95..ARL199308-199508

MARK A

main90389-07009iAE95..LHD;AE95..ARL199308-199508

MARK 6

main90389-07010iAE95199009-199308

MARK 7

main90389-07011iAE95199009-199308

MARK 8

45893ASTOPPER, TILT STEERING PAWL

main45893-12021iAE95..LHD;AE95..ARL199308-199508

MARK A,LH

main45893-12071iAE95199009-199308

MARK F OR 11,RH

main45893-12120iAE95199009-199308

MARK B,LH

main45893-12130iAE95199009-199308

MARK C,LH

main45893-12140iAE95199009-199308

MARK D,LH

main45893-12150iAE95..LHD;AE95..ARL199308-199508

MARK E,LH

main45893-12160iAE95199009-199308

MARK G OR 12,RH

main45893-12170iAE95199009-199308

MARK H OR 13,RH

main45893-12180iAE95199009-199308

MARK I OR 14,RH

main45893-12190iAE95199009-199308

MARK J OR 15,RH

45897BOLT, STEERING LOCK SET

main45897-12020×2iAE95199009-199508

9011906378

main90119-06378

9011906569

main90119-06569

9011908560

main90119-08560

9011910478

main90119-10478

9016450048

main90164-50048

9017906009

main90179-06009

9017910016

main90179-10016

9017910065

main90179-10065

9020610009

main90206-10009

9161160820

main91611-60820

9165540620

main91655-40620

9331514012

main93315-14012

9461410600

main94614-10600

45 parts on this diagram · 2 diagrams in section
