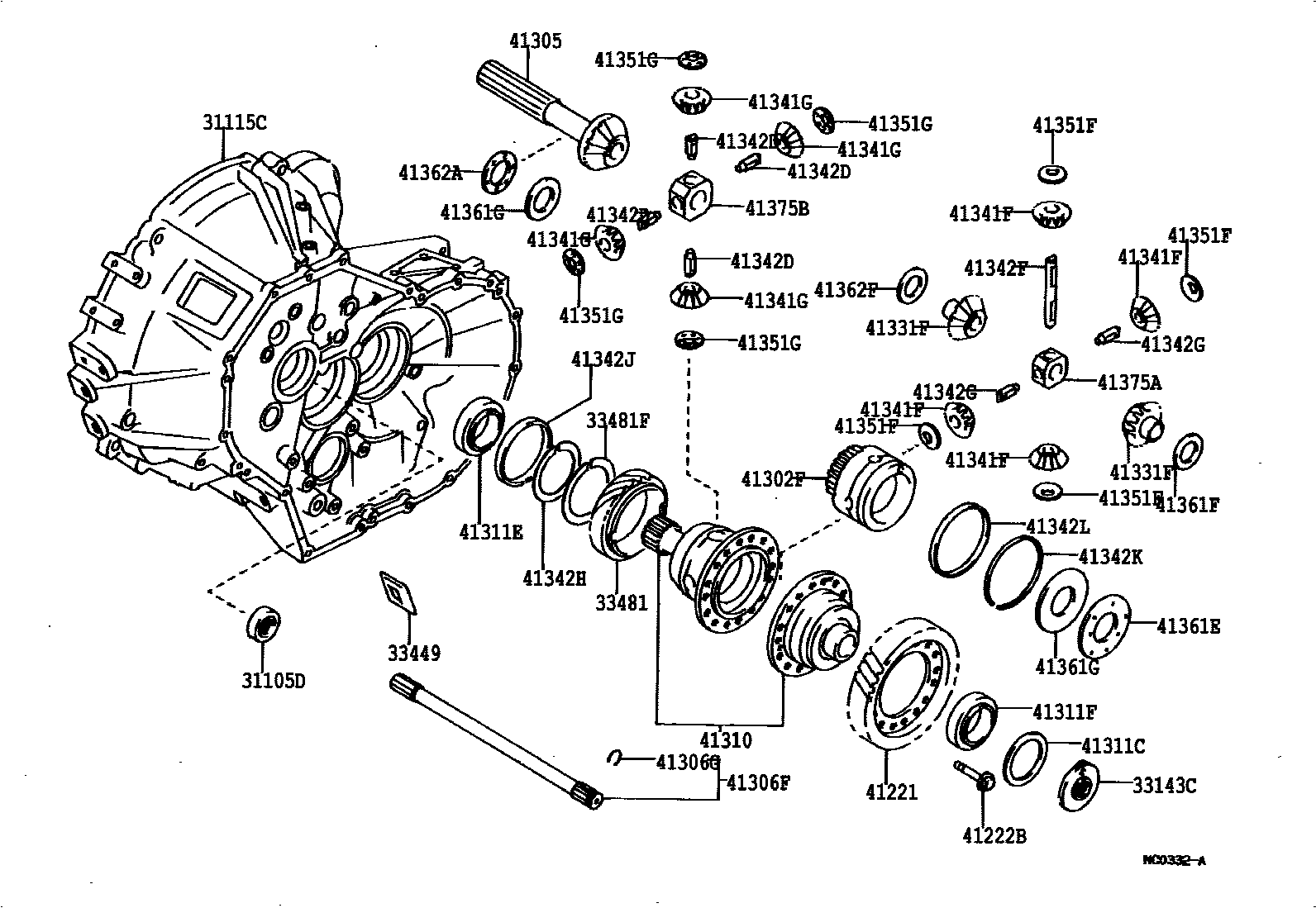

FRONT AXLE HOUSING & DIFFERENTIAL
31105DSEAL, OIL, NO.1(FOR FRONT TRANSAXLE CASE)
sub90311-30017
31115CCASE, FRONT TRANSAXLE(MTM)
sub31115-12071
33143CBAFFLE, FRONT DIFFERENTIAL OIL
33449MAGNET, TRANSMISSION
33481GEAR, SPEEDOMETER DRIVE (MTM)
33481FRING, SHAFT SNAP (FOR MTM SPEEDOMETER DRIVE GEAR)
41221GEAR, FRONT DIFFERENTIAL RING
41222BBOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)
41302FCASE SUB-ASSY, FRONT DIFFERENTIAL
41305GEAR SUB-ASSY, DIFFERENTIAL SIDE
41306FSHAFT SUB-ASSY, DIFFERENTIAL SIDE GEAR INTER
41306GRING, HOLE SNAP (FOR DIFFERENTIAL SIDE GEAR INTER SHAFT)
41310CASE ASSY, DIFFERENTIAL
41311CASE, FRONT DIFFERENTIAL
41311CSHIM (FOR FRONT DIFFERENTIAL CASE REAR)
T=2.00,MARK 0
T=2.05,MARK 1
T=2.10,MARK 2
T=2.15,MARK 3
T=2.20,MARK 4
T=2.25,MARK 5
T=2.30,MARK 6
T=2.35,MARK 7
T=2.40,MARK 8
T=2.45,MARK 9
T=2.50,MARK A
T=2.55,MARK B
T=2.60,MARK C
T=2.65,MARK D
T=2.70,MARK E
T=2.75,MARK F
T=2.80,MARK G
T=2.85,MARK H
T=2.00,MARK 51
T=2.15,MARK 54
T=2.30,MARK 57
T=2.45,MARK 60
T=2.50,MARK 61
T=2.55,MARK 62
T=2.60,MARK 63
T=2.65,MARK 64
T=2.70,MARK 65
T=2.75,MARK 66
T=2.80,MARK 67
T=2.85,MARK 68
T=2.03,MARK B
T=2.06,MARK C
T=2.09,MARK D
T=2.12,MARK E
T=2.16,MARK G
T=2.21,MARK H
T=2.24,MARK J
T=2.27,MARK K
T=2.33,MARK M
T=2.36,MARK N
T=2.39,MARK P
T=2.42,MARK Q
41311EBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FRONT)
41311FBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE REAR)
41331FGEAR, FRONT DIFFERENTIAL SIDE
41341FPINION, FRONT DIFFERENTIAL
41341GPINION, CENTER DIFFERENTIAL
41342DSHAFT, CENTER DIFFERENTIAL PINION
41342FSHAFT, FRONT DIFFERENTIAL PINION, NO.1
41342GSHAFT, FRONT DIFFERENTIAL PINION, NO.2
41342HRING, SHAFT SNAP (FOR CENTER DIFFERENTIAL PINION SHAFT)
41342JSPACER (FOR CENTER DIFFERENTIAL PINION SHAFT)
41342KRING, SHAFT SNAP (FOR FRONT DIFFERENTIAL PINION SHAFT)
41342LSPACER (FOR DIFFERENTIAL PINION SHAFT)
41351FWASHER, FRONT DIFFERENTIAL PINION THRUST
41351GWASHER, CENTER DIFFERENTIAL PINION THRUST
41361EWASHER, CENTER DIFFERENTIAL SIDE GEAR THRUST, NO.1
T=0.80,MARK O
T=0.85,MARK 1
T=0.90,MARK 2
T=0.95,MARK 3
T=1.00,MARK 4
T=1.05,MARK 5
T=1.10,MARK 6
T=1.15,MARK 7
T=1.20,MARK 8
T=1.25,MARK 9
T=1.30,MARK A
T=1.35,MARK B
T=1.40,MARK C
41361FWASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
T=0.95,MARK A
T=1.00,MARK B
T=1.05,MARK C
T=1.10,MARK D
T=1.15,MARK E
T=1.20,MARK F
T=1.25,MARK G
T=1.30,MARK H
T=1.35,MARK J
T=1.40,MARK K
41361GWASHER, CONICAL SPRING(FOR CENTER DIFFERENTIAL SIDE GEAR)
LH
RH
41362AWASHER, CENTER DIFFERENTIAL SIDE GEAR THRUST, NO.2
T=0.80
T=0.85
T=0.90
T=0.95
T=1.00
T=1.05
T=1.10
T=1.15
T=1.20
T=1.25
T=1.30
T=1.35
T=1.40
41362FWASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.2
T=1.00,MARK B
T=1.05,MARK C
T=1.10,MARK D
T=1.15,MARK E
T=1.20,MARK F
T=1.25,MARK G
41375AHOLDER, FRONT DIFFERENTIAL PINION SHAFT
36 parts on this diagram · 2 diagrams in section
