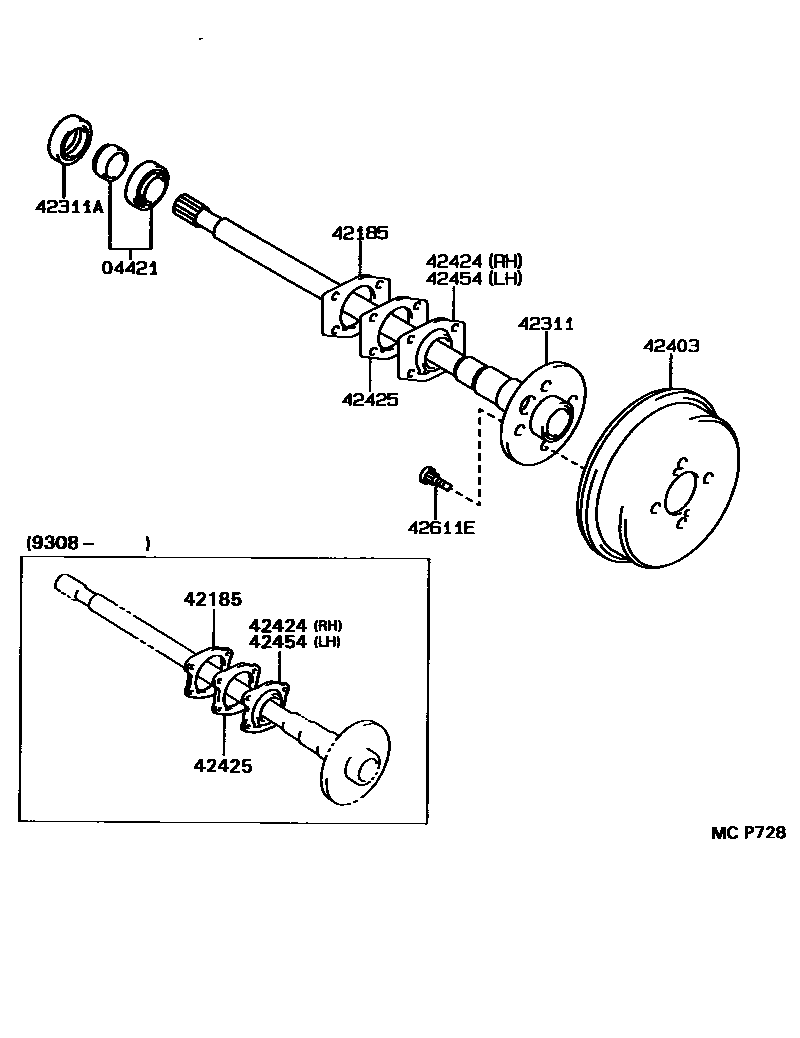

REAR AXLE SHAFT & HUB

04421BEARING KIT, REAR AXLE SHAFT

main04421-12010×2iAE95199009-199308

main04421-12020×2iAE95199308-199508

42185GASKET, REAR AXLE HOUSING END

main42185-12010×2iAE95199009-199308

main42185-14020×2iAE95199308-199508

42311SHAFT, REAR AXLE

main42311-12201×2iAE95199009-199308

main42311-13040×2iAE95199308-199508

42311ASEAL, OIL(FOR REAR AXLE SHAFT)

main90311-42055×2iAE95199009-199308

main90311-52059×2iAE95199308-199508

42403DRUM SUB-ASSY, REAR BRAKE

main42431-16040×2iAE95199009-199109

main42431-16060×2iAE95199109-199508

42424RETAINER, REAR AXLE BEARING, OUTER, RH

main42424-14020iAE95199308-199508

main42424-20010iAE95199009-199308

42425GASKET, REAR AXLE BEARING RETAINER

main42425-14020×2iAE95199308-199508

main42425-20010×2iAE95199009-199308

42454RETAINER, REAR AXLE BEARING, OUTER, LH

main42454-14010iAE95199308-199508

main42454-20010iAE95199009-199308

42611EBOLT, HUB (FOR REAR AXLE)

main90942-02047×8iAE95199009-199508

9 parts on this diagram · 1 diagram in section
