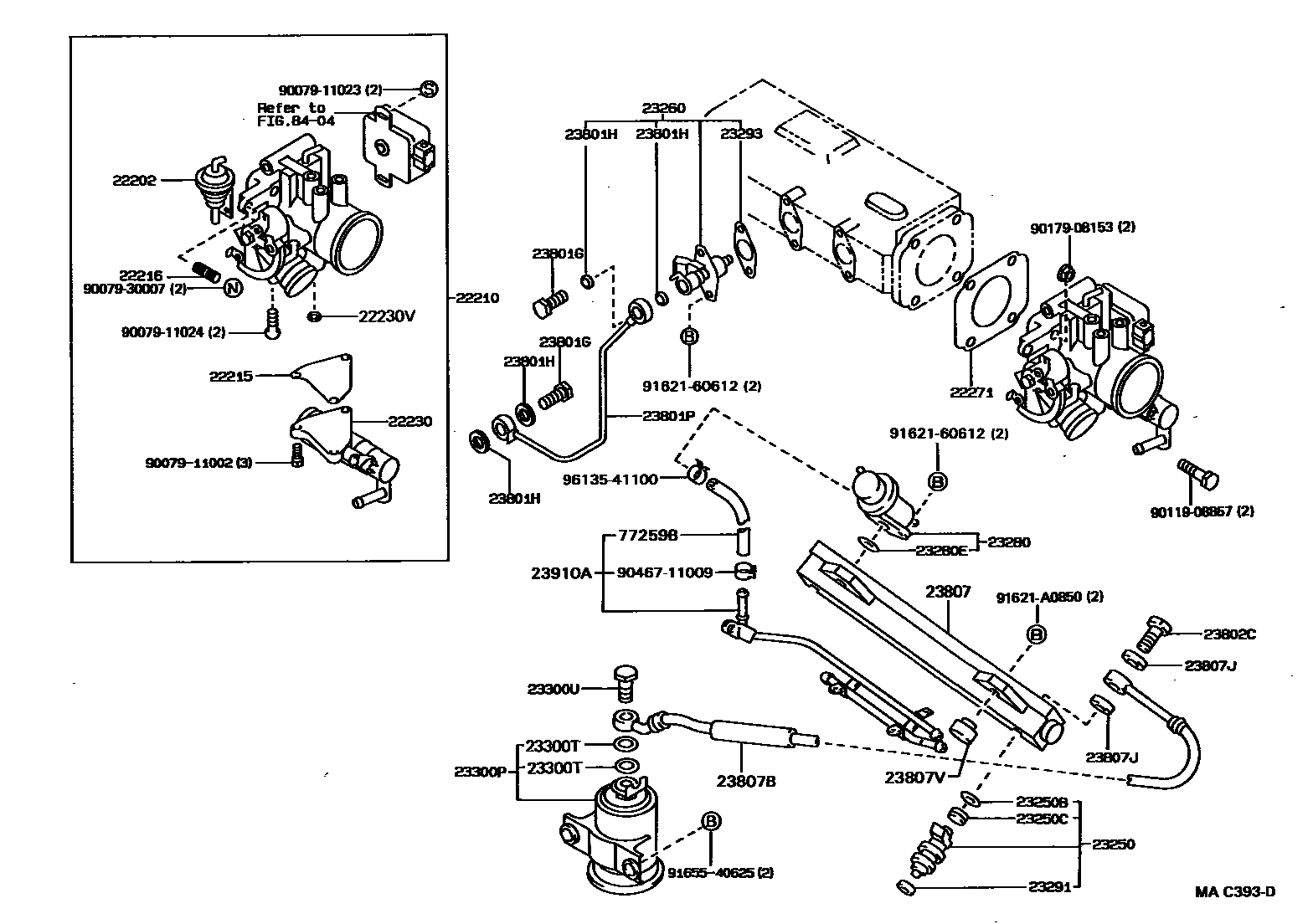

FUEL INJECTION SYSTEM
22202DASH POT SUB-ASSY
22215GASKET, THROTTLE BODY COVER
22216SCREW, DASH POT ADJUSTING
22230VALVE ASSY, AUXILIARY AIR
22230VRING, O(FOR AUXILIARY AIR VALVE)
22271GASKET, THROTTLE BODY
23250INJECTOR ASSY, FUEL
23250BRING, O(FOR FUEL INJECTOR)
23250CGROMMET(FOR FUEL INJECTOR)
23260INJECTOR ASSY, COLD START FUEL
23280REGULATOR ASSY, FUEL PRESSURE
23280ERING, O(FOR FUEL PRESSURE REGULATOR)
23291INSULATOR, INJECTOR VIBRATION
23293GASKET, COLD START INJECTOR
23300PFILTER, FUEL(FOR EFI)
23300TGASKET(FOR FUEL FILTER)
23300UBOLT, UNION(FOR FUEL FILTER)
23801GBOLT, UNION(FOR FUEL PIPE)
23801HGASKET(FOR FUEL PIPE)
23801PPIPE SUB-ASSY, FUEL, NO.1
23802CBOLT, UNION(FOR FUEL PIPE NO.2)
23807PIPE SUB-ASSY, FUEL DELIVERY
sub23807-15011
23807BHOSE, FUEL DELIVERY PIPE
23807JGASKET, PIPE FUEL DELIVARY INLET
23807VSPACER, NO.1(FOR DELIVERY PIPE)
77259BHOSE, FUEL
sub95337-06020
8404
9007911002
main90079-11002
9007911023
main90079-11023
9007911024
main90079-11024
9007930007
main90079-30007
9011908857
main90119-08857
9017908153
main90179-08153
9046711009
main90467-11009
9162160612
main91621-60612
91621A0850
main91621-A0850
9165540625
main91655-40625
9613541100
main96135-41100
40 parts on this diagram · 2 diagrams in section
